PART #
TL77/TP
SPECIFICATIONS
·
Weight capacity is 200 lbs. per leg.
·
Table thickness is 25.40mm [1"] MIN.
·
Table Width is 914.00mm [36"] MIN.
·
Table length is 1828.00mm [72"] MAX.
722.00mm MIN.
[28-13/32")
754.00mm MAX.
[29-11/16"]
2022.08.10
TO
W/LEVELER

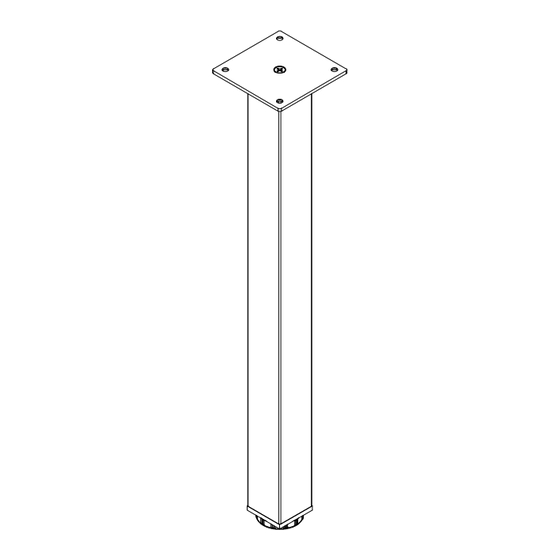

FRONT VIEW
TABLE OF CONTENTS
12.50mm
O.C.
[1/2"]
12.50mm
O.C.
[1/2"]
102.00mm
127.00mm
O.C.
[5"]
[4"]
12.50mm
O.C.
[1/2"]
BOTTOM VIEW
1
. . . . . . . . . . . . . . 1X TL77
. . . . . . . . . . . . . . . . 1X
M8 X 1.25 X 41.00mm
Machine Screw
. . . . . . . . . . . 1X TP/5"SQ
127.00mm [5"]
12.50mm
102.00mm O.C.
O.C.
[4"]
[1/2"]
