Aldor Automotive KIA3PISU Assembly Instructions

Mounting
1. Check the fit of the spoiler on the car.
2. Use sandpaper to remove the paint on the mounting surface of the spoiler, so that the basic material becomes
visible.
3. Thoroughly degrease the mounting surfaces of both spoiler and trunk lid.

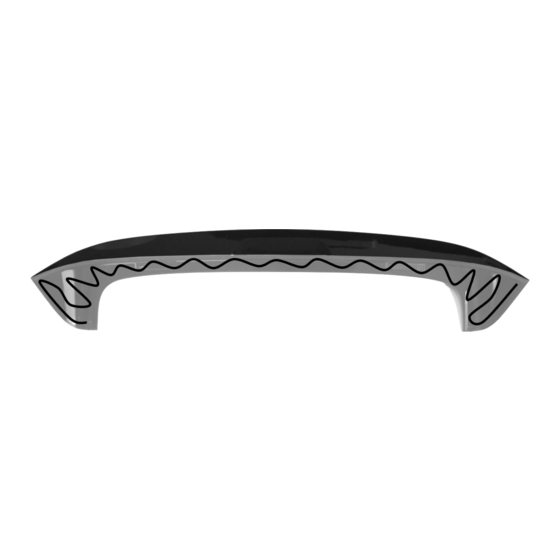

4. Apply the enclosed spoiler glue to the mounting surface of the spoiler (fig. 1).
5. Place the spoiler on the car and secure it during 12 hours with tape (fig. 2a). Any squeezed-out rests of glue
must be removed IMMEDIATELY with degreaser!
6. Apply the transparent protective sticker on the spoiler's rear edge, where the antenna touches the spoiler
when the tailgate is opened (fig. 2b).
ATTENTION:

To ensure an optimal fixation of the glue, the room temperature during mounting and drying should be at least
15°C!

Allow the glue to dry and do not drive the car for 12 hrs. During 24 hrs no mechanical loading should be ap-
plied to the part. Do not wash for 48 hrs.

No warranty acceptance of any damage due to the use of a car wash.
fig. 1
fig. 2
ASSEMBLY INSTRUCTIONS
Kia Picanto JA 2017- roofspoiler
Type : KIA3PISU
Material : ABS
Parts list :
Part
Roofspoiler
Transparent protective sticker
Tube spoilerglue 80 ml
Required tools:
- sandpaper
- degreaser
- tape
b
sticker
a
HYU1I2SU-NL-ENG-D-F.doc-D / Rev. 0
Van Hilststraat 4
5145 RL Waalwijk
The Netherlands
tel: +31-416-344 778
fax: +31-416-344 984
www.aldorautomotive.com
Qty
1
1
1
tape
