Aldor Automotive FOR2TRSU Assembly Manual

ATTENTION!

To obtain an optimal fixation the room temperature at mounting should be at least 15°C!

Mounting

1. Check the fit of the spoiler on the car.
2. Use sandpaper to roughen the mounting surface of the spoiler, so that the basic material becomes visible.
3. Thoroughly clean the mounting surfaces of both spoiler and tailgate with alcohol.
4. Apply the enclosed spoiler glue to the mounting surface of the spoiler (fig. 1).
5. Place the spoiler on the tailgate and put it in the correct position.
6. Slightly open the tailgate and temporarily fix the spoiler with tape. Pull the tape from the spoiler around the
edges of the tailgate (fig. 2), so that eventual gaps will be minimised. Any squeezed-out rests of glue must be
removed immediately with alcohol!
ATTENTION!

Allow the glue to dry for 12 hrs. Do not use the car during this period. During 24 hrs no mechanical loading
should be applied to the part. Do not wash for 48 hrs.

No warranty acceptance of any damage due to the use of a car wash.
fig. 1
fig. 2

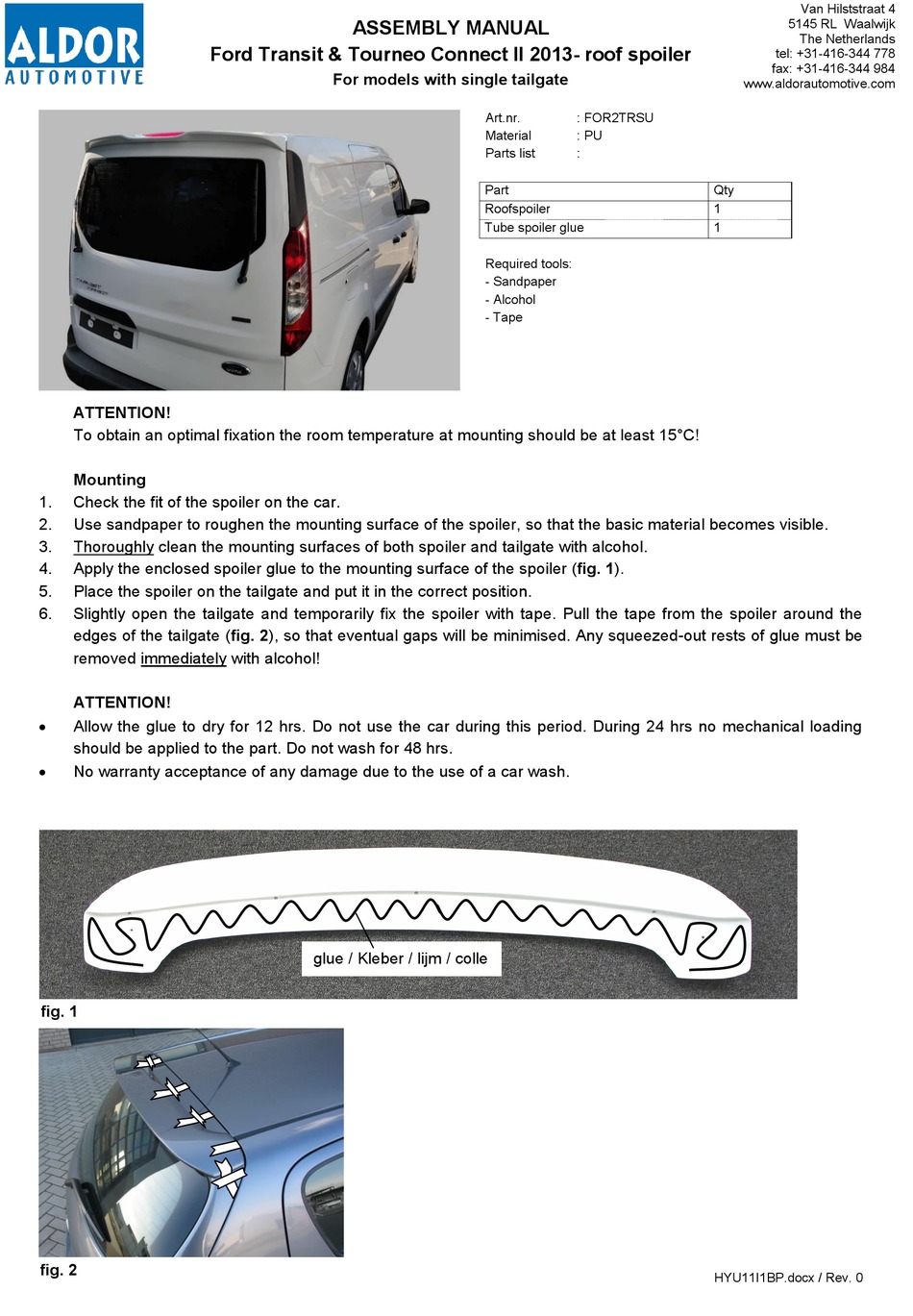

ASSEMBLY MANUAL
Ford Transit & Tourneo Connect II 2013- roof spoiler
For models with single tailgate
glue / Kleber / lijm / colle
Art.nr. : FOR2TRSU
Material : PU

Parts list

:
Part
Roofspoiler
Tube spoiler glue

Required tools:

- Sandpaper
- Alcohol
- Tape
Van Hilststraat 4
5145 RL Waalwijk
The Netherlands
tel: +31-416-344 778
fax: +31-416-344 984
www.aldorautomotive.com
Qty
1
1
HYU11I1BP.docx / Rev. 0
