DeLOCK 47111 User Manual

DeLOCK 47111 User Manual

3.5″ mobile rack for 4 x m.2 nvme ssd

Advertisement

Quick Links

Declaration of conformity
Products with a CE symbol fulfill the EMC directive (2014/30/EU) and
RoHS directive (2011/65/EU+2015/863+2017/2102), which were released by the
EU-comission.
The declaration of conformity can be downloaded here:
https://www.delock.de/produkte/G_47111/merkmale.html
WEEE-notice
The WEEE (Waste Electrical and Electronic Equipment)-directive, which became
effective as European law on February 13th 2003, resulted in an all out change
in the disposal of disused electro devices. The primarily purpose of this directive
is the avoidance of electrical waste (WEEE) and at the same time the support of
recycling and other forms of recycling in order to reduce waste. The WEEE-logo
on the device and the package indicates that the device should not be disposed
in the normal household garbage. You are responsible for taking the disused
electrical and electronical devices to a respective collecting point. A separated
collection and reasonable recycling of your electrical waste helps handling the
natural resources more economical. Furthermore recycling of electrical waste is
a contribution to keep the environment and thus also the health of men. Further
information about disposal of electrical and electronical waste, recycling and
the collection points are available in local organizations, waste management
enterprises, in specialized trade and the producer of the device.
Cet appareil et
ses accessoires
se recyclent
Points de collecte sur www.quefairedemesdechets.fr
EU Import: Tragant Handels- und Beteiligungs GmbH
Beeskowdamm 13/15, 14167 Berlin, Germany
Support Delock
If you have further questions, please contact our customer support
support@delock.de
You can find current product information on our homepage: www.delock.com
Final clause
Information and data contained in this manual are subject to change without notice
in advance. Errors and misprints excepted.
Copyright
No part of this user's manual may be reproduced, or transmitted for any purpose,
regardless in which way or by which means, electronically or mechanically, without
explicit written approval of Delock.
Edition: 11/2023
User manual
Mode d'emploi
Uživatelská příručka
Manuale utente
Manual de utilizare
Korisnički priručnik

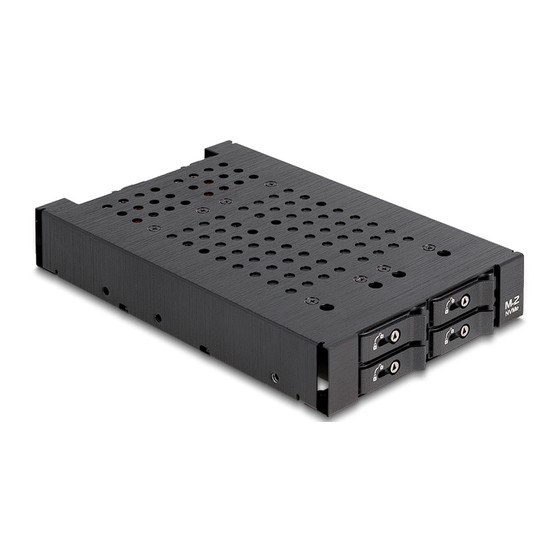

3.5" Mobile Rack
for 4 x M.2 NVMe SSD
English
Description
This solid metal mobile rack by Delock can be installed into a 3.5" bay of a PC and
provides two M.2 slots in 2280, 2260, 2242 or 2230 format.
Specification
• Connectors:
Mobile Rack: internal: 4 x M.2 key M slot
external: 4 x Slim SAS SFF-8654 4i female
4 x 4 pin Floppy male
4 x 2 pin pin header for fan
M.2 tray:
1 x M.2 key M male
1 x M.2 key M slot
• Compatible to PCI Express V4.0
• Interface: PCIe / NVMe
• Supports M.2 modules in format 2280, 2260, 2242 and 2230 with key M or key
B+M based on PCIe
• Maximum height of the components on the module: 1.5 mm, application of
double-sided assembled modules supported
• 4 x LED indicator
• Bootable, ex UEFI version 2.3.1
• M.2 tray made of metal
• Supports NVM Express (NVMe), Supports S.M.A.R.T.
• Key lock
• Dimensions (LxWxH): ca. 159 x 100 x 25 mm
System requirements
• Linux Kernel 6.2 or above
• Windows 10/10-64/11
• Windows Server 2022
• PC with one free 3.5" bay
• A free OCuLink port for each M.2 slot
• Power supply with a free SATA power connector
Package content
• 3.5" Mobile Rack with 4 x M.2 tray
• 2 x cable SATA 15 pin to 2 x 4 pin Floppy female, length ca. 12 cm
• 2 x keys
• 4 x screw I 6.0 x 5.0 mm, head 8.0 mm
• 4 x screw IM 2.0 x 4.0 mm, head 5.0 mm
• User manual
Bedienungsanleitung
Manual del usuario
Instrukcja obsługi
Bruksanvisning
Használati utasítás
Εγχειρίδιο χρήστη
Product-No: 47111
User manual no: 47111-a
www.delock.com
