DeLOCK SFF-8612 User Manual

DeLOCK SFF-8612 User Manual

Pci express x4 card to 1 x internal oculink

Advertisement

Quick Links

Declaration of conformity
Products with a CE symbol fulfill the EMC directive (2014/30/EU) and
RoHS directive (2011/65/EU+2015/863+2017/2102), which were released by the
EU-comission.
The declaration of conformity can be downloaded here:
https://www.delock.de/produkte/G_90307/merkmale.html
WEEE-notice
The WEEE (Waste Electrical and Electronic Equipment)-directive, which became
effective as European law on February 13th 2003, resulted in an all out change
in the disposal of disused electro devices. The primarily purpose of this directive
is the avoidance of electrical waste (WEEE) and at the same time the support of
recycling and other forms of recycling in order to reduce waste. The WEEE-logo on
the device and the package indicates that the device should not be disposed in the
normal household garbage. You are responsible for taking the disused electrical
and electronical devices to a respective collecting point. A separated collection and
reasonable recycling of your electrical waste helps handling the natural resources
more economical. Furthermore recycling of electrical waste is a contribution to
keep the environment and thus also the health of men. Further information about
disposal of electrical and electronical waste, recycling and the collection points
are available in local organizations, waste management enterprises, in specialized
trade and the producer of the device.
Cet appareil
se recycle
Points de collecte sur www.quefairedemesdechets.fr
EU Import: Tragant Handels- und Beteiligungs GmbH
Beeskowdamm 13/15, 14167 Berlin, Germany
Support Delock
If you have further questions, please contact our customer support
support@delock.de
You can find current product information on our homepage: www.delock.com
Final clause
Information and data contained in this manual are subject to change without notice
in advance. Errors and misprints excepted.
Copyright
No part of this user's manual may be reproduced, or transmitted for any purpose,
regardless in which way or by which means, electronically or mechanically, without
explicit written approval of Delock.
Edition: 08/2024
User manual
Mode d'emploi
Uživatelská příručka
Manuale utente
Manual de utilizare
Korisnički priručnik

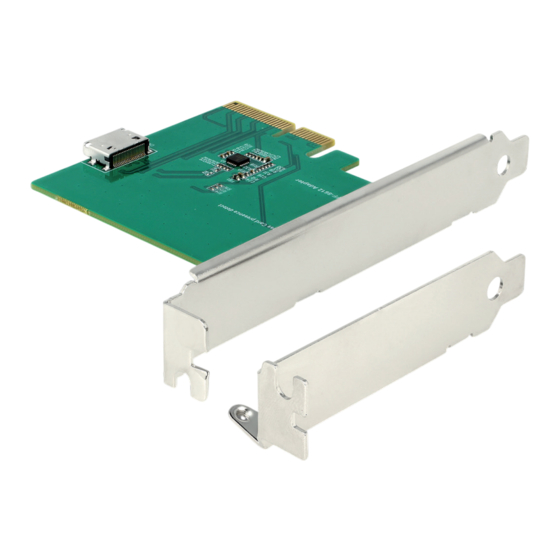

PCI Express x4 Card to
1 x internal OCuLink SFF-8612
English
Description
This PCI Express card by Delock expands the PC by one SFF-8612 interface. It
can be connected e.g. one SSD by using an optional cable. The card transmits
PCI Express signals using the NVMe protocol.
Technical details
• Connectors:
1 x OCuLink SFF-8612 female
1 x PCI Express x4, V3.0
• Data transfer rate up to 32 Gbps
• 1 x LED for attendance
• Bootable, ex UEFI version 2.3.1
• Supports NVM Express (NVMe) 1.2
Bedienungsanleitung
Manual del usuario
Instrukcja obsługi
Bruksanvisning
Használati utasítás
Εγχειρίδιο χρήστη
Product-No: 90307
User manual no: 90307-a
www.delock.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the SFF-8612 and is the answer not in the manual?

Questions and answers

Summary of Contents for DeLOCK SFF-8612

  • Page 1 Description You can find current product information on our homepage: www.delock.com This PCI Express card by Delock expands the PC by one SFF-8612 interface. It can be connected e.g. one SSD by using an optional cable. The card transmits Final clause PCI Express signals using the NVMe protocol.
  • Page 2 English Français Configuration système requise System requirements • Linux Kernel 4.3 ou version ultérieure • Linux Kernel 4.3 or above • Windows 7/7-64/8.1/8.1-64/10/10-64/11 • Windows 7/7-64/8.1/8.1-64/10/10-64/11 • PC avec un slot PCI Express x4 / x8 / x16 / x32 libre •...
  • Page 3 České Italiano Systémové požadavky Requisiti di sistema • Linux Kernel 4.3 nebo vyšší • Linux Kernel 4.3 o superiore • Windows 7/7-64/8.1/8.1-64/10/10-64/11 • Windows 7/7-64/8.1/8.1-64/10/10-64/11 • PC s jedním volným PCI Express x4 / x8 / x16 / x32 slotem •...
  • Page 4 Română Hrvatski Cerinte de sistem Preduvjeti sustava • Linux Kernel 4.3 sau superior • Linux Kernel 4.3 ili noviji • Windows 7/7-64/8.1/8.1-64/10/10-64/11 • Windows 7/7-64/8.1/8.1-64/10/10-64/11 • PC cu slot PCI Express x4 / x8 / x16 / x32 liber • Računalo s jednim slobodnim PCI Express x4 / x8 / x16 / x32 utorom Pachetul contine Sadržaj pakiranja •...
