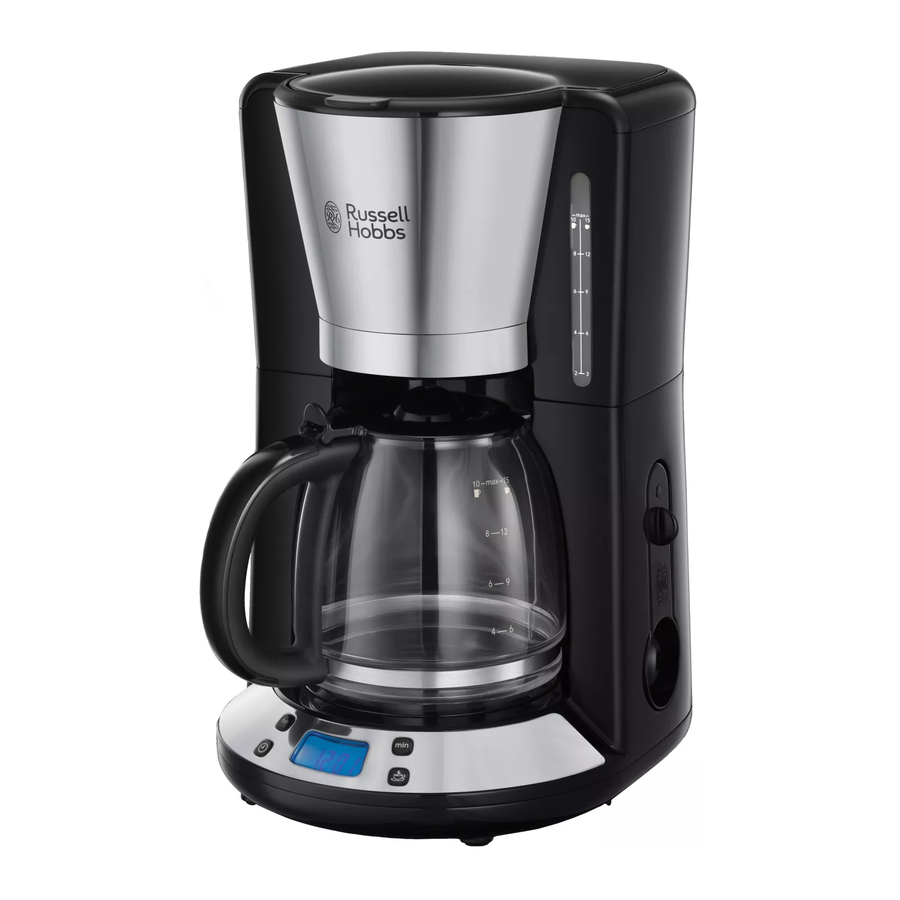

Russell Hobbs 24033-56 - Coffee Maker Manual

PARTS

1. Lid
2. Water reservoir
3. Paper filter #4 (not supplied)
4. Filter holder
5. Water gauge
6. Hot plate
7. Carafe
8. Scoop

Dishwasher - top rack

BEFORE USING FOR THE FIRST TIME

Fill the reservoir to the max mark, and run the appliance without coffee

FILLING

1. Remove the carafe from the hotplate.
2. Open the lid.
3. Fill the reservoir with the exact amount of water required. Note that the brewing process will use all of the water that you put in the reservoir.
4. Make sure that the filter holder is pressed down all the way into position. It will click when correctly installed.
5. Put a #4 paper filter into the filter holder.
6. The reservoir is calibrated to give 10 large cups (at 125ml per cup) and 15 small cups (at 83ml per cup). For each large cup, add 6g of ground filter coffee and for each small cup add 4g.
7. Close the lid.
8. Replace the carafe on the hotplate.

SET THE CLOCK

It isn't neccessary to set the clock to use your coffee maker but you will need to set it if you want to use the timer functions.

1. Put the plug into the power socket.
2. Use the hr and min buttons to set the correct time in 24 hour format.

• The clock will retain its settings until the coffee maker is unplugged.
• To change the time, press the button. The time will flash. Use the hr and min buttons to set the new time. If you don't press either the hr or min buttons within 3 seconds, the coffee maker will revert to normal, and the current time will show.

MAKING COFFEE

1. Press the button – the icon will appear on the display.
2. Shortly afterwards, coffee will start to drip into the carafe.
3. If you want to stop the coffee maker while it's brewing, press the button.
4. Once brewed, the hotplate will keep the carafe warm for up to 40 minutes.

USING THE TIMER

Note: Make sure the clock is set to the correct time. Use the h and min buttons.

1. Set the timer to the time you want to start brewing.
   1. Press and hold the button until the icon flashes on the display.
   2. Use the h and min buttons to set the time you want brewing to start.

If you don't press either the hr or min buttons within 3 seconds, the coffee maker will revert to normal, and the current time will show. Press the button to start again.

2. When the time is programmed, press the button. The icon will appear on the display. Your coffee maker is now set to make coffee at the selected time.

• If you want to check the program time press the button. The programmed time will show for 3 seconds and then return to the time of day.
• If you want to cancel the timer before brewing has started, press the button.
• If you want to stop the coffee maker while it's brewing, press the button.

KEEP WARM/AUTO SHUT-OFF

1. Your coffee maker will keep the coffee warm for about 40 minutes.
2. 40 minutes after brewing your coffee maker will shut down and the time of day will be displayed.
3. To wake the appliance, press the min button.

A QUICK CUP

If you want a quick cup of coffee before the brewing cycle has finished:

1. You can remove the carafe at any time. The non-drip valve will prevent coffee dripping on to the hotplate.
2. To prevent the filter holder overflowing, replace the carafe on the hotplate within about 20 seconds.
3. When you replace the carafe on the hotplate the non-drip valve opens to let any remaining coffee through.

CARE AND MAINTENANCE

1. Unplug the appliance and let it cool.
2. Tip the contents of the filter holder into the bin.
3. Wipe all surfaces with a clean damp cloth.
4. Press the lever at the rear of the carafe lid, above the handle, to open the carafe lid.
5. Hand wash the carafe and filter holder.
6. Replace the filter holder. Make sure that the filter holder is pressed down all the way into position. It will click when correctly installed.
7. Close the lid, and press down to lock it.

You may wash these parts in the top rack of a dishwasher

IMPORTANT SAFEGUARDS

Read the instructions, keep them safe, pass them on if you pass the appliance on. Remove all packaging before use.

Follow basic safety precautions, including:
This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been supervised/instructed and understand the hazards involved.
Children shall not play with the appliance.
Cleaning and user maintenance shall not be done by children unless they are older than 8 and supervised.
Keep the appliance and cable out of reach of children under 8 years.
Misuse of the appliance may cause injury.
The surfaces of the appliance will get hot. Residual heat will keep the surfaces hot after use.
Do not use this appliance near bathtubs, showers, basins or other vessels containing water.
If the cable is damaged, it must be replaced by the manufacturer, its service agent, or someone similarly qualified, to avoid hazard.

• Sit the appliance on a stable, level, heat-resistant surface.
• Keep the appliance and cable away from the edges of worktops.
• Don't use accessories or attachments other than those we supply.
• Don't use the appliance for any purpose other than those described in these instructions.
• Don't use the appliance if it's damaged or malfunctions.

HOUSEHOLD USE ONLY

www.russellhobbs.com
