Russell Hobbs 24610 - Jug Blender Manual

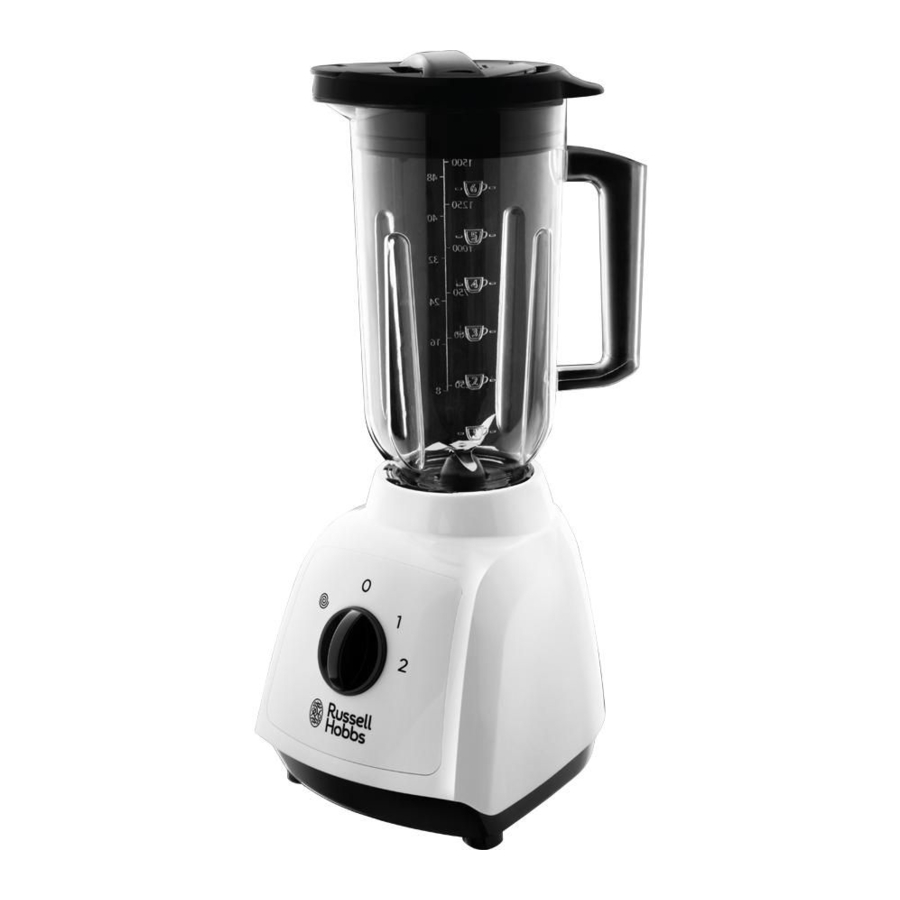

PARTS

Speed control
Motor unit
Blade unit
Seal
Jug
Lid
Pouring flap
Ingredient flap

BEFORE USING FOR THE FIRST TIME

Turn to "CARE AND MAINTENANCE" and clean the appliance, to remove manufacturing dust, etc.

PREPARATION

In use, treat the jug and blade unit as a single unit.

Sit the motor unit on a stable, level surface.
Check that the speed control is set to O.
Lower the jug on to the motor unit.
Remove the lid.
Put the ingredients into the jug. Don't fill past the 1500 ml mark. If you do, the contents may force the lid off when you start the motor.
Replace the lid. Don't operate the appliance without fitting the lid.
Put the plug into the power socket.
Turn the speed control to the speed you want (1 = low, 2 = high).
Turn the speed control back to O to turn the motor off.

Generally, large quantities, thick mixes, and a high ratio of solids to liquids require longer timings and slower speeds.
Smaller quantities, thinner mixes, and more liquids than solids require shorter timings and higher speeds.
Turning the speed control anti-clockwise to will give you a short burst at high speed. In this direction, the knob is spring-loaded. When you let go, it'll return to O.
To add ingredients while the blender is working, open the flap in the cap, pour the new ingredients through the hole then close the flap.
You can pour the blended ingredients from the jug by opening the pouring flap in the cap. Always stop the blender, unplug it then remove the jug before pouring the ingredients from the jug.

When you have finished:

Switch the appliance off (O) and unplug it.
Lift the jug off the motor unit.

CARE AND MAINTENANCE

Switch the appliance off (O) and unplug it.
Wipe the outside of the motor unit with a clean damp cloth.
Hand wash the removable parts.

You may wash these parts in the top rack of a dishwasher.
You may wash these parts in the dishwasher.
If you use a dishwasher, the harsh environment inside the dishwasher will affect the surface finishes. The damage should be cosmetic only, and should not affect the operation of the appliance.

BLADE UNIT

You may wish to remove the blade unit for cleaning.

Remove the lid.
Sit the jug upside down.
Unscrew the blade unit and lift it off.
Handle only the plastic – don't touch the metal parts.
Lift the seal away from the blade unit.
Wash the seal and blade unit in warm soapy water, rinse, and air dry.
Replace the seal round the blade unit.
Replace the blade unit and screw it firmly onto the bottom of the jug.

IMPORTANT SAFEGUARDS

Read the instructions, keep them safe, pass them on if you pass the appliance on. Remove all packaging before use.

Follow basic safety precautions, including:
This appliance can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been supervised/instructed and understand the hazards involved. Children must not use or play with the appliance.
Keep the appliance and cable out of reach of children.
warning To avoid injury, take care when handling the blades, emptying the jug, and cleaning.
burn hazard Don't add hot liquid (over 40°C) as it may be ejected due to sudden steaming.
Misuse of the appliance may cause injury.
Unplug the appliance before assembly, disassembly, or cleaning.
Don't leave the appliance unattended while plugged in.
If the cable is damaged, it must be replaced by the manufacturer, its service agent, or someone similarly qualified to avoid a hazard.

Do not use this appliance near bathtubs, showers, basins or other vessels containing water.

Switch off (O) before fitting or removing the jug to the motor unit.
Don't use accessories or attachments other than those we supply.
Don't use the appliance for any purpose other than those described in these instructions.
Don't operate the appliance if it's damaged or malfunctions.
Don't run the motor continuously for more than 2 minutes, it may overheat. After 2 minutes switch off for at least 2 minutes, to recover.

HOUSEHOLD USE ONLY

SERVICE

If you ring Customer Service, please have the Model Number to hand, as we won't be able to help you without it. It's on the rating plate (usually underneath the product).
The product isn't user-serviceable. If it's not working, read the instructions, check the plug fuse and main fuse/circuit breaker. If it's still not working, consult your retailer.
If that doesn't solve the problem – ring Customer Service – they may be able to offer technical advice.
If they advise you to return the product to us, pack it carefully, include a note with your name, address, day phone number, and what's wrong. If under guarantee, say where and when purchased, and include proof of purchase (till receipt). Send it to:

Customer Service
Spectrum Brands (UK) Ltd
Fir Street, Failsworth, Manchester M35 0HS
email: support@russellhobbs.com
telephone: 0345 658 9700 (local rate number)
Please note: If you have purchased the product within the last 6 months, please contact the retailer in the first instance to deal with any matters relating to warranty.
