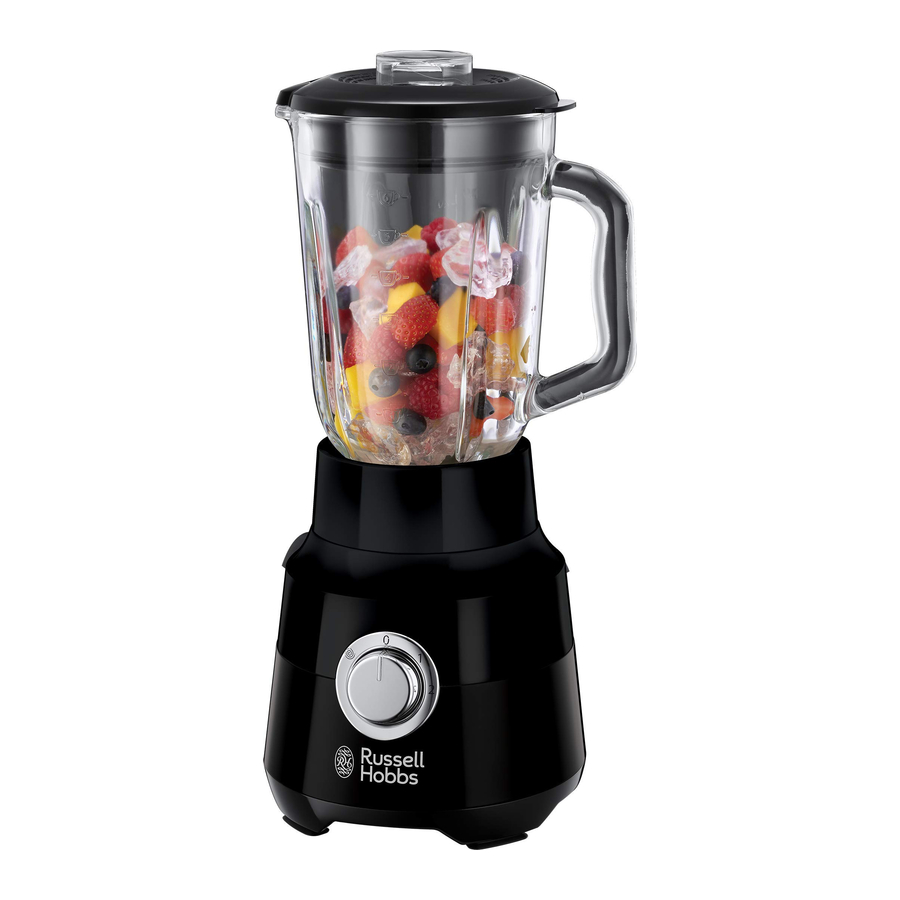

Russell Hobbs 24722-56 - Jug Blender Manual

DIAGRAMS

1. Speed control
2. Motor unit
3. Blade unit
4. Jug
5. Lid
6. Cap

BEFORE USING FOR THE FIRST TIME

Turn to "CARE AND MAINTENANCE" and clean the appliance, to remove manufacturing dust, etc.

USING

In use, treat the jug and blade unit as a single unit.

1. Sit the motor unit on a stable, level surface.
2. Check that the speed control is set to O.
3. Lower the jug on to the motor unit.
4. Remove the lid.
5. Put the ingredients into the jug. Don't fill past the 1500 ml mark. If you do, the contents may force the lid off when you start the motor.
6. Replace the lid. Don't operate the appliance without fitting the lid
7. Put the plug into the power socket.
8. Turn the speed control to the speed you want (1 = low, 2 = high).
9. Turn the speed control back to O to turn the motor off.

• Generally, large quantities, thick mixes, and a high ratio of solids to liquids require longer timings and slower speeds.
• Smaller quantities, thinner mixes, and more liquids than solids require shorter timings and higher speeds.
• Turning the speed control anti-clockwise to will give you a short burst at high speed. In this direction, the knob is spring-loaded. When you let go, it'll return to O.
• To add ingredients while the blender is working, remove the cap, pour the new ingredients through the hole, then replace the cap.
• Check that the added ingredients don't increase the volume in the jug past the 1500ml mark.

When you have finished:

1. Switch the appliance off (O) and unplug it.

CARE AND MAINTENANCE

1. Switch the appliance off (O) and unplug it.
2. Wipe the outside of the motor unit with a clean damp cloth.
3. Hand wash the removable parts.

You may wash these parts in the dishwasher.
If you use a dishwasher, the harsh environment inside the dishwasher will affect the surface finishes. The damage should be cosmetic only, and should not affect the operation of the appliance.

BLADE UNIT

You may wish to remove the blade unit for cleaning.

1. Remove the lid.
2. Sit the jug upside down.
3. Unscrew the blade unit and lift it off.
4. Lift the seal away from the blade unit.
5. Wash the seal and blade unit in warm soapy water, rinse, and air dry.
6. Replace the seal round the blade unit.
7. Replace the blade unit and screw it firmly onto the bottom of the jug.

IMPORTANT SAFEGUARDS

Read the instructions, keep them safe, pass them on if you pass the appliance on. Remove all packaging before use.

Follow basic safety precautions, including:
This appliance can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been supervised/instructed and understand the hazards involved. Children must not use or play with the appliance. Keep the appliance and cable out of reach of children.
To avoid injury, take care when handling the blades, emptying the jug, and cleaning.
Don't add hot liquid (over 40°C) as it may be ejected due to sudden steaming.
Misuse of the appliance may cause injury.
Unplug the appliance before assembly, disassembly, or cleaning.
Don't leave the appliance unattended while plugged in.
If the cable is damaged, it must be replaced by the manufacturer, its service agent, or someone similarly qualified to avoid a hazard.

Don't put the motor unit in liquid.

• Switch off (O) before fitting the jug to the motor unit.
• Don't use accessories or attachments other than those we supply.
• Don't use the appliance for any purpose other than those described in these instructions.
• Don't operate the appliance if it's damaged or malfunctions.
• Don't run the motor continuously for more than 2 minutes becasue it may overheat. After 2 minutes switch off for at least 2 minutes to allow the motor to cool.

HOUSEHOLD USE ONLY
