Russell Hobbs 24732-56 - Mini Chopper Manual

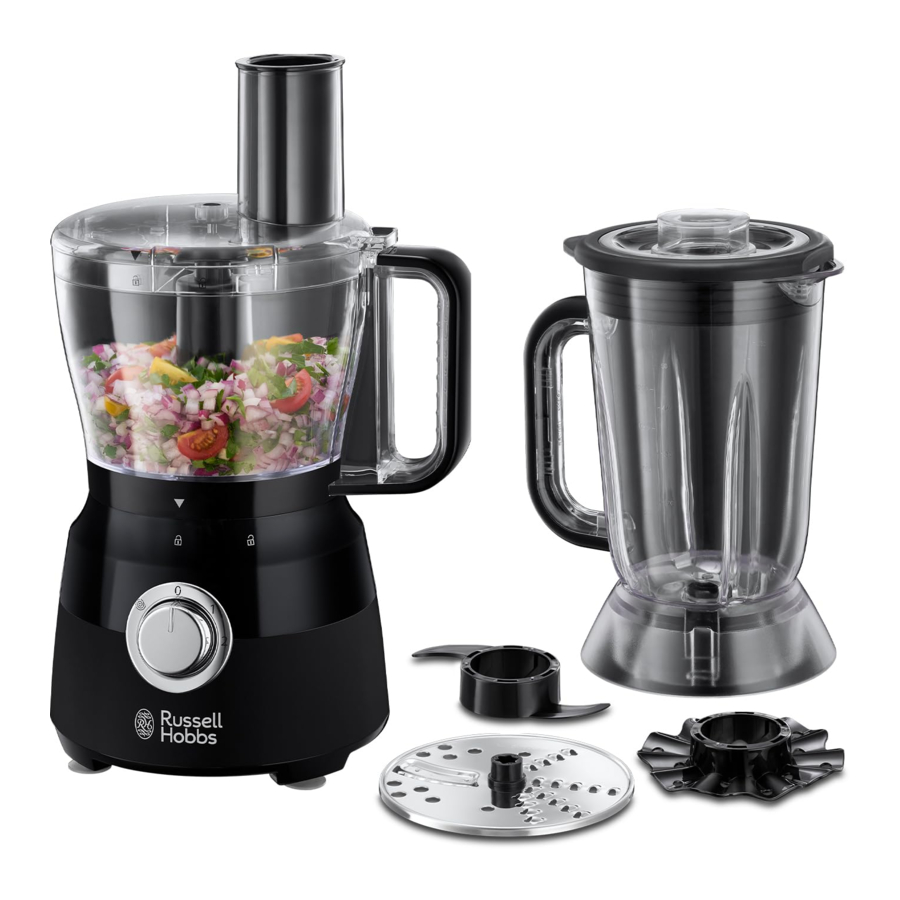

PARTS

PARTS - Part 1
PARTS - Part 2

  1. Speed control
  2. Motor unit
  3. Spindle
  4. Blender jug
  5. Jug
  6. Drive shaft
  7. Chopper attachment
  8. Mixer attachment
  9. Creamer attachment
  10. Tab
  11. Lid
  12. Tube
  13. Pusher
  14. Disc
  15. Cap

Dishwasher safe

BEFORE USING FOR THE FIRST TIME

Turn to "CARE AND MAINTENANCE" and clean the appliance, to remove manufacturing dust, etc.

PREPARATION

  1. Sit the motor unit on a dry, firm, level surface.
  2. Route the cable so it doesn't overhang, and won't trip or catch.
  3. Lower the jug on to the motor unit, then turn the jug clockwise, to lock it in place.
  4. Remove the lid.
  5. Put the ingredients into the jug – don't fill past the max mark.
  6. Put the lid on the blending jug.
  7. Check that the speed control is set to 0.
  8. Put the plug into the power socket (switch it on, if it's switchable).
  9. Turn the speed control to the speed you want (1 = low, 2 = high).
  10. Turn the speed control back to 0 to turn the motor off.
  11. Turning the speed control anti-clockwise to will give you a short burst at high speed. In this direction, the knob is spring-loaded. When you let go, it'll return to 0.

USING THE BLENDER

  1. Lower the blender jug on to the motor unit, then turn the jug clockwise, to lock it in place.
  2. Remove the lid.
  3. Put the ingredients into the blender jug.
  4. Replace the lid.
  5. Align the pips on the cap with the slots in the hole in the lid, fit the cap, and turn it clockwise to lock it.
  6. Don't run the appliance without fitting the cap.
  7. To add ingredients while the blender is working, remove the cap, pour the new ingredients through the hole, then replace the cap.
  8. Once finished, switch the appliance off (0) and unplug it.
  9. Turn the blender jug anti-clockwise, and lift it off the motor unit.

CRUSHED ICE

  1. For best results, full the jug with between 150ml and 500ml of ice cubes.
  2. Put the lid on the blender, then:
  3. Turn the speed control to for a second or two, then release it.
  4. Check the results, and adjust.

USING THE PROCESSOR

  1. Switch the appliance off (0) and unplug it.
  2. Fit the spindle to the top of the motor unit.
  3. Lower the jug on to the motor unit, then turn the jug clockwise, to lock it in place.
  4. Choose the attachment you need.
  5. Hold the lid with the tube slightly behind the jug handle, set it on the jug, then turn it clockwise, to lock the tab into the top of the handle.
  6. Once finished, switch the appliance off (0) and unplug it.
  7. Turn the jug anti-clockwise, and lift it off the motor unit.

USING THE CHOPPER/MIXER/CREAMER ATTACHMENT

Use the chopper for pulverizing ingredients.
Use the mixer to mix ingredients together.
Use the creamer to thicken cream, to beat eggs, and to cream eggs and sugar together.

  1. Fit the desired attachment onto the drive shaft and slide it to the bottom.
  2. Lower the drive shaft into the bowl over the spindle.
  3. Put the ingredients into the jug.
  4. Hold the lid with the tube slightly behind the jug handle, set it on the jug, then turn it clockwise, to lock the tab into the top of the handle.
  5. To add ingredients while the motor is running, lift the pusher out of the tube, add the ingredients through the tube then replace the pusher.
  6. To remove the lid, turn it anti-clockwise to unlock it, then lift it off.

SLICING/GRATING

  1. Lower the disc over the top of the spindle.
  2. Hold the lid with the tube slightly behind the jug handle, set it on the jug, then turn it clockwise, to lock the tab into the top of the handle.
  3. Remove the pusher, and drop the ingredients down the tube.
  4. Replace the pusher, and use it to push the ingredients gently down the tube.
  5. Don't use fingers or cutlery to push food down the tube – only the pusher.
  6. The blade(s) on top of the disc will slice or grate the food into the jug.
  7. Don't let the jug get more than about half full – stop and empty it.
  8. To remove the lid, turn it anti-clockwise to unlock it, then lift it off.
  9. Turn the disc over, and press one of the metal ends in and down, to remove the slicer/grater.

CARE AND MAINTENANCE

  1. Switch the appliance off (0) and unplug it.
  2. Wipe the outside of the motor unit with a clean damp cloth.
  3. Hand wash the removable parts.
  4. If you use a dishwasher, the harsh environment inside the dishwasher will affect the surface finishes.
  5. The damage should be cosmetic only, and should not affect the operation of the appliance.

You may wash these parts in a dishwasher

IMPORTANT SAFEGUARDS

Read the instructions, keep them safe, pass them on if you pass the appliance on. Remove all packaging before use.

Follow basic safety precautions, including:
This appliance can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been supervised/ instructed and understand the hazards involved. Children must not use or play with the appliance. Keep the appliance and cable out of reach of children.
warning To avoid injury, take care handling the blades, emptying the jug, and cleaning.
burn hazard Don't add hot liquid (over 40°C), as it may be ejected due to sudden steaming.
Misuse of the appliance may cause injury.
Unplug the appliance before assembly, disassembly, or cleaning.
Don't leave the appliance unattended while plugged in.
If the cable is damaged, it must be replaced by the manufacturer, its service agent, or someone similarly qualified, to avoid hazard.

  • Remove any packing materials, stickers, etc.
  • Don't put the motor unit in liquid.
  • Switch off (0) before fitting the jug to the motor unit.
  • Switch off (0), and wait till the blades come to a stop before removing the lid from the jug, or removing the jug from the motor unit.
  • Don't put utensils into the jug while the appliance is plugged in.
  • Don't use accessories or attachments other than those we supply.
  • Don't use the appliance for any purpose other than those described in these instructions.
  • Don't operate the appliance if it's damaged or malfunctions.
  • Don't run the motor continuously for more than 1½ minutes, it may overheat. After 1½ minutes switch off for at least 2 minutes, to recover.

HOUSEHOLD USE ONLY

www.russellhobbs.com
