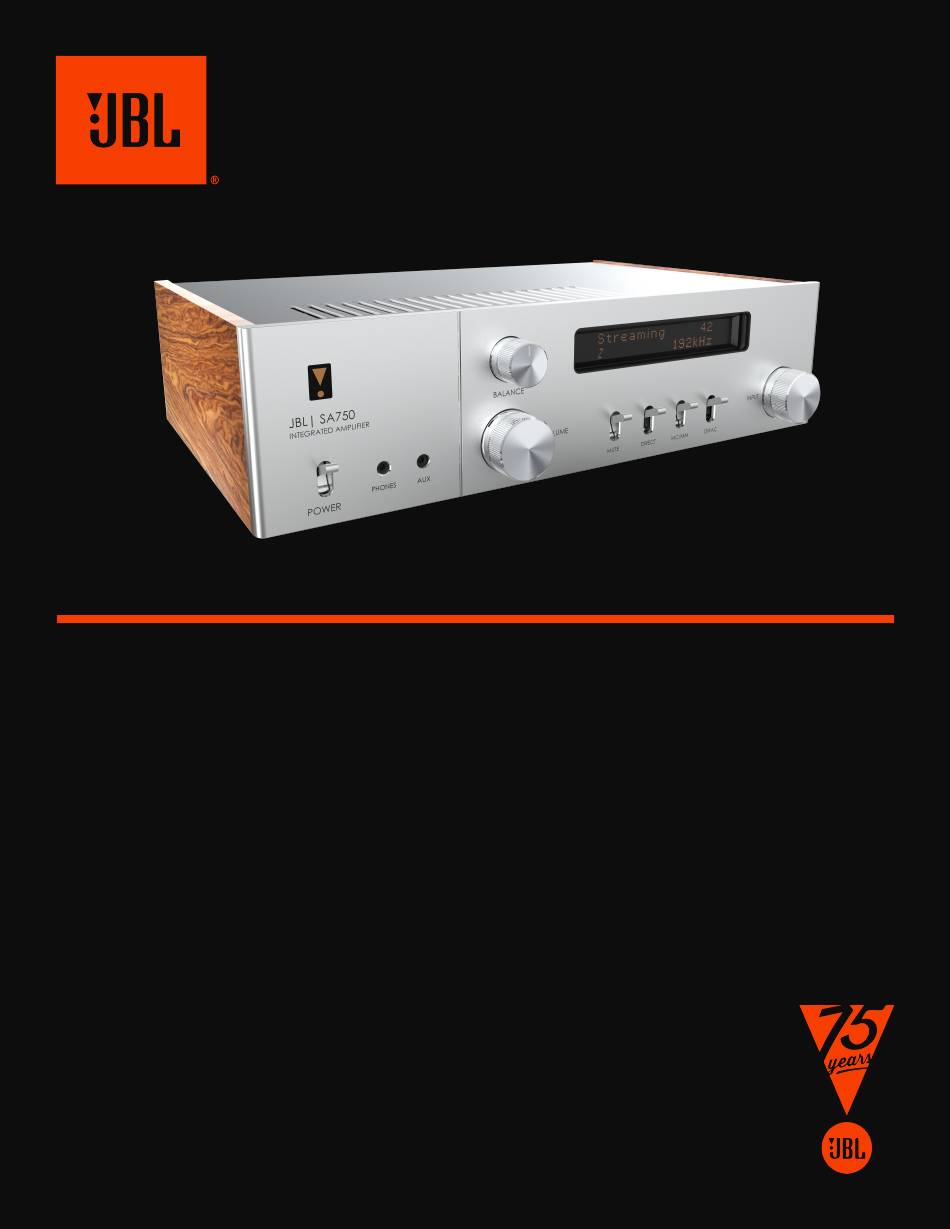

- Page 1 SA750 QUICK START DÉMARRAGE RAPIDE DU SA750 SA750 SCHNELLSTART SA750 SNELLE START INICIO RÁPIDO DE SA750 SA750 БЫСТРЫЙ ЗАПУСК AVVIO RAPIDO SA750 SA750 快速入门 SA750 빠른 시작 SA750 クイックスタート...
- Page 2 ENGLISH This guide is intended to allow a quick setup of your JBL SA750. Please download the safety information and user manual from the SA750 product page at www.jblsynthesis.com or via the QR code below. The user manual contains the complete details of all the features of the SA750 and how to use them.
- Page 3 2. Power the unit on and wait for one minute for it to initialize. 3a. Setup via Apple AirPlay: Open the WiFi settings menu on the iPhone, select the JBL SA750 in the “set up new AirPlay speaker” menu and follow the on screen instructions. If assistance is needed please visit Apple’s support website https://support.apple.com...
- Page 4 PLAYING VIA A WIRED NETWORK 1. Connect the SA750 to your router. Connect the speaker outputs of the SA750 to your speakers. DIGITAL IN POWER SWITCH 4-16 OHMS GAME POWER INLET 5V 100mA SUPPLY RS232 VOLTAGE PHONO PHONO 110-120V/220-240V ~ 50/60Hz 800W MAX (MM) (MC)
- Page 5 PLAYING FROM AN EXTERNAL SOURCE 1. Connect the speaker outputs of the SA750 to your speakers. DIGITAL IN POWER SWITCH 4-16 OHMS GAME POWER INLET 5V 100mA RS232 SUPPLY VOLTAGE 110-120V/220-240V ~ 50/60Hz PHONO PHONO (MM) (MC) 800W MAX ANALOG IN COAX COAX DIGITAL OUT...
- Page 6 Important Safety instructions 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with dry cloth. 7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. 8.
- Page 7 • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Caution: Changes or modifications not expressly approved by HARMAN could void the user’s authority to operate the equipment. (i) FCC AND IC INFORMATION FOR USERS This device complies with Part 15 of the FCC rules and Industry Canada license-exempt RSS standard(s).
- Page 8 0.004 % lead, shall be marked with the chemical symbol for the metal concerned: Hg, Cd or Pb respectively. Please Refer to the below symbol: HARMAN International hereby declares that this equipment is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU.
- Page 9 Apple, AirPlay and the AirPlay logo, iPod, iPhone and iPad are trademarks of Apple Inc., registered in the U.S. and other countries. App Store is a service mark of Apple Inc. AirPlay 2 works with iPhone, iPad, and iPod touch with iOS 11.4 or later, Mac with OS X Mountain Lion or later, and PC with iTunes 10.2.2 or later. The Wi-Fi CERTIFIED Logo is certification marks of the Wi-Fi Alliance.
- Page 10 Ground Floor, Westside 2, London Road, Apsley, Hemel Hempstead, Hertfordshire, HP3 9TD, United Kingdom www.jblsynthesis.com © 2021 HARMAN International Industries, Incorporated. All rights reserved. JBL is a trademarks of HARMAN International Industries, Incorporated, registered in the United States and/or other countries.
- Page 11 SA750 INTEGRATED AMPLIFIER HANDBOOK...
-
Page 12: Safety Guidelines
SAFETY GUIDELINES Important Safety Instructions Class II Product 13. Refer all servicing to qualified service 19. Damage requiring service personnel. The equipment should be serviced by qualified This equipment is a Class II or double insulated Read these instructions. Servicing is required when the apparatus has service personnel when: electrical appliance. - Page 13 Warning FCC Information … Connect the product into an outlet on a circuit … The equipment shall be installed near the different from that to which the receiver is power supply so that the power supply is easily (For US Customers) Mains plug/appliance coupler is used to connected accessible.
-
Page 14: Welcome
WELCOME Thank You And Congratulations..for purchasing your JBL SA750 integrated amplifier. JBL has been producing specialist audio products of remarkable quality for 75 years and the new SA750 integrated amplifier is the latest in a long line of award winning Hi-Fi. -
Page 15: Table Of Contents
CONTENTS SAFETY GUIDELINES CONNECTING TO A NETWORK EN-2 EN-14 WELCOME Home Automation Control EN-4 EN-14 OVERVIEW AirPlay Setup EN-6 EN-14 TRADEMARK ACKNOWLEDGMENTS Chromecast Built-In Setup EN-7 EN-14 FRONT PANEL CONNECTIONS AND CONTROLS DIRAC LIVE EN-8 EN-15 REAR PANEL CONNECTIONS AND CONTROLS Using Dirac EN-9 EN-15... -
Page 16: Overview

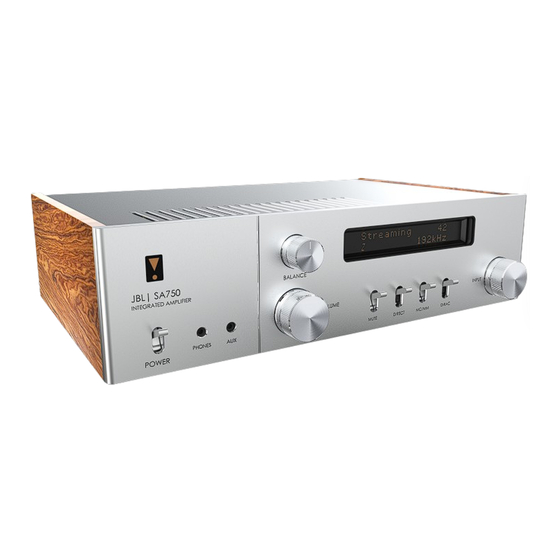

OVERVIEW JBL | SA750 BALANCE INTEGRATED AMPLIFIER VOLUME INPUT PHONES POWER MUTE DIRECT MC/MM DIRAC JBL’s SA750 Amplifier Placing The Unit … Make sure the remote-control receiver to the right of the front panel display is unobstructed, otherwise JBL’s SA750 integrated amplifier provides class …... -
Page 17: Trademark Acknowledgments
TRADEMARK ACKNOWLEDGMENTS Apple, AirPlay and the FLAC Decoder Copyright © 2000, THIS SOFTWARE IS PROVIDED MQA and the Sound Wave Device FLAC FLAC cont. AirPlay logo, iPod, iPhone 2001, 2002, 2003, 2004, 2005, BY THE COPYRIGHT HOLDERS are registered trade marks of and iPad are trademarks of 2006, 2007, 2008 Josh Coalson AND CONTRIBUTORS ‘AS... -
Page 18: Front Panel Connections And Controls
FRONT PANEL CONNECTIONS AND CONTROLS BALANCE CONTROL INPUT CONTROL H/PHONES See "Balance Control" on See "Selecting An Audio Source" on See "Listening Using Headphones" page EN-13 page EN-12 on page EN-13 JBL | SA750 BALANCE INTEGRATED AMPLIFIER VOLUME INPUT PHONES POWER MUTE DIRECT... -
Page 19: Rear Panel Connections And Controls
REAR PANEL CONNECTIONS AND CONTROLS NETWORK DIGITAL AUDIO INPUTS Connect this socket to a port on your Optical and coaxial digital audio network router using an Ethernet patch connectors. See "Selecting An Audio cable. See "Home Automation Control" Source" on page EN-12 on page EN-14 USB TYPE A This USB socket is used for playback of... -
Page 20: Connecting Loudspeakers
CONNECTING LOUDSPEAKERS There are many different ways of connecting loudspeakers to your SA750 amplifier. The following section describes how to connect the speakers and amplifier for the most common configurations. Single Wiring DIGITAL IN If each speaker has more than one pair of POWER SWITCH connecting terminals, use the terminals labelled 4-16 OHMS... - Page 21 CONNECTING LOUDSPEAKERS CONTINUED Bi-Amping Bi-amping is the separation of the amplification of low and high-frequency signals over two amplifiers. Bi-amping requires the use of two amplifiers per channel. Normally, your SA750 is used to drive DIGITAL IN the high frequency (treble) speakers, while a POWER SWITCH second amplifier (such as the JBL SDA2220) is 4-16 OHMS...
-
Page 22: Operation
NAS drive and selected streaming services using of any type as this could result in serious Auto Standby the Harman Music Life app. WARNING: NEVER play a standard line-level damage to your amplifier and speakers source into this input. This would result... -
Page 23: Listening
LISTENING Listening Using Headphones Direct Mode Processor Mode Pre-Amplifier Output The headphone socket (PHONES) accepts The SA750 allows the option to bypass certain Processor mode can be assigned to most Analog To use the SA750 as dedicated pre-amplifier, or phones with an impedance rating between 16Ω elements of the audio processing to allow for a inputs. -
Page 24: Connecting To A Network
Select the SA750 and follow the instructions on AirPlay speaker” menu. available for setup. If not simply tap “Add” JBL at luxurysupport@Harman.com. screen. followed by “Setup a Device”. Follow the instructions on screen. -
Page 25: Dirac Live
DIRAC LIVE Downloading the Dirac Live Using Dirac When activated, a calibration tone is played through each channel of the SA750. The application You can store up to three Dirac EQ curves in the calibration tone cycles round each of the speakers SA750. - Page 26 REMOTE CONTROL Notes on batteries: Toggles power between standby and Toggles power between standby and Incorrect use of batteries can result in hazards DISP such as leakage and bursting. Info cycles through the information Selects play mode, Normal, Repeat, INFO MODE displayed on the lower portion of the Repeat All, Shuffle.
-
Page 27: Setup Menu
SETUP MENU System Settings USB Update PM Volume The setup menu allows you to configure various aspects of the SA750 integrated amplifier. Allows the SA750 to be updated via a USB stick. Specify the required volume level for the processor Display Entering Setup Menu Refer to the software release instruction for more... -
Page 28: Network Settings
SETUP MENU See "SA750 DIGITAL FILTERS" on page EN-19 for more explanation on the differences between the filters. Network Settings Network Info Displays the units wired and wireless MAC address, IP address and friendly name and host name. Net Standby Enables or disables the network control of the SA750 while the unit is in standby. -
Page 29: Sa750 Digital Filters
SA750 DIGITAL FILTERS Brick Wall (B Wall) Minimum Phase Slow Roll Off (MinP Linear Phase Slow Roll Off (LinP The SA750 allows the listener to choose between a number of digital filters for use in the audio Slow) Slow) No phase shift, but introduces both pre and post DAC. -
Page 30: Troubleshooting
TROUBLESHOOTING Problem Check the following No sound … The SA750 amplifier is correctly plugged in and switched on … Your audio source is correctly connected, the correct input is selected and it is not muted … The SA750 is not in protection mode, as described below Sound cuts-out unexpectedly The SA750 may enter a protection mode if a fault is detected. -
Page 31: Sa750 Specifications
SA750 SPECIFICATIONS Continuous power output (0.5% THD), per channel Supported sample Optical 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz rates Both channels, 8Ω, 20Hz—20kHz 130W Coaxial 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz Both channels, 4Ω, at 1kHz 200W Bit depth 16-bit – 32-bit Harmonic distortion, 80% power, 8Ω... - Page 32 HARMAN International, Incorporated 8500 Balboa Boulevard, Northridge, CA 91329 USA www.jblsynthesis.com © 2021 HARMAN International Industries, Incorporated. All rights reserved. JBL is a trademarks of HARMAN International Industries, Incorporated, registered in the United States and/or other countries. Features, specifications and appearance are subject to change without notice.
