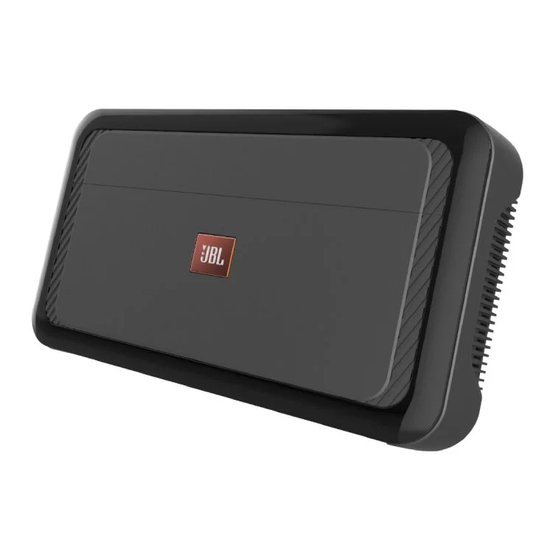

Club A754 and Club A5055 Amplifiers
FRONT
SUB
MAX
12dB
BASS
GAIN
BOOST
MIN
0dB
0°
HI2
HPF
X-OVER
PHASE
HI1
FULL
LO
LPF
180°
320HZ
320Hz
FREQ
FREQ
32Hz
32HZ
MAX
MAX
GAIN
GAIN
MIN
MIN
DC
HPF
EXT
X-OVER
INPUT
FULL
REM
LPF
INT
320Hz
FREQ
32Hz
REAR
A5055
Owner's Manual
Betjeningsvejledning
Bedienungsanleitung
Manual de propietario
Käyttöopas
Mode d'emploi
Manuale d'istruzioni
Gebruikershandleiding
Instrukcja obsługi
Manual do utilizador
Bruksanvisning
Kullanıcı Kılavuzu
Руководство пользователя
Panduan Pengguna
EN
DA
DE
ES
FI
FR
IT
NL
PL
PT
SV
TR
RU
ZH-CN
ZH-TW
ID
JP
KO
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Harman JBL Club A754
Summary of Contents for Harman JBL Club A754
- Page 1 Club A754 and Club A5055 Amplifiers Owner's Manual Betjeningsvejledning Bedienungsanleitung Manual de propietario Käyttöopas Mode d'emploi FRONT 12dB BASS GAIN BOOST 0° X-OVER PHASE FULL 180° Manuale d'istruzioni 320HZ 320Hz FREQ FREQ 32Hz 32HZ GAIN GAIN X-OVER INPUT FULL 320Hz FREQ 32Hz REAR...
- Page 2 Club A754 and Club A5055 Amplifiers WHAT'S IN THE BOX ACCESSING CONNECTORS AND CONTROL PANEL 1. Pry off trim piece FRONT BASS 12dB GAIN BOOST 0° INPUT LEVEL X-OVER FULL PHASE 180° 320Hz 320HZ FREQ FREQ 32Hz 32HZ GAIN GAIN TURN-ON X-OVER FULL...
- Page 3 IMPORTANT: Disconnect the vehicle's negative (–) battery Club A5055 low-level signals terminal before beginning the installation. • Always wear protective eyewear when using tools. • Choose a safe mounting location, away from moisture. Check FRONT REAR clearances on both sides of a planned mounting surface. Be sure that screws or wires will not puncture brake lines, fuel lines, or wiring harnesses and that wire routing will not interfere with the safe vehicle operation.
- Page 4 WIRING FOR OUTPUT CONNECTING THE REMOTE BASS CONTROLLER (CLUB A5055 ONLY) Club A754 4-channel output (4ohm/2ohm) REMOTE CONTROL Rear right Front right speaker speaker FRONT REAR Front left speaker Rear left speaker Club A754 3-channel output (Front: 4ohm/2ohm; Rear: 4ohm) SETTING GAIN, CROSSOVERS, AND BASS Front right speaker BOOST...
- Page 5 filter on power line between battery and alternator might also be necessary. HARMAN International Industries, © 2019 HARMAN International Industries, Incorporated. All rights reserved. Incorporated 8500 Balboa Boulevard, JBL is a trademark of HARMAN International Industries, Incorporated, Northridge, CA 91329 USA registered in the United States and/or other countries.
- Page 6 CA_JBL_Club A754 and A5055_QSG_CR_V9...
- Page 7 CLUBA5055 High-performance 5 channel car amplifier Value engineered car amplifier with JBL power and performance. Features Compact size The Club A5055 5-channel amplifier delivers a powerful 50-Watts RMS to each of the front High and low level input and rear speakers in your car, and a pounding 500-Watts RMS to the subwoofer channel Variable crossover and bass boost —...
- Page 8 W x H x D = 14-3/16" x 2-1/16" x 7-1/8" © 2020 HARMAN International Industries, Incorporated. All rights reserved. JBL is a trademark of HARMAN HARMAN International Industries, Incorporated International Industries, Incorporated, registered in the United States and/or other countries.
