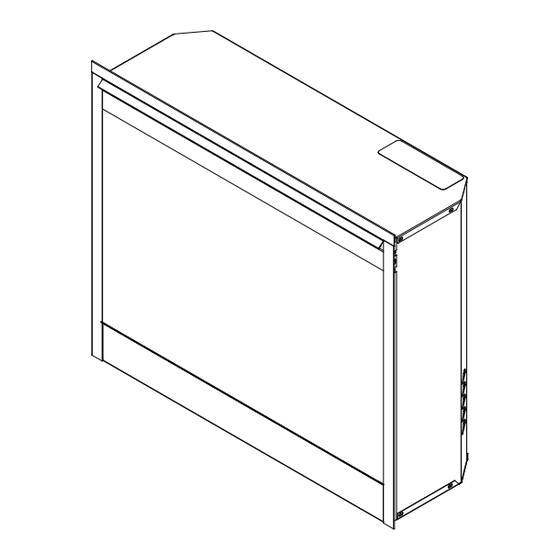

Owner's Manual
Model Numbers:
6904700000
Serial Number
Model Number
Part Number
Valued Customer,
Thank you and congratulations for purchasing a Dimplex
electric fireplace. Over the years, valuable memories
will occur around the warmth and comfort of your
fireplace. Thank you for allowing our product to be the
backdrop for those special moments.
EU
RU
UA
FR
ES
IT
DE
PL
Quality checked by:
7209340100REV02
Advertisement
Table of Contents
Related Manuals for Dimplex 6904700000
Summary of Contents for Dimplex 6904700000
- Page 1 Owner’s Manual Model Numbers: 6904700000 Quality checked by: Serial Number Model Number Part Number Valued Customer, Thank you and congratulations for purchasing a Dimplex electric fireplace. Over the years, valuable memories will occur around the warmth and comfort of your fireplace. Thank you for allowing our product to be the backdrop for those special moments. 7209340100REV02...
- Page 2 QUICK REFERENCE GUIDE 1. Prior to the first use of the fireplace verify the f ollowing: • Are the circuit breakers for the socket the unit uses on? • Are the light bulbs in your fireplace loose? (to check, follow the instructions for replacing the light bulbs under the Maintenance section of this manual) 2. The heater on your fireplace may emit a slight, harmless odor when first used. This odor is a normal condition caused by the initial heating of internal heater parts and will not occur again. 3. The information regarding the model of your fireplace can be found on the rating plate. See Page 3 for location. 4. If you have any technical questions regarding the operation or service of your fireplace have your Model and Serial Number ready, and contact customer service before returning the product to the point of purchase.
-
Page 3: Table Of Contents
CONTENTS PAGE 1 Important Instructions PAGE 3 Model and Serial Number Information PAGE 3 Site Selection and Preparation PAGE 4 Fireplace Installation PAGE 6 Operation PAGE 8 Maintenance PAGE 12 Warranty... -
Page 4: Important Instructions
IMPORTANT INSTRUCTIONS Please Retain This User’s Guide For Future Reference When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following: 1. Read all instructions before using the electric fireplace. 2. This fireplace is hot when in use. To avoid burns, do not let bare skin touch hot surfaces. The trim around the heater outlet becomes hot during heater operation. Keep combustible materials, such as furniture, pillows, bedding, papers, clothes, and curtains at least 0.9 m from the front of the unit. 3. Extreme caution is necessary when any heater is used by or near children or invalids and whenever the unit is left operating and unattended. 4. Young children should be supervised to ensure that they do not play with the appliance. 5. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety. 6. The appliance must be positioned so that the plug is accessible. 7. Always unplug the electric fireplace when not in use. 8. If the supply cord is damaged, it must be replaced by the manufacturer, or its service agent, or a qualified person in order to avoid a hazard. 9. Do not operate any unit with a damaged cord or plug, or if the heater has malfunctioned, or if the electric fireplace has been dropped or damaged in any manner. Return heater to authorized service facility for examination,... - Page 5 16. Do not insert or allow foreign objects to enter any ventilation or exhaust opening as this may cause an electric shock or fire, or damage to the heater. 17. To prevent a possible fire, do not block air intake or exhaust in any manner. Do not use on soft surfaces, like a bed, where openings may become blocked. 18. All electrical heaters have hot and arcing or sparking parts inside. Do not use in areas where gasoline, paint, or flammable liquids are used or stored or where the unit will be exposed to flammable vapors. 19. Do not modify the electric fireplace. Use it only as described in this manual. Any other use not recommended by the manufacturer may cause fire, electric shock or injury to persons. 20. Avoid the use of an extension cord. Extension cords may overheat and cause a risk of fire. If you must use an extension cord, the cord must be 3-core type and have a rating no less than 10 Amps. 21. Do not burn wood or other materials in the electric fireplace. 22. Do not strike the fireplace glass. 23. Always use a certified electrician should new circuits or outlets be required. 24. Always use properly grounded, and fused outlets. 25. Disconnect all power supply before performing any cleaning, maintenance or relocation of the unit. 26. When transporting or storing the unit and cord, keep in a dry place, free from excessive vibration and store so as to avoid damage. 27. WARNING: In order to avoid overheating, do not cover the heater. The heater carries the Warning Symbol indicating that it must not be covered SAVE THESE INSTRUCTIONS NOTE: Procedures and techniques that are considered important enough to emphasize.
-
Page 6: Model And Serial Number Information
WARNING: Ensure the power cord is not installed so that it is pinched or against a sharp edge and ensure that the power cord is stored or secured to avoid tripping or snagging to reduce the risk of fire, electric shock or injury to persons. Construction and electrical outlet wiring must comply with local building codes and other applicable regulations to reduce the risk of fire, electric shock and injury to persons. Do not attempt to wire your own new outlets or circuits. To reduce the risk of fire, electric shock or injury to persons, always use a licensed electrician. Site Selection and Preparation This section provides instructions for selecting a location and preparing the site to install the fireplace into your Dimplex mantel surround. 1. Select a suitable location that is not susceptible to moisture and is away from drapes, furniture and high traffic. -
Page 7: Fireplace Installation
2. For ease of electrical hook up you may wish to locate the fireplace near an existing outlet (refer to NOTE 1). 3. Store the fireplace in a safe, dry and dust free location. CAUTION: Clearance for air circulation beneath the fireplace is provided by two spacers. DO NOT INSTALL FIREPLACE DIRECTLY ON CARPET OR SIMILAR SURFACES WHICH MAY RESTRICT AIR CIRCULATION. If installing the fireplace in a carpeted area, place a one-piece, solid flat surface under the fireplace. Ensure that all feet rest securely on this surface. NOTE: The dimensions of the fireplace are 667 mm wide X 575 mm high X 222 mm deep. The fireplace does not require any additional venting. With trim, the dimensions are 695 mm wide X 596 mm high X 222 mm deep. Figure 2 695 mm 667 mm Fireplace Installation Install the fireplace assembly into the mantel (refer to mantel assembly instructions). NOTE: A 10 Amp, 240 Volt circuit is required. A dedicated circuit is preferred but not essential in all cases. A dedicated circuit will be required if after installation the circuit breaker trips or fuse blows on a regular basis when the heater is operating. Additional appliances on the same circuit may exceed the current rating of the circuit breaker. - Page 8 IMPORTANT: If not using a Figure 3 Dimplex mantel, the fireplace must be installed in an enclosure with the following MINIMUM dimensions (Figure 3). New Wall Construction 1. Select a suitable location that is not susceptible to moisture and is away from drapes, furniture and high traffic. 680 mm 2. Place the fireplace in the desired location to see how it will look in the room. 3. Mark the desired location on the floor. 4. Use studs to frame an opening of 680 mm wide X 585 mm high X 229 mm deep.
-
Page 9: Operation
near the fireplace. CAUTION: Clearance for air circulation beneath the fireplace insert is provided by two spacers. Do not install the fireplace insert directly on carpet or similar surfaces which may restrict air circulation. If installing the fireplace in a carpeted area, place a one-piece, solid, flat surface under the fireplace insert. Ensure that all three of the insert’s feet rest securely on this surface. Operation Electric Fireplace Manual Control The manual controls for the fireplace are behind the access panel located at the bottom of the fireplace (Figure 4). Figure 4 A. Flame Action Control Turn the flame action control knob to adjust the flame speed to the desired level. B. Interior Light Control Turn the interior light control knob to increase or decrease the brightness of the interior light. - Page 10 E. Heater Thermostat Control To adjust the temperature to your individual requirements, turn the thermostat control clockwise all the way to turn on the heater. When the room reaches the desired temperature, turn the thermostat knob counter clockwise until you hear a click. Leave in this position to maintain the room temperature at its setting. For additional heat, turn clockwise until you hear the click again and the heater will turn on. To turn the heater off, rotate the knob fully counter clockwise. F. Main ON/OFF Switch The Main ON/OFF Switch supplies power to all fireplace functions. Resetting the Temperature Cutoff Switch This unit is equipped with a thermostat which controls the temperature of the room by turning the heater on and off. The heater is protected with a safety device to prevent overheating. Should the heater overheat, an automatic cut out will turn the heater off and it will not come back on without being reset. It can be reset by switching the Main ON/OFF Switch to OFF and waiting five (5) minutes before switching the unit back on. CAUTION: If you need to continuously reset the heater, unplug the unit and call customer service. Please have your model and serial number ready when calling. Remote Control The fireplace is supplied with a radio frequency remote control. This remote control has a range of approximately 15.25 m, it does not have to be pointed at the fireplace and can pass through most obstacles (including walls). It is supplied with one of hundreds of independent frequencies to prevent interference with other units. The frequency designation is indicated on the back of the transmitter. Remote Control Initialization Follow steps 1 through 4 to initialization your fireplace for the first time.
-
Page 11: Maintenance
1. Ensure that power is supplied to the intended electrical receptacle. 2. Locate manual controls (refer to Figure 4). 3. Plug in fireplace, first indicator light will flash (Figure 4C). 4. P ress and hold the Flame/Heat Selection Switch (Figure 4D) for five (5) seconds (“ ” position) UNTIL the second red indicator light flashes. 5. Press ON button located on the remote control transmitter (Figure 5). This will synchronize the remote control transmitter and receiver. Remote Control Usage The remote control operates the fireplace levels sequentially, flames only to flames and low heat, to flames and high heat. The level is increased every time the ON button on the transmitter is pressed. The fireplace can be turned off at any point by pressing the OFF button on the remote control transmitter. Level : The flame effect is turned on and the first red indicator light flashes momentarily. Level : The flame effect remains on, the heater is activated to the low heat setting, and the first and second red indicator lights flash momentarily. Level : The flame effect remains on, the heater is set to the high heat setting, and all three red indicators flash momentarily. Battery Replacement Figure 5 To replace the battery: 1. Slide battery cover open on the hand held transmitter (Figure 5). 2. Correctly install one (1) 12 Volt (A23) battery in the battery holder. - Page 12 reduce the risk of fire, electric shock or damage to persons. Light Bulb Replacement Allow at least five (5) minutes for the light bulbs to cool before touching them to avoid accidental burning of the skin. The light bulbs need to be replaced when you notice a dark section of the flame or when the clarity and detail of the log ember bed exterior reduces. There are three (3) bulbs under the log set, which generate the flames and embers, and two (2) bulbs above the log that illuminate the log exterior. Lower Light Bulb Requirements Quantity of three (3) clear chandelier or candelabra bulbs with an E-14 (small) socket base, 60 Watt rating. Do not exceed 60 Watts per bulb Helpful Hints It is a good idea to replace all light bulbs at one time if they are close to the end of their rated life. Group replacement will reduce the number of times you need to open the unit to replace light bulbs. Care must be taken when removing the log set as the log set contains LED’s and wires. To access the lower light bulb area: 1. Slide fireplace out of mantel. 2. Lay unit on it’s back for safe removal of front glass. 3. Remove four (4) Phillips screws from the right side of trim.
- Page 13 4. Remove trim. 5. Slide glass to right side of fireplace to remove (Figure 6). 6. Pull the front edge of the plastic ember bed or plastic grate up and forward until the rear tab releases from the ledge located at the bottom of the mirror (Figure 7). 7. Remove flicker rod by sliding flicker rod to the left away from the flicker motor and lifting out. 8. R emove light bracket for easier access to light bulbs. IMPORTANT: Only handle the log set by the ember bed. NOTE: Log set fits tightly into firebox, some force may be necessary to remove. 9. Set log set in front of fireplace. 10. U nscrew bulbs counter clockwise. 11. Insert new bulbs. 12. R eplace the log set by inserting the front edge of the fireplace and push down on the rear edge of the ember bed until it snaps into place (Figure 7). 13. L ay unit on it’s back and slide front glass back into position and attach trim. NOTE: Ensure the log set is installed tightly under the back ledge to prevent light leakage. Upper Light Bulb Requirements Quantity of two (2) clear chandelier or candelabra bulbs with an E-14 (small socket base, 25 Watt rating.
- Page 14 5. Slide glass to the right side of the fireplace to remove (Figure 6). 6. Upper bulbs located in the upper left and upper right corners of fireplace. 7. Remove upper light block by removing the four (4) mounting screws. 8. Unscrew bulbs counter clockwise. 9. Insert new bulbs. 10. R e-install upper light bracket. 11. Lay unit on it’s back slide front glass back into position and attach trim. Glass Cleaning The glass is cleaned in the factory during the assembly operation. During shipment, installation, handling, etc., the glass may collect dust particles; these can be removed by dusting lightly with a clean dry cloth. To remove fingerprints or other marks, the glass can be cleaned with a damp cloth. To prevent scratching, do not use abrasive cleaners or spray liquids on the any surface. Fireplace Surface Cleaning Use a cloth dampened with warm water only to clean painted surfaces of the electric fireplace. Do not use abrasive cleaners.
-
Page 15: Warranty
Warranty Dimplex Electric Fireplaces are tested and inspected prior to shipment and are guaranteed from defect to the purchaser of each new product. Any part which proves to be defective in material or workmanship under normal use within one year will be repaired or replaced without charge.* The Company will not be responsible for any expense incurred for installation, removal for service, or transportation costs. Any such defect should be brought to the attention of the Dealer where the product was purchased and is authorized to repair or replace within the terms of this warranty. The Company’s only obligation under this warranty will be at its sole option to repair or replace any part proving defective or to refund the purchase price thereof. The owner/user assumes all other risks, if any, including the risk of any direct, indirect or consequential loss or damage arising out of the use of or inability to use the product.
