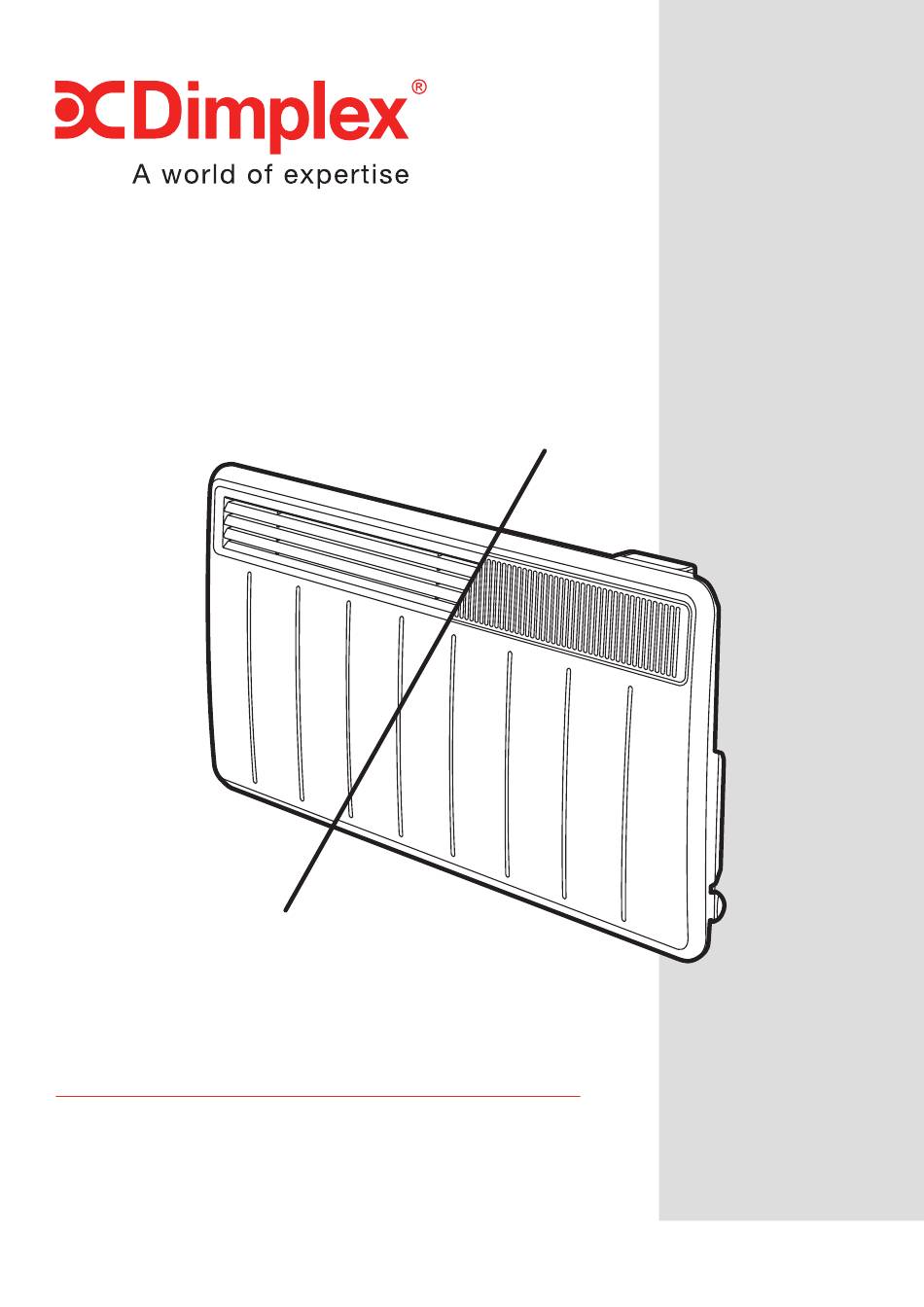

INSTRUCTION MANUAL
Installation and Operating

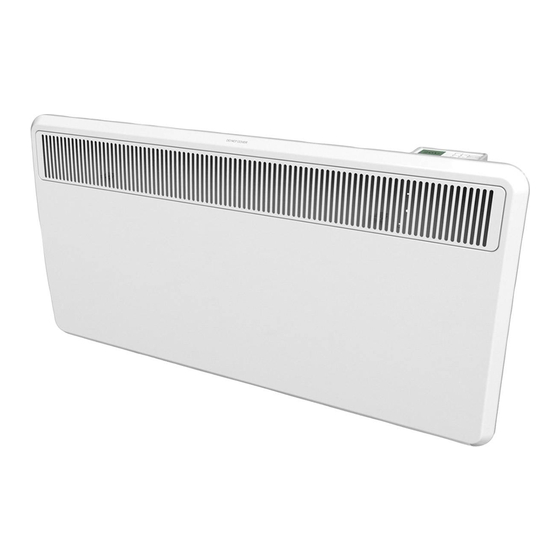

Dimplex PLXE
Models: PLX050E / PLX075E / PLX100E / PLX125E
PLX150E / PLX200E / PLXC300E
Note: PLXC300E features a slotted grille
*
These instructions should be read carefully and
retained for future use. Note also the information
presented on the appliance.
08/53566/0
ISSUE: 4 Series: A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PLX050E and is the answer not in the manual?

Questions and answers

Related Manuals for Dimplex PLX050E

Summary of Contents for Dimplex PLX050E

  • Page 1 INSTRUCTION MANUAL Installation and Operating Dimplex PLXE Models: PLX050E / PLX075E / PLX100E / PLX125E PLX150E / PLX200E / PLXC300E Note: PLXC300E features a slotted grille These instructions should be read carefully and retained for future use. Note also the information presented on the appliance.
  • Page 2 CAUTION: Do not use if the heater’s mains power lead is damaged. If the supply cord is damaged it must be replaced by the installer or an approved Dimplex service partner.
  • Page 3 ELECTRICAL INSTALLATION WARNING - The electrical installation of this heater must be carried out by a suitably qualified or trained electrician, and be in strict accordance with the current wiring Regulations BS 7671. The supply must be connected via a switched fused spur with a fuse rated suitably for the appliances flex.

  • Page 4: Technical Details

    Energy Related Product Directive This product complies with Lot20 of the Energy Efficiency Directive (2015/1188). Type of heat output/ room temperature control With electronic room temperature control Electronic room temperature control plus week timer With open window detection With adaptive start control Technical Details Model Identifier(s): 050E...
  • Page 5 3.3V coin cell battery to backup real time clock. Battery life >5 years. 1.3 metres fitted, 3 core for fused spur installation, 1/N/PE ~230-240 V, 50Hz Supply Class I, with earth wire Approvals CE, BEAB Warranty 2 years Country of Origin United Kingdom Glen Dimplex Heating & Ventilation Manufacturer (GDC Group Ltd.)

  • Page 6: General Information

    The fixings should be used to secure the bracket to the particular wall on which the heater will be installed. The heater should be positioned observing the minimum clearances stated around the heater - see Fig. 1, Fig. 3 and Fig. 4. MODEL PLX050E 128mm 263mm 450mm...
  • Page 7 To mount the heater to the wall: 1. Remove wall mounting bracket from the back of the heater by depressing the spring latch at the side of each bracket - see Fig.2. 2. Fix the wall bracket securely to the wall through the four screw holes. Ensure only screw fittings provided are used for the particular wall type.
  • Page 8 If you require a different room temperature then press either until the display shows the temperature you require. Timer Modes Fig. 5 Timer Mode Description Your Dimplex PLXE Panel comes pre-programmed with four timer User timer Customise times in four periods modes. These modes...
  • Page 9 Which Timer Mode is Best for Me? The heater leaves the factory set in Out All Day mode. If you are out during the day and only require heat in the mornings and evenings then this mode will suit your lifestyle and you won’t need to alter anything.
  • Page 10 Operation Manual WARNING: FAILURE TO FOLLOW THESE OPERATING INSTRUCTIONS MAY RESULT IN INJURY AND/OR DAMAGE. The controls are located on top of the heater. The heater is fitted with an adjustable electronic controller consisting of a display screen and six touch sensitive buttons. Display Screen ‘Menu’...

  • Page 11: Control Functions

    Control Functions The heater controls can be easily adjusted by using the six buttons on the User Interface. The Display Screen shows the options available at each stage of adjustment. Menu - displays the main options list: - Date/Time - Set the date and time. - Mode - Set the mode of operation.

  • Page 12: Main Screen

    Main Screen After 30 seconds the heater will default back to the Main Screen. Here the current target temperature (setpoint) is displayed along with the mode of operation. Any use of the Advance function will be displayed here, and pressing Enter will show the functions which are enabled. When left inactive for a long period of time this display will ‘sleep’...

  • Page 13: Modes Of Operation

    Modes of Operation The heater comes pre-programmed with a set of heating profiles. The user can can change if he / she want to. There are four options available - three pre-programmed and one user adjustable timer; User Timer - provides greatest flexibility to the user. Four time slots are available throughout the day and these can be customised for each day of the week.
  • Page 14 Choosing and Setting a Mode Timer Modes To choose a timer mode press Menu and then to select Mode. Then press Enter. Then select Timer Mode, again using the Enter button. followed by Enter. Select the mode required, by pressing For options Out All Day, Home All Day and User Timer, three choices are available - Select, Preview and Modify.
  • Page 15 If EcoStart is disabled, the heater will not operate until the beginning of the heating period. This should be taken into consideration when setting the heating periods. In Holiday mode the number of days that the room will remain unoccupied for can be adjusted together with the required room temperature.
  • Page 16 Advance The Advance function allows the heating profile of the heater to be changed temporarily. When a timer has been selected, Advance the Advance function is used to begin the next Comfort On mode early. If the heater is in Comfort Off mode and heat is required, press the Advance button.

  • Page 17: Child Lock

    Child Lock To lock the controls press Back and Enter for three seconds. Child Lock will appear at the bottom of the screen. To unlock the control repeat the action of pressing Back and Enter for three seconds. Child Lock NOTE: The controls cannot be adjusted when child lock is active.
  • Page 18 Runback Lock Mode Introduction 12:00 This appliance has a built in runback lock mode, when this mode Comfort Off is activated the user will have limited functionality with no access to the settings of the runback timer. It is possible to limit the maximum operating temperature and runback duration in the runback lock mode.
  • Page 19 Accessing Runback Lock Mode In order to enter the Runback lock menu, Back, Menu 12:00 & Enter must be pressed simultaneously and held for Comfort Off 10 seconds. The user will then be prompted to enter the runback lock PIN. NOTE: Runback Lock The default password is 0000, the password...
  • Page 20 Runback Duration During setup it is possible to select from a number of preset runback periods. This is achieved by selecting the maximum runback time. The maximum runback time is subdivided into four periods to deliver options to the user, the maximum time options and corresponding runback periods are shown in the table below.

  • Page 21: Battery Replacement

    Battery replacement IMPORTANT: Before replacing the battery ensure the heater is isolated from the electricity supply. NOTE - Battery should be disposed of in an appropriate manner This product is fitted with a replaceable battery in the controls. To replace the battery, follow the steps below, shown in Fig.

  • Page 22: Energy Saving Tips

    Energy Saving Tips The energy we use to heat, light and power our homes contributes over a quarter of the UK’s carbon emissions, the principle contributor to climate change. Around half the energy used in the home is for heating and hot water, so using your heating system efficiently will not only help the environment, but also save you money.
  • Page 23 Please therefore retain your receipt as proof of purchase. If you do experience a problem with your Dimplex product please call the Helpline on 0844 879 3588 or visit http://www.dimplex.co.uk/about-us/contact-us/ and complete the online form. For ROI please email serviceireland@glendimplex.com or call +353(0)1 842 833.
  • Page 24 • You must provide to Dimplex or its authorised agents on request the original receipt as proof of purchase and - if required by Dimplex - proof of delivery. If you are unable to provide this documentation, you will be required to pay for any repair work required.
  • Page 26 © GDC Group Ltd. All rights reserved. Material contained in this publication may not be reproduced in whole or in part, without prior permission in writing of Dimplex. A division of GDC Group Ltd. This product complies with the European Safety Standards EN60335-2-30 and the European Standard Electromagnetic Compatibility...
