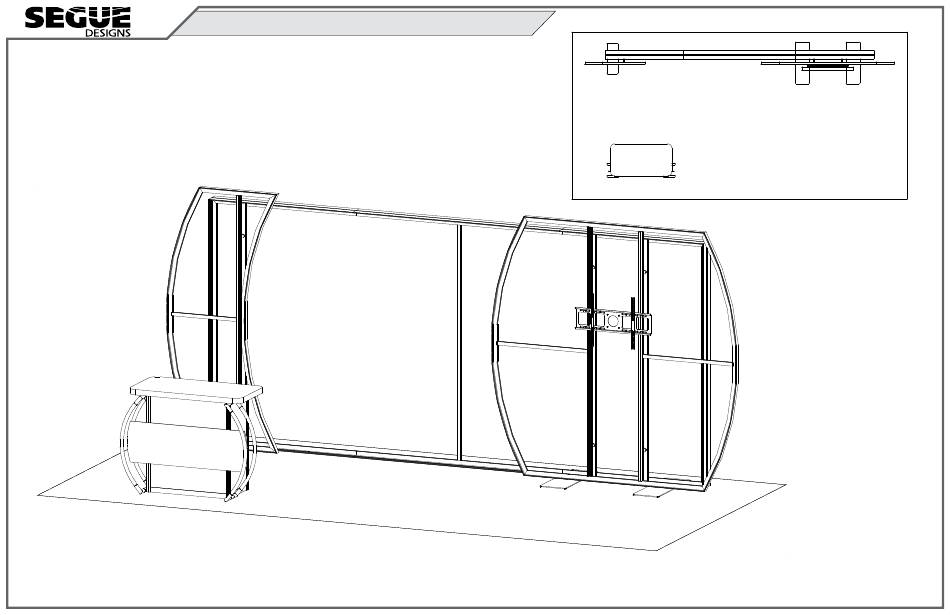

- Page 1 © 2024 Order #XXXXX VK-6002 Custom Lightbox 10’ 20’ Plan View SETUP INSTRUCTIONS If you would like to tell us about your experience with your setup instructions please email us at info@classicexhibits.com...
-
Page 2: Plan View
© 2024 Order #XXXXX Plan View = 1 sq foot... -
Page 3: General Setup Instructions
© 2024 Order #XXXXX General Information General Setup Instructions - Read entire setup instruction manual prior to WARNING unpacking parts and pieces. - The setup instructions are created specifically for this configuration. - Setup instructions are laid out sequentially in steps, including exploded views with detailed explanation for assembly. - Page 4 © 2024 Order #XXXXX CEI152 Frame Assembly Slide both connectors across seam of extrusions. Disassembly Tighten all knobs. Straight Connection 1) Loosen all knobs. Straight Connector When assembling frame, first attach all straight 2) Slide connectors off of one extrusion. connectors, then attach corner connectors.
- Page 5 © 2024 Order #XXXXX SEG Installation Graphic Removal Corner A Corner B Corner D Corner C Step 1 Step 2 Step 3 It is important to first insert To remove the graphic from Insert corner A. Turn edge of Repeat Step 1 for opposite Once all corners are inserted, graphic into each alternate the frame, locate the fabric...
- Page 6 © 2024 Order #XXXXX Crate Packing CRATE PACKING Crate 1 of 1...
- Page 7 © 2024 Order #XXXXX Backwall Assembly Item Qty. Description Steps: 8” x 22” Base Plate 1) Assemble horizontals [3-4-5], [3A-4A-5A] together. 10” x 30” Base Plate CEI-152 Straight Connection detail., 2/2A 90”h CEI152 Vertical Extrusion 2) Attach horizontals [3,14] to Base Plate [1], using bolts 3/3A 56”w CEI152 Horizontal Extrusion &...
- Page 8 © 2024 Order #XXXXX Backwall Wiring & Graphic Steps: 1) Connect power cords to Supernova lights in lightbox. 2) Apply SEG Graphic to front of backwall assembly. Refer to the SEG Installation general information page. S E G G ra ph ic Power Power Break...
-
Page 9: Right Side Frame Assembly
© 2024 Order #XXXXX Right Side Frame Assembly Item Qty. Description Steps: 8/8A 99.4838” TSP49 curved Extrusion 1) Attach Standoff Barrels to back side of verticals [10,10A]. 70”w TSP49 Horizontal Extrusion Standoff Attachment detail. 10/10A 91.475”h S40 Vertical Extrusion 2) Connect horizontals [9,9A] between verticals [8,8A]. 11/11A 35.329”w Z33 Horizontal Extrusion TSP49 Corner Connection... -
Page 10: Left Side Frame Assembly
© 2024 Order #XXXXX Left Side Frame Assembly Item Qty. Description Steps: 99.4838” TSP49 curved Extrusion 1) Attach Standoff Barrels to back side of vertical [15]. 13A,13B 49.6488” TSP49 curved Extrusion Standoff Attachment detail. 30.272”w TSP49 Horizontal Extrusion 2) Connect verticals [13A-13B] together. 91.417”h S40 Vertical Extrusion TSP49 Straight Connection detail. - Page 11 © 2024 Order #XXXXX Front Frame SEG & Attachments Steps: 1) Apply SEG Graphic to the front frame assemblies.Refer to the SEG Installation general information page. 2) Install Monitor Mount to verticals [10,10A]. See Monitor Mount Attachment detail. 3) Apply SEG Blocker to back of backwall frame. When assembled SE G Blo ck er SE G Gr ap hic...
- Page 12 © 2024 Order #XXXXX MOD-1550 Counter Assembly Item Qty. Description Steps: 37.5”h S40 Vertical Extrusion w/ Door Hinge 1) Connect lower horizontals [5,6,7] between verticals [1,2,3,4]. 37.5”h S40 Vertical Extrusion 2) Slide lower infill between verticals [2,3], secure with horizontal [7A]. 37.5”h S40 Vertical Extrusion 3) Insert infills...
- Page 13 © 2024 Order #XXXXX MOD-1550 Counter Assembly (cont’d) Using Your Setup Instructions The Aero Setup Instructions are created specifically for your configuration. The instructions include an exploded view of the frame which is sequentially labeled. We encourage you to review the instructions before attempting to assemble your exhibit.
- Page 14 © 2024 Order #XXXXX MOD-1550 Counter Assembly (cont’d) Item Qty. Description Steps: 9.9A 15.28” TSP46 Curved Vertical 1) Assemble graphic frame as shown. 10,10A 44.148” TSP46 Horizontal Extrusion 2) Slide Aero frames into outer grooves of verticals [2,3]. 3) Attach graphic frame to verticals [2,3]. See Graphic Frame Attachment detail.
