SEGUE Sunrise VK-1911 Setup Instructions

© 2024
Order #XXXXX
Item Qty. Description
1 1 45"h TSP49 Vertical Extrusion w/ A10 clamps
2 1 45"h TSP49 Vertical Extrusion w/ A10 clamps
3 1 45"h TSP49 Vertical Extrusion w/ A10 clamps
4 1 45"h TSP49 Vertical Extrusion w/ A10 clamps
5 1 45"w TSP49 Horizontal Extrusion
6 1 45"w TSP49 Horizontal Extrusion
7 1 45"w TSP49 Horizontal Extrusion
8 1 45"w TSP49 Horizontal Extrusion
-- 2 Base Plate w/ Flange
A10 Clamp Attachment
Screw A10 clamp to
Vertical Extrusion.
Tighten knob to
secure Wing in place.
Clamps should NOT
be removed. Leave
attached when exhibit
is packed.

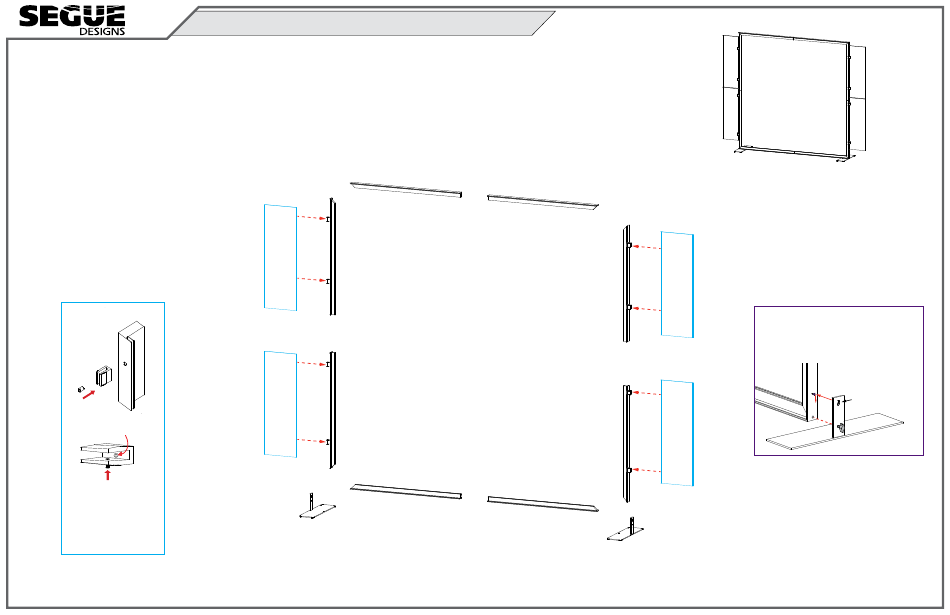

VK-1911 Sunrise - 10' x 10' Display
Steps:
Refer to the Tool-less Frame Assembly general information page.
1) Assemble extrusions [1-2], [3-4], [5-6], [7-8] together using straight connectors.
2) Connect vertical assemblies [1/2], [3/4] between horizontal assemblies [5/6], [7/8]
using corner connectors.
3) Install Base Plates to bottom corners of frame. See
4) Apply SEG graphic to front & back of frame. See the SEG Installation general information page.
5) Connect Wings to A10 clamps on vertical extrusions. See
7
*
W in g
2
*
Assemble frame
flat on ground.
*
W in g
1
*
*
5
Base
Plate
FRONT VIEW
Base Plate Attachment detail.
A10 Clamp Attachment detail.
8
*
4
W in g
*
*
W in g
3
*
*
6
Base
Plate
SETUP INSTRUCTIONS
If you would like to tell us about your experience with your setup instructions please email us at info@classicexhibits.com
When assembled
*
Base Plate Attachment
1) Place key hole over bolt on panel
& slide down.
2) Twist knob to secure connection.
bolt
key hole
threaded
hole
knob
Base Plate
