- Page 1 Video Wall Controller Quick Start Guide...
- Page 2 Document, which may include licenses obtained from third parties. ● Any part of the Document, including text, pictures, graphics, etc., belongs to Hikvision. No part of this Document may be excerpted, copied, translated, or modified in whole or in part by any means without written permission.
- Page 3 Video Wall Controller • Quick Start Guide HIKVISION SHALL NOT TAKE ANY RESPONSIBILITIES FOR ABNORMAL OPERATION, PRIVACY LEAKAGE OR OTHER DAMAGES RESULTING FROM CYBER-ATTACK, HACKER ATTACK, VIRUS INFECTION, OR OTHER INTERNET SECURITY RISKS; HOWEVER, HIKVISION WILL PROVIDE TIMELY TECHNICAL SUPPORT IF REQUIRED.
- Page 4 Video Wall Controller • Quick Start Guide Preface Applicable Models This manual is applicable to the C30S series video wall controller. Default Parameters Type Default Parameter Device Login user name: admin IP address: 192.0.0.64 SSH connection To improve system security, it is highly recommended to change password regularly. In order to protect your privacy and corporate data and avoid network security issues, it is recommended to set strong password that meets security requirements.
- Page 5 Video Wall Controller • Quick Start Guide The socket-outlet shall be installed near the device and shall be easily accessible. Do not touch the bare components (such as the metal contacts of the inlets) and wait for at least 5 minutes, since electricity may still exist after the device is powered off.
- Page 6 Video Wall Controller • Quick Start Guide This device is suitable for use in equipment room only. Do not place the device in an environment with strong vibration, impact, or strong electromagnetic interference (ignorance can cause equipment damage). ...
-
Page 7: Table Of Contents
Video Wall Controller • Quick Start Guide TABLE OF CONTENTS Chapter 1 Introduction ....................... 1 Overview ................................1 Packing List................................1 Appearance ................................2 1.3.1 Host System ............................... 2 1.3.2 Service Board ............................. 4 Chapter 2 Installation ....................... 11 Safety Precautions .............................. 11 Install a Board .............................. -
Page 8: Chapter 1 Introduction
Video Wall Controller • Quick Start Guide Chapter 1 Introduction Overview As a new-generation FPGA-based hardware image processing device, the DS-C30S series video wall controller (hereinafter referred as the device or the controller) has a new system architecture, adopts dual data exchange technology, and uses main control board plus input board and output board. -
Page 9: Appearance
Video Wall Controller • Quick Start Guide Appearance Front View of Device Main control Power switch board Switch board Service board Rear View of Device... - Page 10 Video Wall Controller • Quick Start Guide Main Control Board Front View of Main Control Board Name Description When the board is powered on normally, the power Power LED LED is steady green. When the board runs normally, the active LED is steady Active LED green.
- Page 11 Video Wall Controller • Quick Start Guide Name Description When the board is powered on normally, the power LED Power LED is steady green. When the board runs normally, the active LED is flashing Active LED green. Reserved, used to connect external devices such as USB 2.0 port mouse, keyboard, USB flash drive, etc.
- Page 12 Video Wall Controller • Quick Start Guide No. Name Description When the board is powered on normally, the power Power LED LED is steady green. When the board runs normally, the active LED is Active LED flashing green. VGA video input port Provide 4 ports for VGA video input.
- Page 13 Video Wall Controller • Quick Start Guide DP Input Board Front View of DP Input Board No. Name Description When the board is powered on normally, the Power LED power LED is steady green. When the board runs normally, the active LED is Active LED flashing green.
- Page 14 Video Wall Controller • Quick Start Guide Name Description When the board is powered on normally, the Power LED power LED is steady green. When the board runs normally, the active LED is Active LED flashing green. DVI video input port Provide 4 ports for DVI video input.
- Page 15 Video Wall Controller • Quick Start Guide HDMI Input Board Front View of HDMI Input Board No. Name Description When the board is powered on normally, the Power LED power LED is steady green. When the board runs normally, the active LED is Active LED flashing green.
- Page 16 Video Wall Controller • Quick Start Guide HDMI UHD Output Board Front View of HDMI UHD Output Board No. Name Description When the board is powered on normally, the Power LED power LED is steady green. When the board runs normally, the active LED is Active LED flashing green.

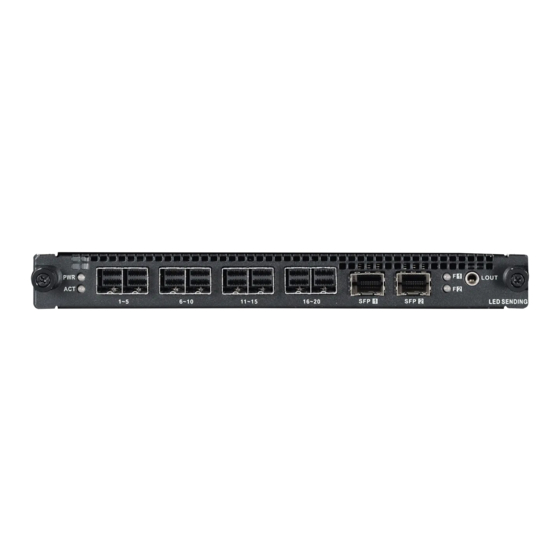

- Page 17 Video Wall Controller • Quick Start Guide LED Sending Card Front View of LED Sending Card No. Name Description When the board is powered on normally, the Power LED power LED is steady green. When the board runs normally, the active LED is Active LED flashing green.
-
Page 18: Chapter 2 Installation
Video Wall Controller • Quick Start Guide Chapter 2 Installation Safety Precautions As a high-precision, system-level electronic product, the device should be installed and maintained by professionals. In order to avoid personal and property injury, please read the safety precautions in this section carefully before installation. -
Page 19: Install A Board
Video Wall Controller • Quick Start Guide Power Supply Requirements The device supports 100 VAC to 240 VAC@50/60 Hz power supply. To ensure the stable operation of the device, it is recommended to install UPS for power supply. Anti-Interference Requirements ... - Page 20 Video Wall Controller • Quick Start Guide 档板 Baffle Remove the Baffle Do not remove the baffle from the empty slot to avoid affecting the ventilation. Insert a service board into the slot. Service 业务板 board Insert a Service Board Push the service board to the bottom.
-
Page 21: Install The Device In The Rack
Video Wall Controller • Quick Start Guide Secure the Service Board to the Slot Install the Device in the Rack The device is designed according to 8 U standard rack architecture. The front weight and rear weight of the device are inconsistent. Lift the device with cautious. Prepare the rack and rack bracket by yourself. -
Page 22: Connect Cables
Video Wall Controller • Quick Start Guide Mounting Mounting bracket bracket Fixed screw Fixed screw Mounting Mounting bracket handle bracket handle Fixed screw Fixed screw Rack Mount the 8 U Device Connect Cables Connecting the grounding cable can release the excessive voltage and current induced by lightning shock. - Page 23 Video Wall Controller • Quick Start Guide Connect the Grounding Cable to the Grounding Row Without Grounding Row Drive an angle steel (4) or steel pipe into the ground (3) of at least 0.5 m. Weld one end of the grounding cable (2) to the angle steel or steel pipe and treat the welding points with corrosion protection (electroplate or coating).
-
Page 24: Connect The Network Cable
Video Wall Controller • Quick Start Guide Connect the Grounding Cable to the Ground The device is connected to the network through networking equipment such as switches. The following figure shows the network connection between the device and switch through a network port on the switch board. -
Page 25: Connect The Power Cord
Video Wall Controller • Quick Start Guide Switch 交换板 board Switch Board Network Connection It is recommended to use CAT 6 Ethernet cables for connection. By default, two Gigabit Ethernet ports on the device are not aggregated. Configure the port aggregation on the connected switch. -
Page 26: Chapter 3 Get More Information
Video Wall Controller • Quick Start Guide Chapter 3 Get More Information Scan the QR code below to get the user manual. The following operations require network data traffic and are recommended to be performed in a Wi-Fi environment. User Manual... - Page 27 UD37064B-B...
