ANTAIRA INJ-C200G-PASS-T Quick Installation Manual

Antaira Technologies
INJ-C200G-PASS-T
Industrial Gigabit Passive PoE Injector;
EOT: -40°C ~ 75°C
Quick Installation Guide
Version 1.0
(December 2023)
Tel: 1-844-268-2472
Fax: 1-714-671-9944
www.antaira.com
Package Check List
The package contains the following items:
⚫
INJ-C200G-PASS-T
⚫
Wall mounting bracket set with screws

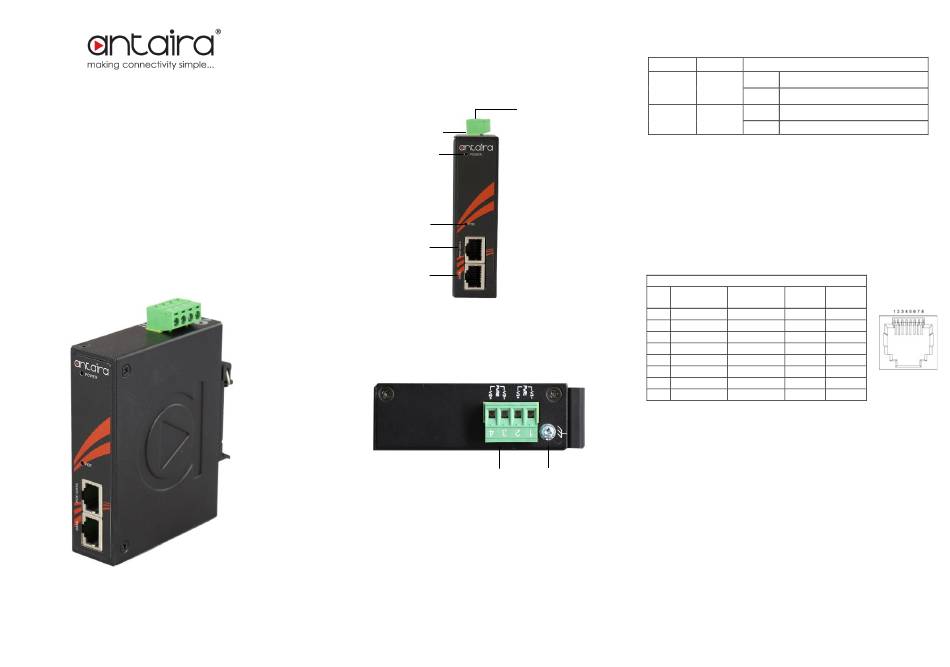

Front Panel Layout
Grounding Screw
(Behind)
LED for Power
LED for PoE Status
10/100/1000Tx RJ45 with PoE
10/100/1000Tx RJ45
Top Panel View
INJ-C200G-PASS-T top panel is equipped with one 4-pin
removal terminal block connector for dual DC power inputs
(12~55VDC).
Terminal Block
Product Overview
System Interface/Performance

2*10/100/1000BaseT(X) with 1*PoE (90W/Port)

Overload Current Protection
Power Input & Connection

DC 12~55V a 4-Pin Removal Terminal Block
Operating Temperature

Extended Operating Temperature (-T): -40°C to 75°C
Case/Installation

IP30 Protection

Installation in a Pollution Degree 2 Industrial Environment

DIN-Rail and Wall Mount Design
LED Indicators
LED
Power
4-Pin Removal Terminal Block
(Power Input)
PoE
Quick Installation
Ethernet Ports
RJ45 Ports (Auto MDI/MDIX)
All RJ45 ports are auto-sensing for 10Base-T, 100Base-TX, and
1000Base-T(X) device connections. Please follow the wiring pin
assignment table below for Ethernet port installation.
Pins T568A Color
Pin 1 white/green stripe
Pin 2 green solid
Pin 3 white/orange stripe
Pin 4 blue solid
Pin 5 white/blue stripe
Pin 6 orange solid
Pin 7 white/brown stripe
Pin 8 brown solid
Grounding Screw
Color Description
On
Power Input 1 or 2, or both is active
Green
Off
Power Input 1 and 2 is inactive
On
The port is supplying power to the powered-device
Green
Off
No powered-device attached or power supplying fails
RJ45 Ethernet Port Pin Outs
10Base-T, 1000
T568B Color
100Base-TX Base-T(X)
white/orange stripe Rx+ TP0+
orange solid Rx- TP0-
white/green stripe Tx+ TP1+
blue solid unused TP2+
white/blue stripe unused TP2-
green solid Tx- TP1-
white/brown stripe unused TP3+
brown solid unused TP3-
