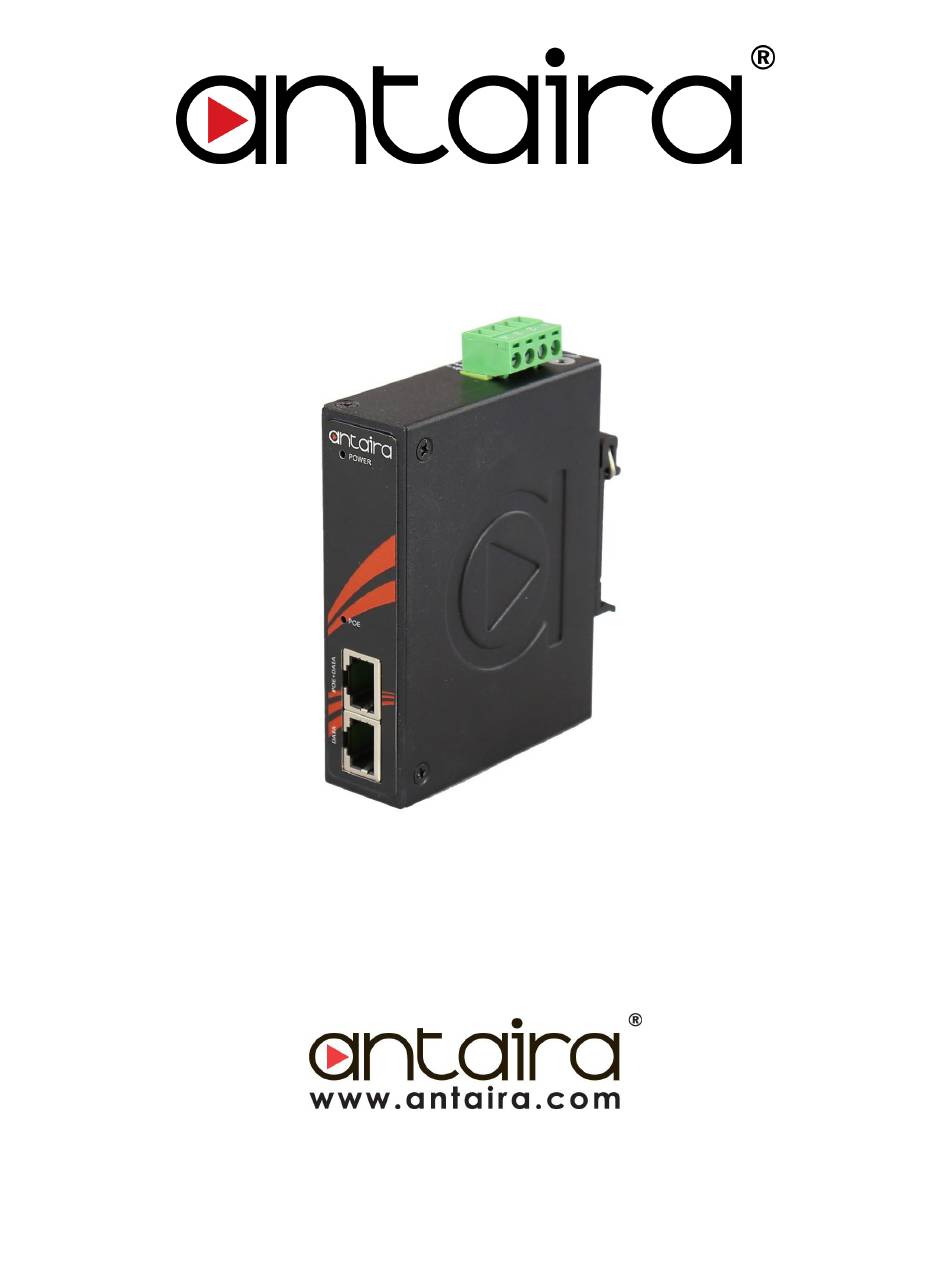

- Page 1 INJ-C200G-bt-T Industrial Gigabit IEEE 802.3bt Type 4 4PPoE Injector; EOT: -40°C ~ 75°C Hardware Manual Version 1.0 (October 2020) ...
- Page 2 Antaira Technologies, LLC may make improvements and/or changes to the product and/or specifications of the product described in this manual, without prior notice. Antaira Technologies, LLC will not be liable for any technical inaccuracies or typographical errors found in this guide. Changes are periodically made ...
- Page 3 Antaira Technologies - Industrial PoE Injector INJ-C200G-bt-T - Hardware Manual - v1.0 Reorient or relocate the receiving antenna. ● ● Increase the separation between the equipment and receiver. ● Connect the equipment into an outlet on a circuit different from that to which the receiver is ...
- Page 4 Antaira Technologies - Industrial PoE Injector INJ-C200G-bt-T - Hardware Manual - v1.0 Industrial PoE Injector Industrial Grade PoE Injector Hardware Manual Version 1.0 (October 2020) The manual supports the following models: ● INJ-C200G-bt-T This document is the current official release hardware manual. Please check our website ...
-
Page 5: Table Of Contents
Antaira Technologies - Industrial PoE Injector INJ-C200G-bt-T - Hardware Manual - v1.0 Table of Contents 1 Overview 1 1.1 Product Hardware Features 1 1.2 Package Contents 1 1.3 Safety Precaution 2 2 Hardware Description 3 2.1 Physical Dimensions 3 2.2 Front View Panel 4 ... -
Page 6: Overview
INJ-C200G-bt-T - Hardware Manual - v1.0 1 Overview Antaira Technologies’ INJ-C200G-bt-T is an industrial high-power IEEE 802.3bt Type 4 Power over Ethernet (PoE) injector that is backward compatible with the previous IEEE 802.3af/at standards. By utilizing multiple pairs on the RJ45 cable this industrial-grade PoE injector is capable of providing up to 97 ... -
Page 7: Safety Precaution
Antaira Technologies - Industrial PoE Injector INJ-C200G-bt-T - Hardware Manual - v1.0 1.3 Safety Precaution Attention: If the DC voltage is supplied by an external circuit, please use a protection device on the power supply input. The industrial PoE injector’s hardware specs, ports, cabling information, and wiring ... -
Page 8: Hardware Description
Antaira Technologies - Industrial PoE Injector INJ-C200G-bt-T - Hardware Manual - v1.0 2 Hardware Description 2.1 Physical Dimensions Figure 2.1 , below, shows the physical dimensions of this product series: (W x D x H) is 26mm x 75mm x 95mm ... -
Page 9: Front View Panel
Antaira Technologies - Industrial PoE Injector INJ-C200G-bt-T - Hardware Manual - v1.0 2.2 Front View Panel Figure 2.2 , below, shows the front panel of the product series: Figure 2.2 - Front View Panel WARNING! Airflow around the switch must be unrestricted. To prevent the switch from overheating, ... -
Page 10: Top View Panel
Antaira Technologies - Industrial PoE Injector INJ-C200G-bt-T - Hardware Manual - v1.0 2.3 Top View Panel Figure 2.3 , below, shows the top panel of the product series: Figure 2.3 - Top View Panel 2.4 LED Indicators There are LED light indicators located on the front panel of the industrial PoE injector that display the ... -
Page 11: Cabling
Antaira Technologies - Industrial PoE Injector INJ-C200G-bt-T - Hardware Manual - v1.0 RJ45 Pin Assignments ● Crossover Cable Straight Through Cable Pin Number / Signal Pin Number / Signal Pin Number / Signal Pin Number / Signal 1 / RX+ ... -
Page 12: Wiring The Power Inputs
Antaira Technologies - Industrial PoE Injector INJ-C200G-bt-T - Hardware Manual - v1.0 2.7 Wiring the Power Inputs C aution: Please follow the steps below when inserting the power wire. A ttention: Veuillez suivre les étapes ci-dessous lors de l'insertion du câble d'alimentation. ... -
Page 13: Grounding Note
Antaira Technologies - Industrial PoE Injector INJ-C200G-bt-T - Hardware Manual - v1.0 2.8 Grounding Note Grounding and wire routing help limit the effects of noise due to Electromagnetic Interference (EMI). Run the ground connection from the ground screw to the grounding surface before connecting devices. The grounding screw symbol is shown below in ... -
Page 14: Mounting Installation
Antaira Technologies - Industrial PoE Injector INJ-C200G-bt-T - Hardware Manual - v1.0 3 Mounting Installation 3.1 DIN-Rail Mounting The DIN-Rail is pre-installed on the industrial PoE injector from the factory. If the DIN-Rail is not on the industrial PoE injector, please see F igure 3.1 to learn how to install the DIN-Rail on the switch. ... -
Page 15: Wall Mounting
Antaira Technologies - Industrial PoE Injector INJ-C200G-bt-T - Hardware Manual - v1.0 Figure 3.2 - Insert the Switch on the DIN-Rail Figure 3.3 - Stable the Switch on the DIN-Rail 3.2 Wall Mounting Follow the steps below to mount the industrial PoE injector using the wall mounting bracket as shown ... - Page 16 Antaira Technologies - Industrial PoE Injector INJ-C200G-bt-T - Hardware Manual - v1.0 Figure 3.4 - Remove DIN-Rail bracket from the Switch Below, in F igure 3.5 are the dimensions of the wall mounting bracket. Figure 3.5 - Wall Mounting Bracket Dimensions ...
-
Page 17: Hardware Installation
Antaira Technologies - Industrial PoE Injector INJ-C200G-bt-T - Hardware Manual - v1.0 4 Hardware Installation 4.1 Installation Steps This section will explain how to install the industrial PoE injector: C aution: This device is intended for indoor use. A ttention: Cet appareil est destiné à une utilisation en intérieur. ... -
Page 18: Maintenance And Service
Antaira Technologies - Industrial PoE Injector INJ-C200G-bt-T - Hardware Manual - v1.0 7. When all connections are set, the installation is complete. 4.2 Maintenance and Service ● If the device requires servicing of any kind, the user is required to disconnect and remove it from ... - Page 19 Antaira Technologies - Industrial PoE Injector INJ-C200G-bt-T - Hardware Manual - v1.0 Please contact Antaira for technical support service if the problem still cannot be ○ resolved. ● If the industrial switch LED indicators are normal and the connected cables are correct but the ...
-
Page 20: Technical Specifications
Antaira Technologies - Industrial PoE Injector INJ-C200G-bt-T - Hardware Manual - v1.0 5 Technical Specifications Table 5.1 has the technical specifications for this product series. Technology IEEE 802.3 10Base-T Ethernet IEEE 802.3u 100Base-TX Fast Ethernet Standards IEEE 802.3ab 1000Base-T Gigabit Ethernet ... - Page 21 (Antaira US Headquarter) + 844-268-2472 (Antaira Europe Office) +48-22-862-88-81 (Antaira Asia Office) +886-2-2218-9733 Please report any problems to Antaira: www.antaira.com / upport@antaira.com www.antaira.eu / nfo@antaira.eu www.antaira.com.tw / nfo@antaira.com.tw Any changes to this material will be announced on the Antaira website. 16 ...
