Omron V680 Specifications

Conforms to ISO/IEC 18000-3 (ISO/IEC 15693) Standards
V680 RFID
DeviceNet ID Slave

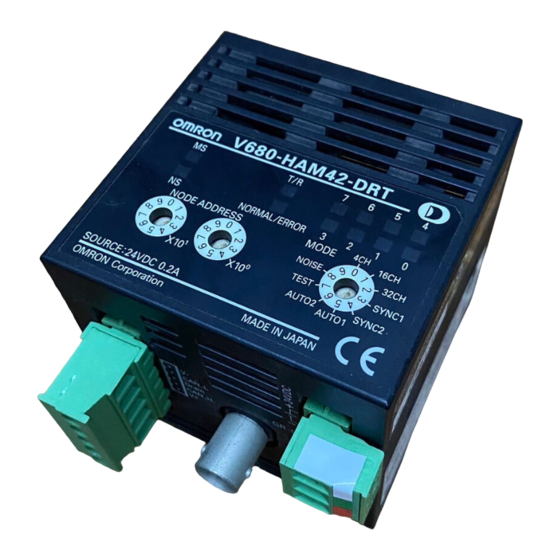

V680-HAM42-DRT
Read and write up to 58 bytes of data.
DeviceNet makes information
management at the production site
simpler, more flexible, and more open.
Slave I/O
Lineup includes 1K, 2K, 8K, and 32K ID Tags.
The wide lineup includes super-compact ID Tags with an 8-mm diameter that can be embedded in metal, as well as long-life ID Tags capable of 10 billion accesses.
Access Up to 58 Bytes of Data.
Improve Communications Performance with the Master Unit.
Operating modes include 4-byte, 26-byte, and 58-byte Access Modes, and a Noise Measurement Mode.
You get improved tact time, and simplified startup and maintenance.
V600-HAM42-DRT-compatible Access Modes allow the application of existing programs.
A special function greatly reduces communications data with the Master Unit of the PLC for even easier application.
Powerful Functions in a Compact Size.
The compact size of 65 × 65 × 65 mm reduces installation space.
The DeviceNet ID Slave can communicate with ID Tags and Antennas that comply with ISO/IEC 18000-3 (ISO/IEC
15693) to enable a wide variety of applications.
The V680 Antenna comes with a maximum cable length of 12.5 m, allowing it to be installed in locations away from the
control panel.
Take the V680 Overseas.
The V680 complies with international standards and radio wave regulations.
Radio wave regulation compliance is applicable to Japan, Europe, the U.S.A., and Canada. Radio wave regulation
compliance for China, Taiwan, South Korea, and Southeast Asia is pending.
I/O
DeviceNet ID Slave
V680-HAM42-DRT
The Antenna Cable is available in 2 m and 12.5 m lengths.
IP67 protection for FA environments.
Antennas
V680-HS@@
ID Tags
V680-D@@
