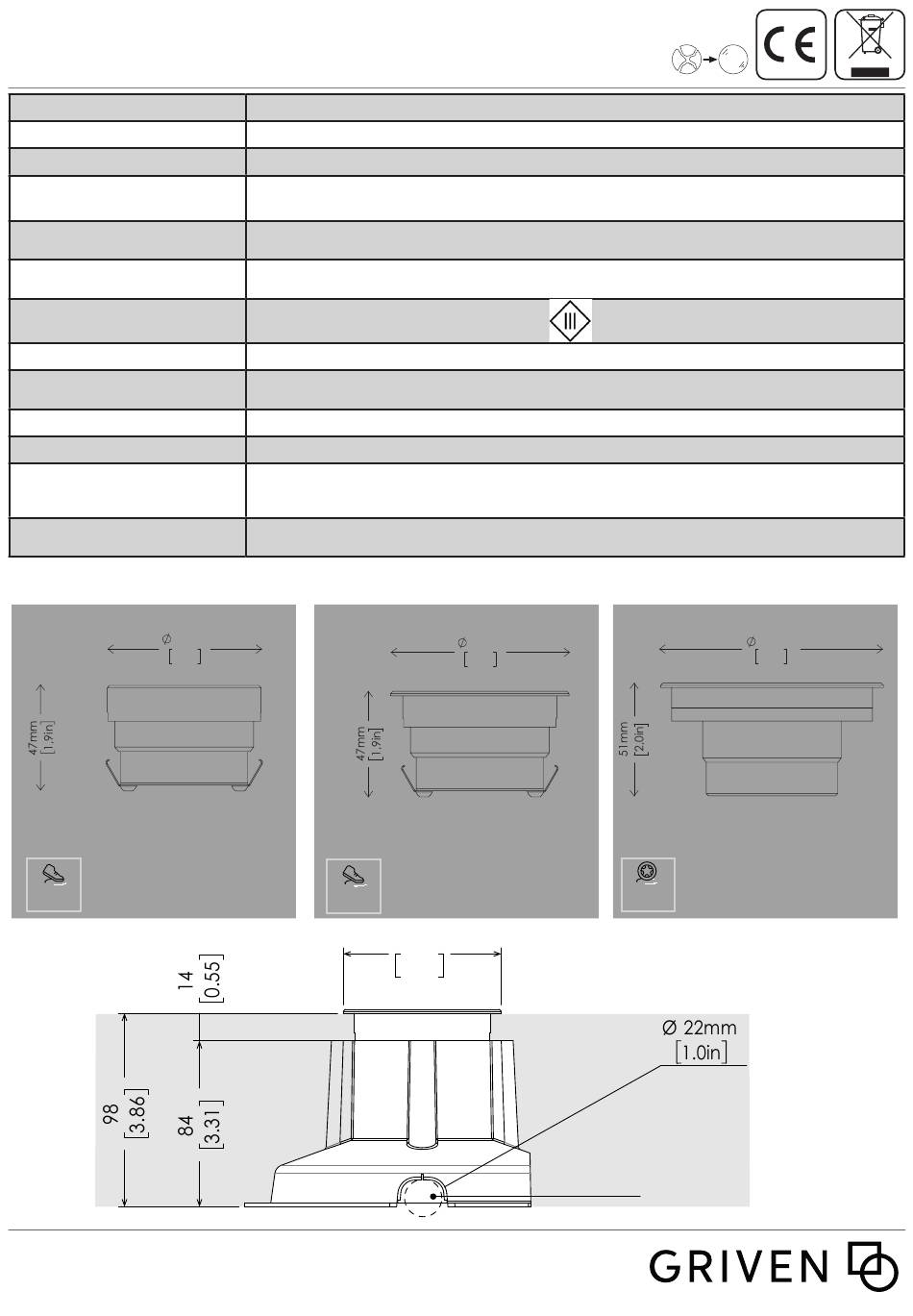

Moon Recessed
Wall Wash
Code / Codice
Power consumption
Consumo di energia
Remote Power supply
Alimentatore Remoto
Foward voltage
Electrical class
Classe elettrica
Weight / Peso
Operating temperature
Temperatura di funzionamento
IP rating / Grado IP
IK rating / Grado IK
Maximum surface temperature allo-
wed / Massima temperara Superficia-
le ammessa
Maximum static load / Massimo
Carico Statico
Size / Dimensioni
69mm
69mm
2,7in
2,7in
Moon Recessed WW - Allglass
ALL GLASS
WALK
OVER
Griven S.r.l. - Via Bulgaria, 16
46042 Castel Goffredo
Mantova - Italy
User's Manual
Rev. 2.0
Date:13/03/2024
80mm
3,1in
Moon Recessed WW - Frame
Moon Recessed WW - Frame
WALK
OVER
Tel. +39.0376.779483
© Copyright Griven 2018 -Griven reserves the right to make
changes to this product and related instructions at any time
E-mail: sales@griven.com
without prior notice and such changes shall be effective
Web: www.griven.com
immediatly
AL5417
Moon Recessed W WALL WASH
SP/NA/ME/WI/EW
8W MAX
Constant Current: 250 mA
0,9 Kg / 2 lb
-40°C to 40°C / (-40°F to 104°F)
IP65/ IP68 -1,5m
IK09 ALL GLASS and FRAME / IK10 DRIVEOVER
62°C / 144 °F
19.620 N
80mm
3,1in
Moon Recessed WW - Frame
FRAME
Ø 80
3.15
.
551226
35 V
III
80mm
3,1in
Moon Recessed WW - DriveOve
Moon Recessed WW
DRIVE
OVER
TWO SIDE
KNOCKOUT
HOLE
100mm
100mm
3,9in
3,9in
Moon R
DRIVEOVER
page 1 of 12
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Griven AL5417
Summary of Contents for Griven AL5417
- Page 1 HOLE page 1 of 12 Griven S.r.l. - Via Bulgaria, 16 Tel. +39.0376.779483 © Copyright Griven 2018 -Griven reserves the right to make changes to this product and related instructions at any time 46042 Castel Goffredo E-mail: sales@griven.com without prior notice and such changes shall be effective Mantova - Italy Web: www.griven.com...
- Page 2 Important notices - Avvisi importanti - This product must be installed in accordance with applicable national and local electrical and construction codes by a person familiar with the construction and operation of the product and the hazards involved. Failure to comply with the following installation instructions may result in death or serious injury. Questo prodotto deve essere installato secondo le normative locali, da personale specializzato.
-
Page 3: Installation - Installazione
Installation - Installazione SOLID SOIL in concrete - Prearrange an adequate support for the formwork as well as a drainage system through a pipe that allows the water to flow without creating stagnations. TERRENO SOLIDO in cemento - Predisporre un adeguato supporto alla cassaforma ed un drenaggio attraverso un tubo che permetta all’ acqua di dreanare senza creare ristagni. - Page 4 INCORRECT Ø 80 Open the formwork on one side for the passage of the corrugated pipe. If necessary, also open it on the other side. DRAINAGE SOIL PAVING 3.15 100 mm MATERIAL Rimuovere dalla cassaforma il primo tassello per il passaggio del tubo corrugato. Se necessario rimuovere anche il secondo tassello. 3.94 inch TWO SIDE KNOCKOUT...
- Page 5 CONCRETE ATTENTION: To facilitate the removal of the cap, its recomanded to use a release agent for formworks. ATTENZIONE: Per facilitare l’estrazione del tappo si consiglia di utilizzare un agente distaccante per cassaforme. SOIL PAVING DRAINAGE SOIL PAVING MATERIAL Fill with cement up to the level of the cap and clean off any material in excess that may prevent the removal of the cap Riempire con cemento fino al livello del tappo e rimuovere l’eventuale materiale in eccesso che possa impedire la rimozione del tappo.
- Page 6 Connect the fixture to the power cable. Put the heat shrink tube fitted with glue “1” on the power cable. Connect to the mains through the connectors “2”, pressing them with the appropriate tool “3”. Heat the tube using the heater “ 4” until it completely shrinks. This connection will feature an IP67 protection degree.
- Page 7 When connected, roll up the cable inside the formwork and put the fixture into the formwork itself. Dopo aver effettuato le connessioni arrotolare il cavo all’interno della cassaforma e posizionare l’apparecchio all’interno della cassaforma. SECTION VIEW CONCRETE DRAINAGE MATERIAL HOLE 70 mm page 7 of 12 Moon Rev.
- Page 8 Configuration scheme - MOON RECESSED W Schemi di configurazione - MOON RECESSED W MINIMUM 1 FIXTURE MAXIMUM 3 FIXTURE Distance between PSU and the last xture: 20 meters CABLE/CAVI USE/UTILIZZO RED / ROSSO BLACLK / NERO 1.5 m Fixture Cable length AL5295/ 250 LED -...
- Page 9 Configuration scheme - MOON RECESSED W ULTRASPOT Schemi di configurazione - MOON RECESSED W ULTRASPOT MINIMUM 1 FIXTURE MAXIMUM 8 FIXTURE Distance between PSU and the last xture: 42 meters CABLE/CAVI USE/UTILIZZO RED / ROSSO BLACLK / NERO 1.5 m Fixture Cable length AL4324/800 220-240 Vac 50/60 Hz PSU DALI...
- Page 10 Configuration scheme - MOON RECESSED RGBW and DW Schemi di configurazione - MOON RECESSED RGBW and DW MAXIMUM 10 FIXTURE Distance between PSU and the last fixture: max. 50 meters AL4487/2 Dmx DATA + CONTROLLER Dmx DATA - CABLE/CAVI USE/UTILIZZO BROWN / MARRONE BLUE / BLU WHITE / BIANCO...
-
Page 11: Dmx Chart
DMX Chart RGBW and DW Mode Channel Function Value Mode 4 channel - “RGBW 4ch” 0-100% Red 0-255 0-100% Green 0-255 0-100% Blue 0-255 0-100% White 0-255 Mode 5 channel - “RGBW 5ch” 0-100% Red 0-255 0-100% Green 0-255 0-100% Blue 0-255 0-100% White 0-255... - Page 12 Note: Allowed operation only between sunset and sunrise Nota: Accensione dell’apparecchio ammessa soltanto tra gli orari di tramonto e alba Remote PSU / Alimentatori Esterni WHITE LIGHT Forward PSU IP20 PSU IP20 PSU IP67 voltage Current Code Description ONLY ON/OFF (no dimming) AL5295/250 (DALI) AL5363/250 (DALI) 250mA...
