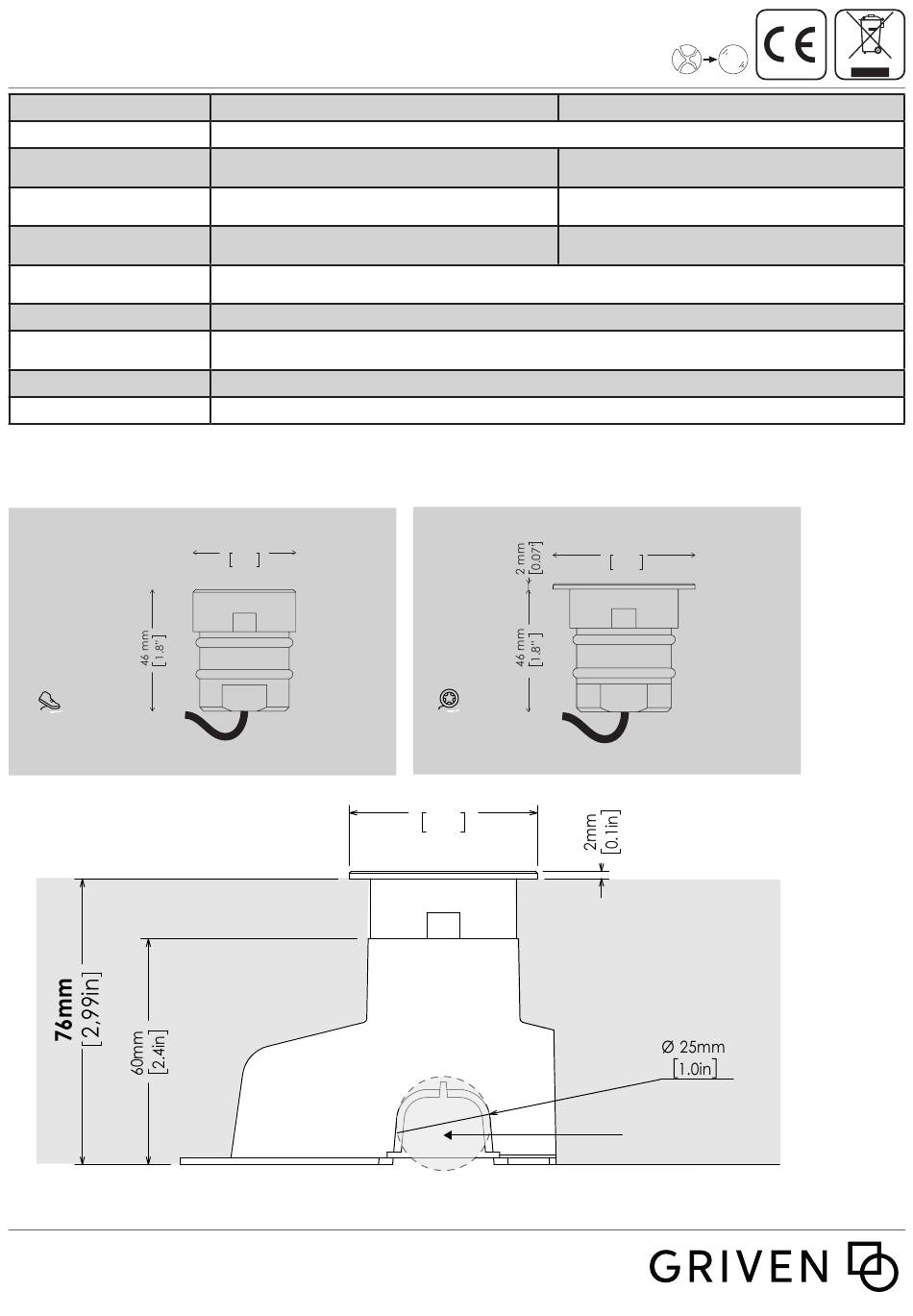

Half Moon Recessed
Code / Codice
Power consumption
Consumo di energia
Remote Power supply
Alimentatore Remoto
Foward voltage
Electrical class
Classe elettrica
Weight / Peso
Operating temperature
Temperatura di funzionamento
IP rating / Grado IP
IK rating / Grado IK
Size / Dimensioni
WALK
OVER
ALL GLASS
Griven S.r.l. - Via Bulgaria, 16
46042 Castel Goffredo
Mantova - Italy
User's Manual
Rev. 1.0
Date:23/08/2022
Half Moon Recessed W
Constant Current: 700mA
Ø 39 mm
1.5"
Tel. +39.0376.779483
© Copyright Griven 2018 -Griven reserves the right to make
changes to this product and related instructions at any time
E-mail: sales@griven.com
without prior notice and such changes shall be effective
Web: www.griven.com
immediatly
AL5317
2.5W
3.2 V
0,4 Kg / 0,88 Lb
-30°C to 40°C / (-22°F to 104°F)
Ø 39 mm
Ø 50 mm
1.5"
1.96"
DRIVE
OVER
FRAME
Ø 50mm
2.0in
.
551180
Half Moon Recessed RGBW /DW
1.5W MAX
Constant Current: 150mA
III
IP68
IK09
Ø 50 mm
1.96"
TWO SIDE
KNOCKOUT HOLE
page 1 of 9
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Griven Half Moon Recessed
Summary of Contents for Griven Half Moon Recessed
- Page 1 KNOCKOUT HOLE page 1 of 9 Griven S.r.l. - Via Bulgaria, 16 Tel. +39.0376.779483 © Copyright Griven 2018 -Griven reserves the right to make changes to this product and related instructions at any time 46042 Castel Goffredo E-mail: sales@griven.com without prior notice and such changes shall be effective Mantova - Italy Web: www.griven.com...
- Page 2 Replaceable (LED only) light source by a professional professionista This product contains a light source of energy efficiency Questo prodotto contiene una sorgente luminosa di classe class: di efficienza energetica: page 2 of 9 Half Moon Recessed Rev. 1.0 551130...
-
Page 3: Installation - Installazione
Open the formwork on one side for the passage of the corrugated pipe. If necessary, also open it on the other side. DRAINAGE SOIL PAVING MATERIAL Rimuovere dalla cassaforma il primo tassello per il passaggio del tubo corrugato. Se necessario rimuovere anche il secondo tassello. page 3 of 9 Half Moon Recessed Rev. 1.0 551130... - Page 4 Riempire con cemento fino al livello del tappo e rimuovere l’eventuale materiale in eccesso che possa impedire la rimozione del tappo. page 4 of 9 FIXTURE CABLE Half Moon Recessed Rev. 1.0 551130 TILED CONCRETE 2 END TO END CONNECTOR...
- Page 5 La connessione così ottenuta ha un grado di protezione IP67. TILED CONCRETE CONCRETE FIXTURE CABLE 2 END TO END CONNECTOR 1 HEAT SHRINK TUBE SUPPLY CABLE page 5 of 9 76 mm Half Moon Recessed Rev. 1.0 551130 2,99 inch...
-
Page 6: Section View
Dopo aver effettuato le connessioni arrotolare il cavo all’interno della cassaforma e posizionare l’apparecchio all’interno della cassaforma. SECTION VIEW CABLE HOLE HOLE 40 mm 40 mm page 6 of 9 Half Moon Recessed Rev. 1.0 551130... - Page 7 3 WAY JUNCTION BOX 3 WAY JUNCTION BOX 3 WAY JUNCTION BOX CABLE/CAVI USE/UTILIZZO LED + 120-277 Vac LED - Brown/Marrone 50- 60 Hz AL4324/700 POWER SUPPLY UNIT Blue/Blu Costant Current 900 mA page 7 of 9 Half Moon Recessed Rev. 1.0 551130...
- Page 8 LED OUTPUT 4 + LED OUTPUT 4 - LED CODE NTC + LED CODE NTC - DMX IN + DMX IN - 120-250 Vac DMX SHIELD GROUND 50- 60 Hz CABLE/CAVI USE/UTILIZZO page 8 of 9 Half Moon Recessed Rev. 1.0 551130...
- Page 9 Note: Allowed operation only between sunset and sunrise Nota: Accensione dell’apparecchio ammessa soltanto tra gli orari di tramonto e alba page 9 of 9 Half Moon Recessed Rev. 1.0 551130...
