Summary of Contents for Kogan KA90LDGFRYA

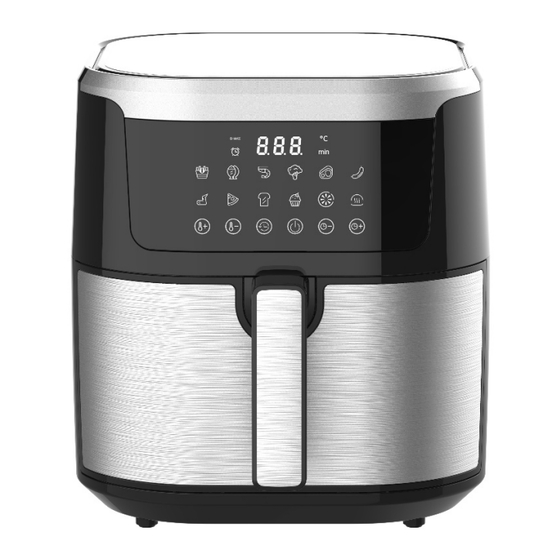

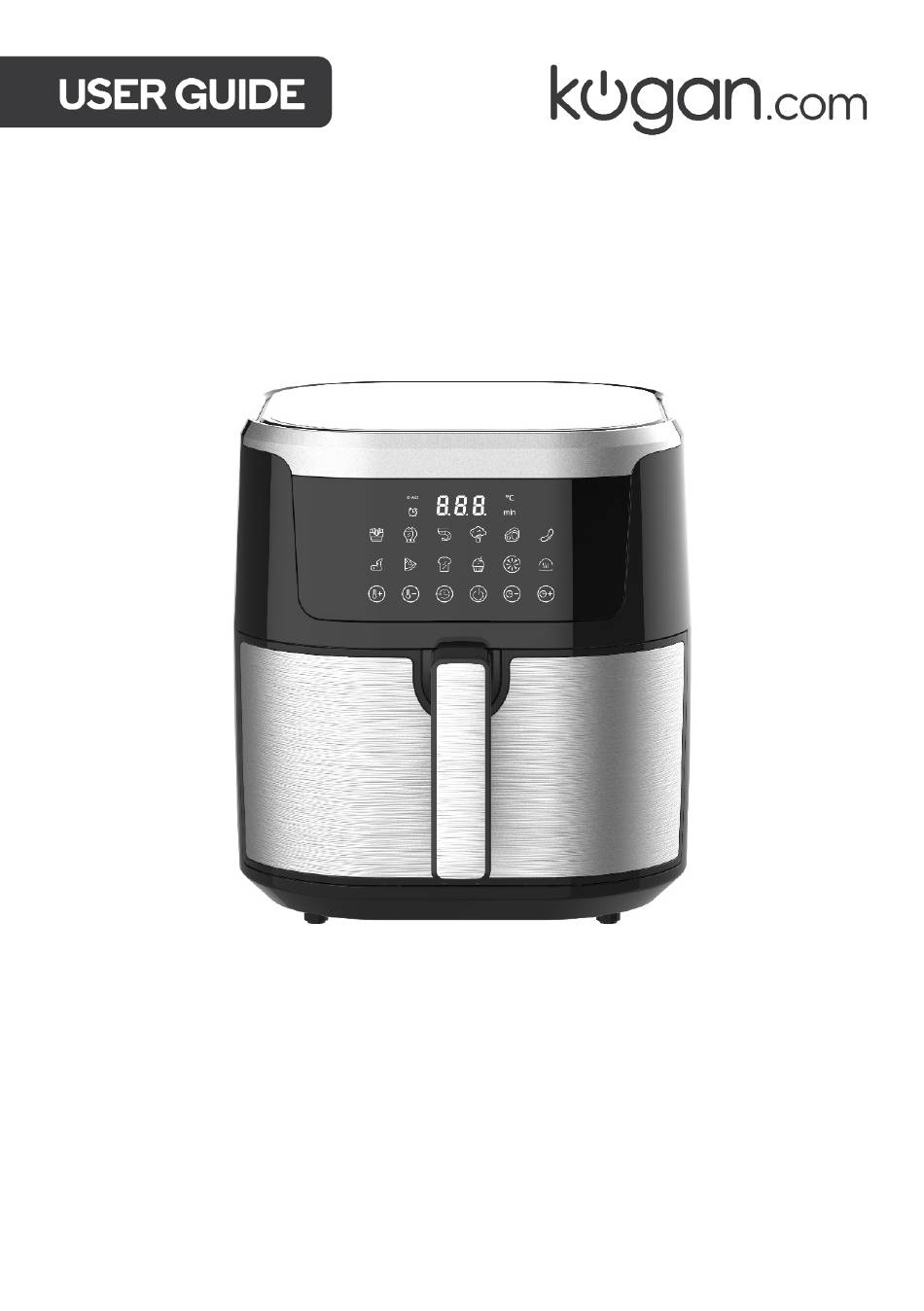

- Page 1 9L XXL DIGITAL AIR FRYER KA90LDGFRYA...
-
Page 2: Table Of Contents
Safety & Warnings Overview Before First Use Operation Cleaning & Care Troubleshooting Notes... -
Page 3: Safety & Warnings
Contact help.Kogan.com for examination, repair, or adjustment. • The use of accessory attachments not recommended by Kogan.com may cause injury. • Do not use outdoors. • Do not let the cord hang over the edge of tables or countertops or come into contact... - Page 4 • When not in use, always unplug the unit. Do not store any materials other than oven proof accessories recommended by Kogan.com in this appliance. • Do not place paper, cardboard, plastic, or similar materials inside the appliance.
- Page 5 • When using the product, the surface that is touches might become very hot. It is recommended to place a heat resistant mat under the air fryer during operation. • Do not repair the product by yourself. Insert, contact help.Kogan.com for support. • Always unplug the power after use.
-
Page 6: Overview
OVERVIEW Basket Tray Basket Handle Air Inlet Control Panel Air Outlet... - Page 7 Control Panel Shake indicator Temp. increase button Display Temp. decrease button Temperature indicator C° Delay start button Delay start indicator Power button Time indicator Time increase button Preset functions Time decrease button Keep warm button...
-
Page 8: Before First Use
BEFORE FIRST USE • Read this user guide along with all warning stickers and labels. • Remove all packaging around and inside the oven. • Place on a stable, level, heat-resistant surface, away from anything that can be damaged by heat. Keep at least 110mm distance between the electrical outlet the wall, furniture etc. -
Page 9: Operation
OPERATION Power button • Press the power button to exit the standby screen and enter the default setting state. • During setting adjustments, a short press initiates the setting process (to start operation). • During cooking, a short press cancels cooking and enters the end state. •... - Page 10 Temperature decrease button • Pressing the temperature decrease button raises the temperature by 5°C with each press, accompanied by a buzzer sound. • Press and hold the holding the button, will rapidly decrease the temperature, accompanied by a continuous buzzer sound. •...
- Page 11 Shake/Halfway indicator • During the cooking process, the indicator flickers. • At halfway through the set cooking time, the indicator flashes accompanied by 10 buzzer sounds. • The delay start indicator is used to display the working status of the delay start feature.
- Page 12 Preparation Preparation: Before starting, ensure the basket tray is clean and dry. Place the desired food items into the basket, making sure not to overcrowd them for even cooking. 10. Temperature Control: Set the desired cooking temperature using the temperature control buttons.
- Page 13 Preset Programs Default Preset Default time Temp range Time range temperature French fries 180°C 15MINS 80-200°C Up to 1 HOUR Fish 180°C 30MINS 80-200°C Up to 1 HOUR Prawns 180°C 18MINS 80-200°C Up to 1 HOUR Broccoli 180°C 10MINS 80-200°C Up to 1 HOUR Steak 200°C...
-
Page 14: Cleaning & Care
CLEANING & CARE Regular Cleaning Routine: It is important to clean the air fryer after each use to maintain its performance and longevity. Inside and Outside Cleaning: Both the inside of the frying basket and the exterior of the air fryer are equipped with a non- stick surface. -
Page 15: Troubleshooting
TROUBLESHOOTING Error Codes If a sensor detects an open or short circuit, it triggers the abnormal alarm processing state. In this state, all power output is automatically cut off, and an abnormal code is displayed on the screen (open: E01, short: E02). Additionally, an "abnormal alarm buzzer" is activated at the onset of the alarm. - Page 16 If some food ingredients lay on the top or touch Some food ingredients with other food Food ingredients not should be overturned ingredients (e.g. fried baked evenly during the process of chips), then they must be cooking. overturned in the process of cooking The chosen food must be Add some oil on the food...
-
Page 17: Notes
NOTES... - Page 20 Need more information? We hope that this user guide has given you the assistance needed for a simple set-up. For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com...
