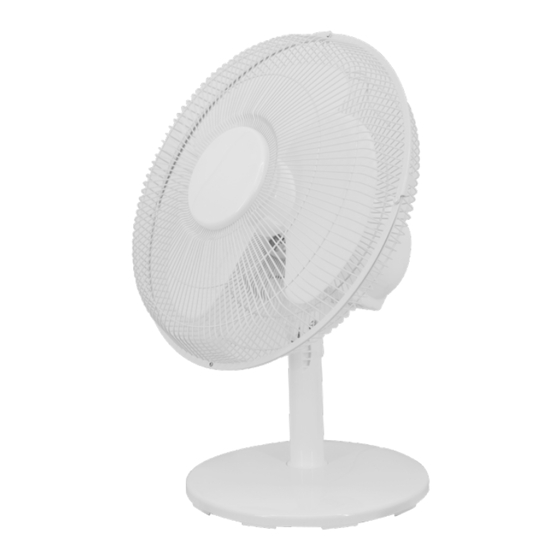

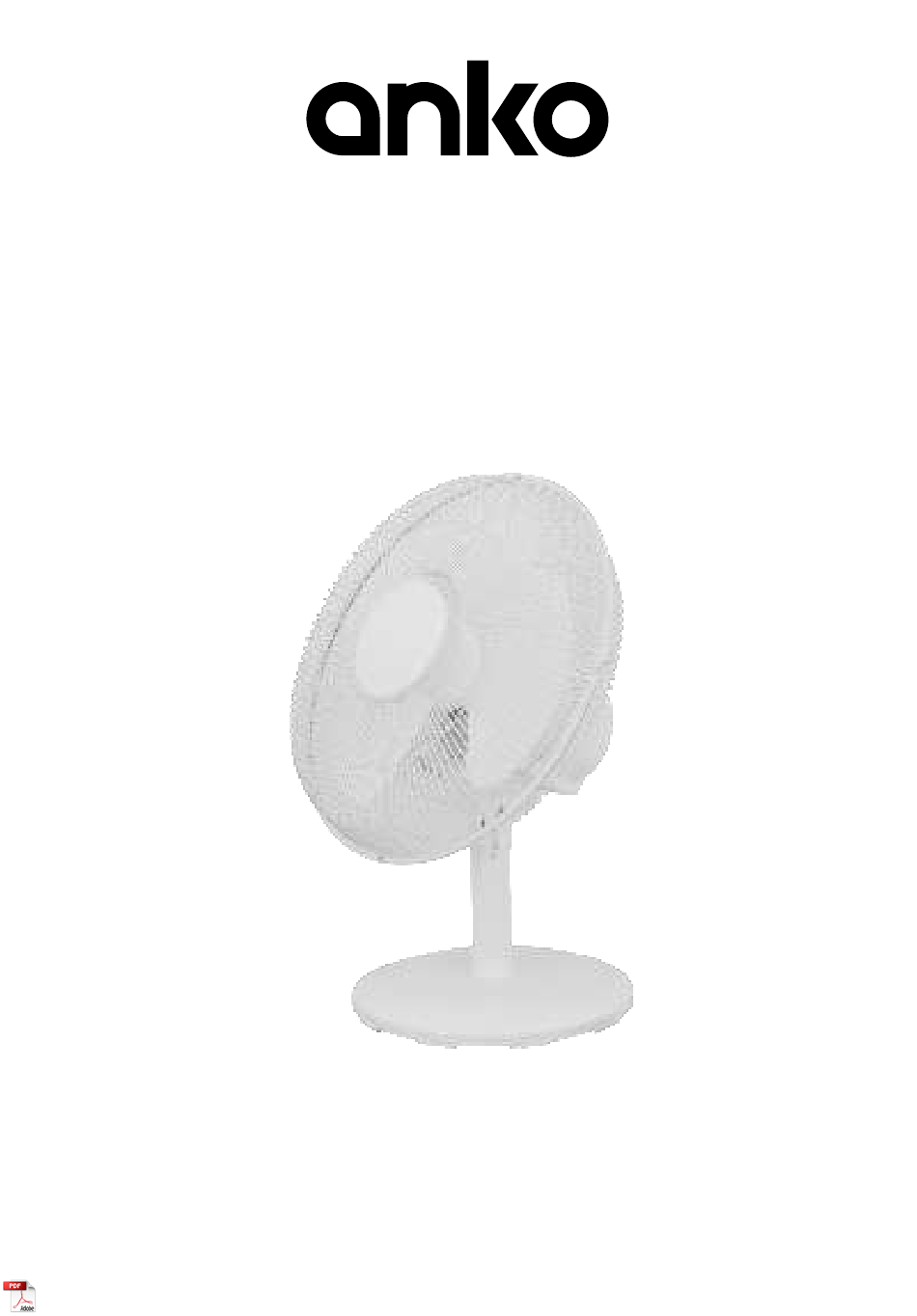

- Page 1 30cm Bench Fan User Manual Model No.: HEG30A Rev 1 Note: The specifications and/or components of this appliance are subject to change without prior notice.
- Page 2 Page 2 of 12...
-
Page 3: Table Of Contents
1 Safety Instructions ................. 4 2 Components ................... 6 3 Assembly ..................7 3.1 Base ........................7 3.2 Safety Grille and Blade ................... 8 4 Instructions for Use ............... 9 5 Care and Cleaning ................ 10 6 Storage ..................10 7 Warranty Against Defect ............. -
Page 4: Safety Instructions
1 Safety Instructions When using electrical appliances, basic safety precautions should always be followed, including the following: • Carefully read this instruction manual before using appliance. • Ensure that the fan is switched off from the supply mains before removing the guard. •... - Page 5 • Appliance should not be used outdoors, placed near a hot gas or electrical burner or placed in a heated oven. • Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus that produce heat. •...
-
Page 6: Components
2 Components 3 Speed Rotary Switch Safety Grille Oscillating Head Tilt Adjustable Note: Image may differ slightly too actual model. Page 6 of 12... -
Page 7: Assembly
3 Assembly 3.1 Base The body of the fan needs to be fixed to its base. To do this, first unscrew the plastic nut from the post. Place the round base on a flat level surface and then insert the end of the post through the hole, then flip over on its side. -
Page 8: Safety Grille And Blade
3.2 Safety Grille and Blade Your Fan has been boxed unassembled to minimise packaging waste. Each part is designed to fit together and be disassembled easily for cleaning or storage. To assemble the safety grille and blade assembly, take the motor assembly and place the back safety grille into position ensuring the safety grille fits onto the locating lugs. -
Page 9: Instructions For Use
Open up all locking clips on the sides of the front safety grille Place the front safety grille into position by positioning the locating tab at the top of the grille (above image) over the top of the rear grille and then secure the grille by closing the clips over the outer rim (below image). -
Page 10: Care And Cleaning
5 Care and Cleaning • Ensure that the fan is switched off from the supply mains before removing the guard. • Unplug from the power point. • Clean the motor housing and body assembly with a clean, damp cloth and wipe dry. •... -
Page 11: Warranty Against Defect
7 Warranty Against Defect 12 Month Warranty Thank you for your purchase from Kmart. Kmart Australia Ltd warrants your new product to be free from defects in materials and workmanship for the period stated above, from the date of purchase, provided that the product is used in accordance with accompanying recommendations or instructions where provided. - Page 12 Page 12 of 12...
