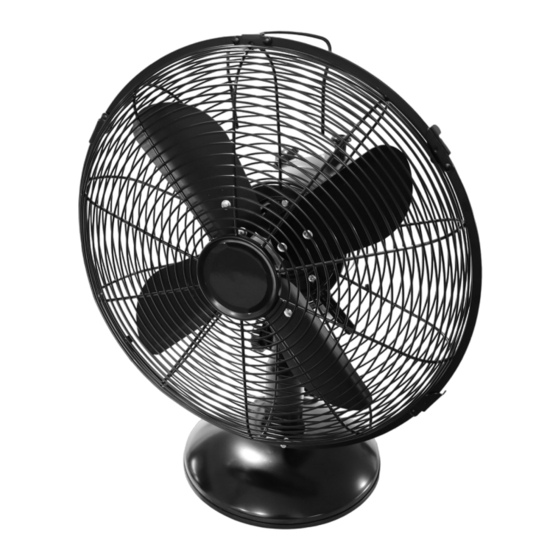

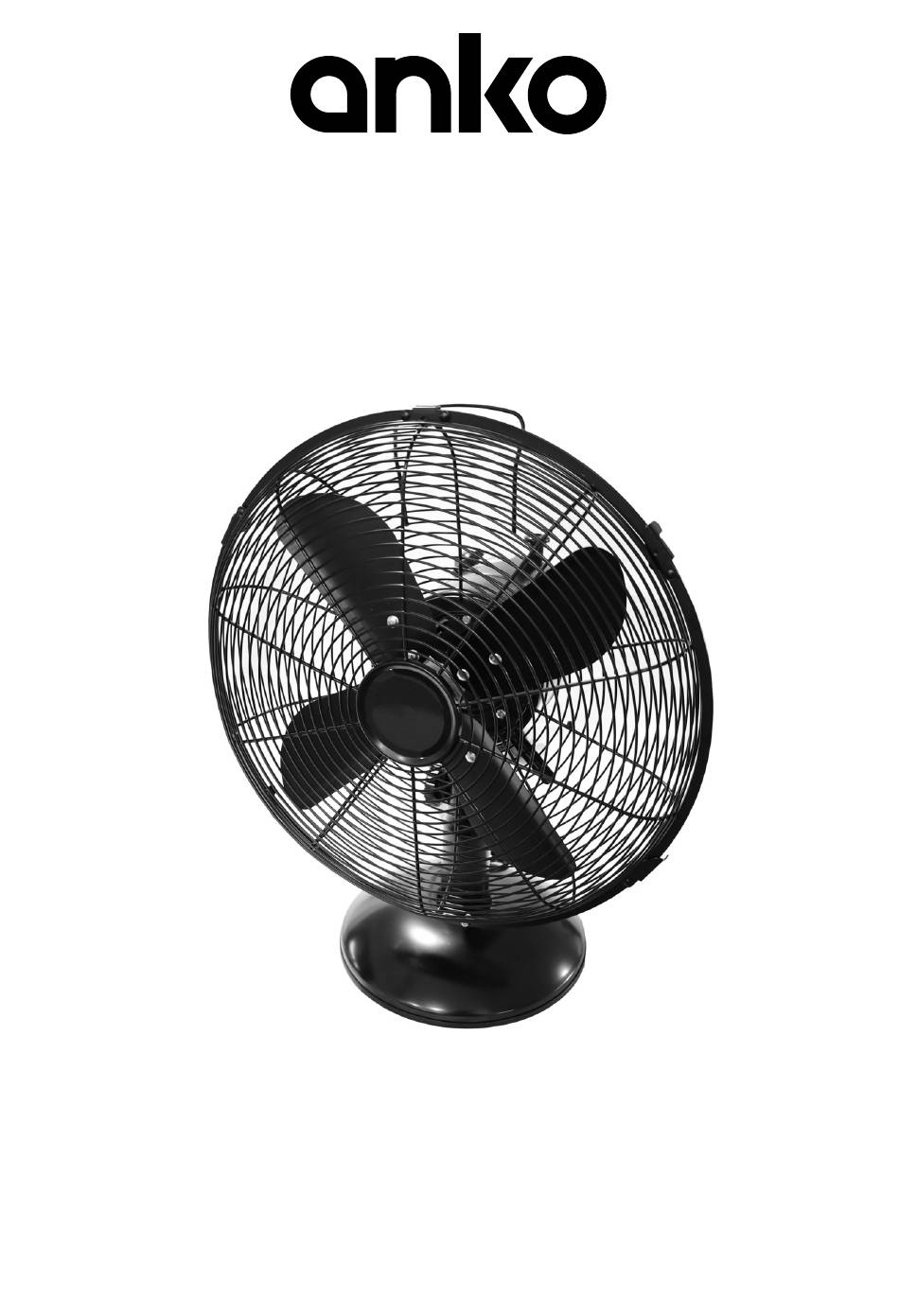

- Page 1 30cm Bench Fan User Manual Model No.: HEG30MBB Rev 2 Note: The specifications and/or components of this appliance are subject to change without prior notice.
-
Page 2: Table Of Contents
1 Safety Instructions ................. 3 2 Components ................... 5 3 Assembly ..................6 3.1 Base ........................6 3.2 Safety Grille and Fan Blade ................7 4 Instructions for Use ............... 9 4.1 Head Tilt ......................9 4.2 Fan On / Off / Speed ..................9 4.3 Oscillation ...................... -
Page 3: Safety Instructions
1 Safety Instructions When using electrical appliances, basic safety precautions should always be followed, including the following: Carefully read this instruction manual before using the appliance. • Ensure that the fan is switched off from the supply mains before removing the guard. •... - Page 4 Appliance should not be used outdoors, placed near a hot gas or electrical burner or • placed in a heated oven. Do not install near any heat sources such as radiators, heat registers, stoves, or • other appliances that produce heat. Do not operate the appliance underneath or near flammable or combustible materials •...
-
Page 5: Components
2 Components Image shown without Grille and Fan Blade for Clarity Safety Grille Tilt Stop Screw Carry Handle Tilt Adjustable Knob Base 3 Speed Rotary Switch Fan Blade Oscillating Knob Note: Image may differ slightly too actual model. Page 5 of 12... -
Page 6: Assembly
3 Assembly Base The Fan Head needs to be fixed to the base first. To do this, locate the “L” shaped Screw, the Base and the Fan Head. Locate the neck of the Fan Head into the recess in the top of the Base then flip over. Insert the threaded part of the “L”... -
Page 7: Safety Grille And Fan Blade
Safety Grille and Fan Blade To assemble the safety grille and fan blade, take the motorhead assembly and remove the 4 screws as identified. Fit the rear safety grille into position (with the handle on the back of the grille at the top) and refit the 4 screws and tighten. - Page 8 Slide the fan blade onto the spindle shaft ensuring the screw is lined up with the “flat” surface on the spindle shaft as shown. Push on until the end of the spindle shaft is flush with the end of the fan blade hole, then tighten the screw.
-
Page 9: Instructions For Use
Secure the grille by closing the clips over the outer rim. Then use the small nut and bolt in the bottom of the grilles to lock the two grilles together. 4 Instructions for Use Remove the cable tie and unravel the power cord before operation. Head Tilt The fan and motor assembly Can be tilted up and down to your desired angle. -
Page 10: Care And Cleaning
5 Care and Cleaning • Ensure that the fan is switched off from the supply mains before removing the guard. Unplug from the power point. • Clean the motor housing and body assembly with a clean, damp cloth and wipe dry. •... -
Page 11: Warranty Against Defect
7 Warranty Against Defect 12 Month Warranty Thank you for your purchase from Kmart. Kmart Australia Ltd warrants your new product to be free from defects in materials and workmanship for the period stated above, from the date of purchase, provided that the product is used in accordance with accompanying recommendations or instructions where provided. - Page 12 Page 12 of 12...
- Page 13 30cm black metal bench fan QUICK START GUIDE Please refer to the Instruction Manual for more details and images of the assembly procedure. STEP 1: SET UP THE FAN BASE Insert the threaded part of Locate the neck of the the “L”...
