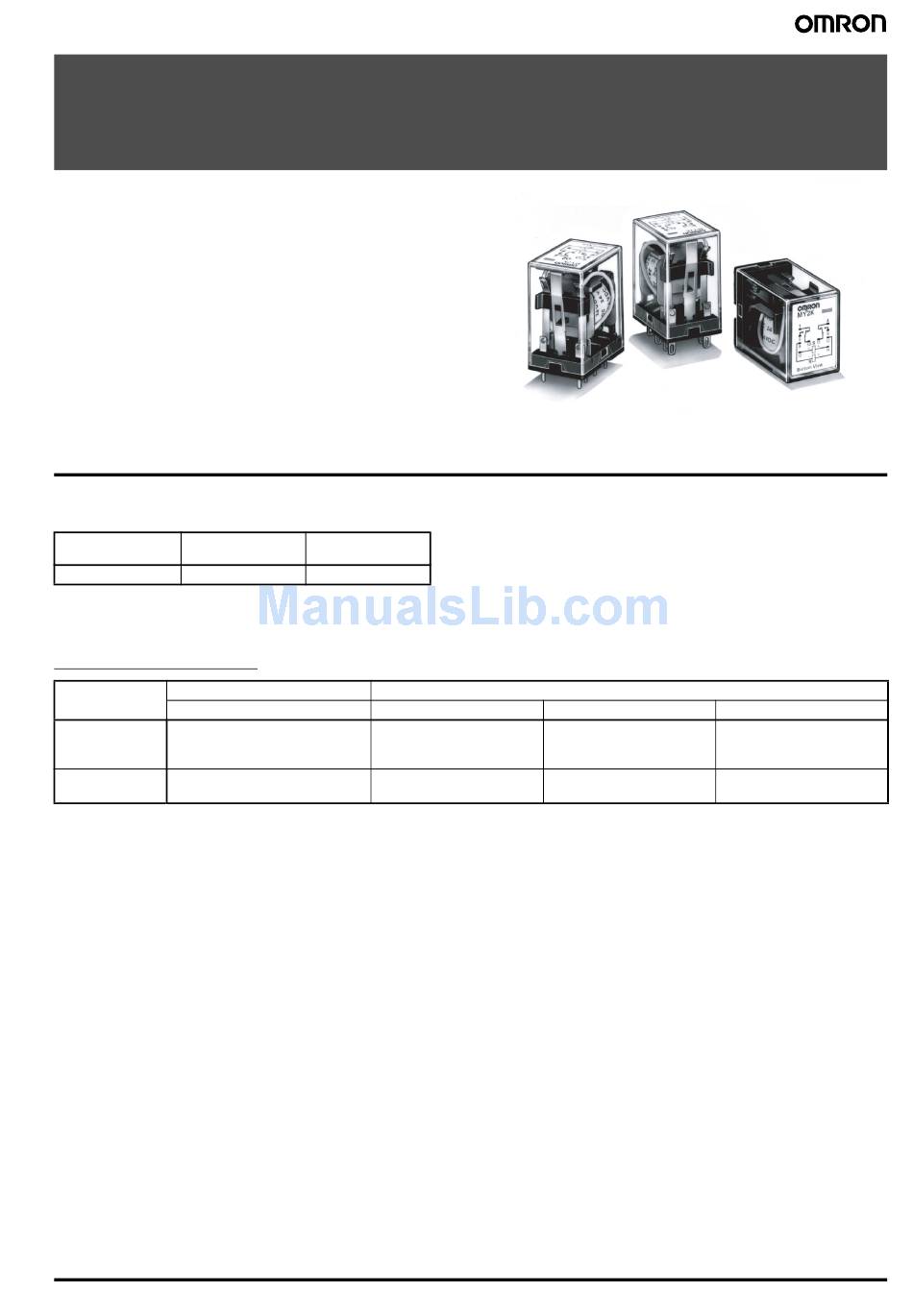

General-purpose Latching Relay
MYK
Magnetic Latching Relay Ideal for Memory
and Data Transmission Circuits
• Double-winding latch system that holds residual magnetism.
• Changes due to aging are negligible because of use of special
magnetic materials, thus ensuring long continuous holding time.
• Little change in characteristics such as contact follow, contact
pressure, etc., throughout its long life.
• Excellent vibration/shock resistance.
• Easy monitoring of ON/OFF operation thanks to the built-in op-
eration indicator mechanism.
• Same outline dimensions as the MY Miniature Power Relay.
Ordering Information
■ List of Models
Contact form
Plug-in/solder
terminal model
DPDT
MY2K
■ Accessories (Order Separately)
Connecting Sockets
Front-connecting Socket
Screw terminals
Without Relay
PYF14A-E
Hold-down Clip
PYF14A
PYF14-N
With Hold-down
---
Clip
Note: Refer to the MY Datasheet for detail information on the Relay Hold-down Clips and Relay-mounting Sockets.
PCB terminal
model
MY2K-02
Solder terminals
PY14
PY14-Y1
Back-connecting Socket
Wire-wrap terminals
PY14QN
PY14QN-Y1
General-purpose Latching Relay
PCB terminals
PY14-02
---
MYK
1
Advertisement
Related Manuals for Omron MYK
Summary of Contents for Omron MYK
- Page 1 Solder terminals Wire-wrap terminals PCB terminals Without Relay PYF14A-E PY14 PY14QN PY14-02 Hold-down Clip PYF14A PYF14-N With Hold-down PY14-Y1 PY14QN-Y1 Clip Note: Refer to the MY Datasheet for detail information on the Relay Hold-down Clips and Relay-mounting Sockets. General-purpose Latching Relay...
- Page 2 Note: 1. For AC models, the rated current values are half-wave rectified current values measured with a DC ammeter. 2. The rated current and coil resistance are measured at a coil temperature of 23°C with tolerances of +15%/–20% for AC rated current and ±15% for DC rated current, and +15% for DC coil resistance.
- Page 3 (L/R = 7 ms) (cosφ = 0.4) Switching current (A) Switching voltage (V) Switching current (A) Dimensions MY2K Ten, 1.2-dia. holes x 2.2 elliptic holes 28 max. 21.5 max. 36 max. MY2K-02 Mounting Holes (Bottom View) 13.2 12.65 28 max.
- Page 4 If the supply voltage is applied to the set and reset coils minal will result in the Relay malfunctioning. at the same time, the Relay will be put in the set state. Cat. No. J013-E1-02 In the interest of product improvement, specifications are subject to change without notice.
