Phase-sequence Phase-loss Relay

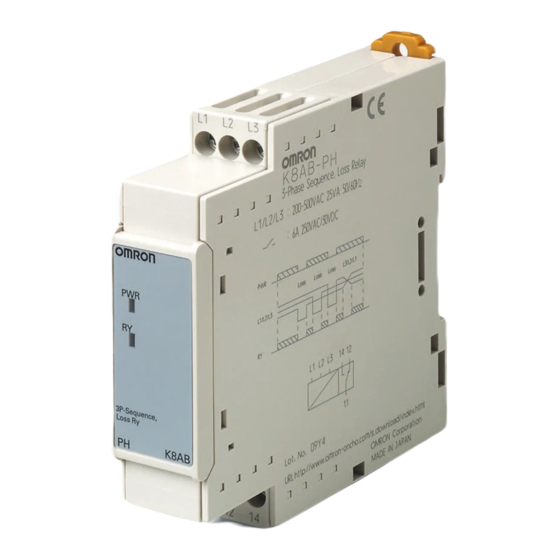

K8AB-PH
Ideal for phase sequence and phase loss
monitoring for industrial facilities and
equipment.
• Simultaneously monitor phase sequence and phase loss for
three-phase 3-wire power supplies.
• One SPDT output relay, 6 A at 250 VAC (resistive load).
• Relay warning status easily monitoring using LED indicator.
• Easy wiring with ferrules
2 × 2.5 mm
solid or 2 × 1.5 mm
2
• CE mark compliance certified by third party.
UL certification pending.
Model Number Structure
■ Model Number Legend
K8AB-@@
1
2 3
1. Basic Model
K8AB: Measuring and Monitoring Relays
2. Functions
PH:
Phase-sequence Phase-loss Relay
3. Rated Input Voltage
1:
200 to 500 VAC
Cat. No. N145-E1-01
2
standard ferrules.
Phase-sequence Phase-loss Relay
K8AB-PH
1
