Omron K8AB-TH Brochure & Specs

K8AB-TH
Protect your heating application
Temperature monitoring relay.

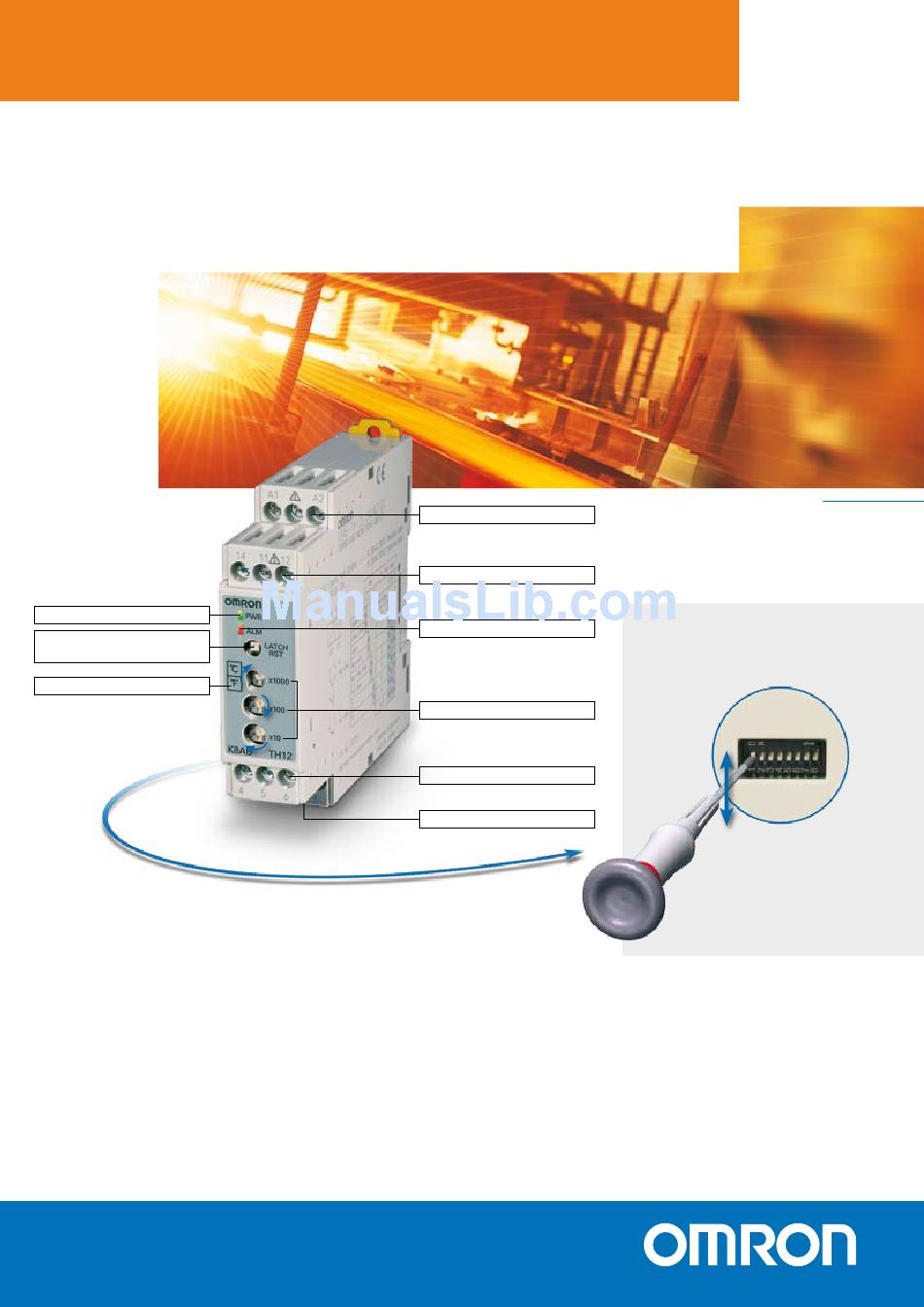

Power indicator
Output latch reset button
(hold for SV protection)
°C/°F marker

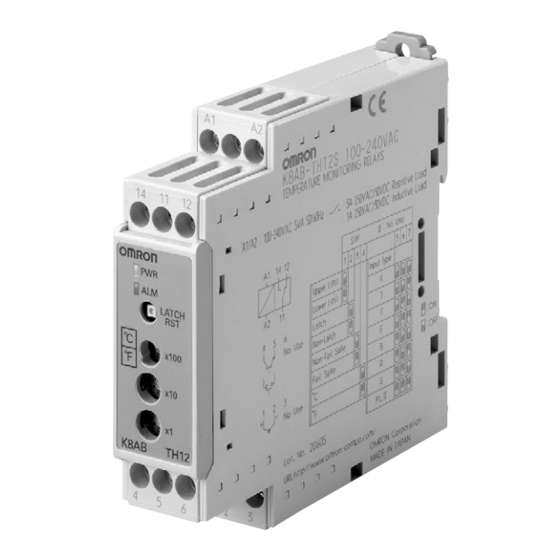

The K8AB-TH is a temperature-monitoring relay that embodies both
temperature-alarm functionality and simple ON/OFF temperature
control. The unit is designed specifically for monitoring abnormal
temperatures to prevent excessive temperature increases and
to protect equipment. It comes in a slim housing with a width
of just 22.5 mm suitable for DIN-rail or direct panel mounting.
Settings are selected by DIP switches, making the K8AB-TH easy
to configure. The alarm threshold is set using rotary switches
Power supply
Alarm Output (change over relay)
Alarm indicator
Alarm Threshold (SV) setting switches
Latch Reset (remote input)
Sensor input
on the front, allowing the alarm point to be easily checked at
a later time. The unit features multiple inputs with support for
both thermocouples and Pt100 sensors. For the alarm output,
a change-over relay is provided and, in contrast to many other,
comparable, monitoring relays, the K8AB-TH also embodies an
output latch function with (front button) latch reset, SV protection
and the choice of fail-safe/non-fail-safe relay operation.
Advanced Industrial Automation
Easy to set up, field-configurable DIP switch
for multi-input and unit selection.
DIP switches
SW1 Alarm mode (High/Low)
SW2 Output latch (On/Off)
SW3 Operation (Fail-safe/Non Fail-safe)
SW4 Temperature Unit (°C/°F)
SW5-SW8 Input type selector
