USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the iLoud MTM MKII and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for IK Multimedia iLoud MTM MKII

Summary of Contents for IK Multimedia iLoud MTM MKII

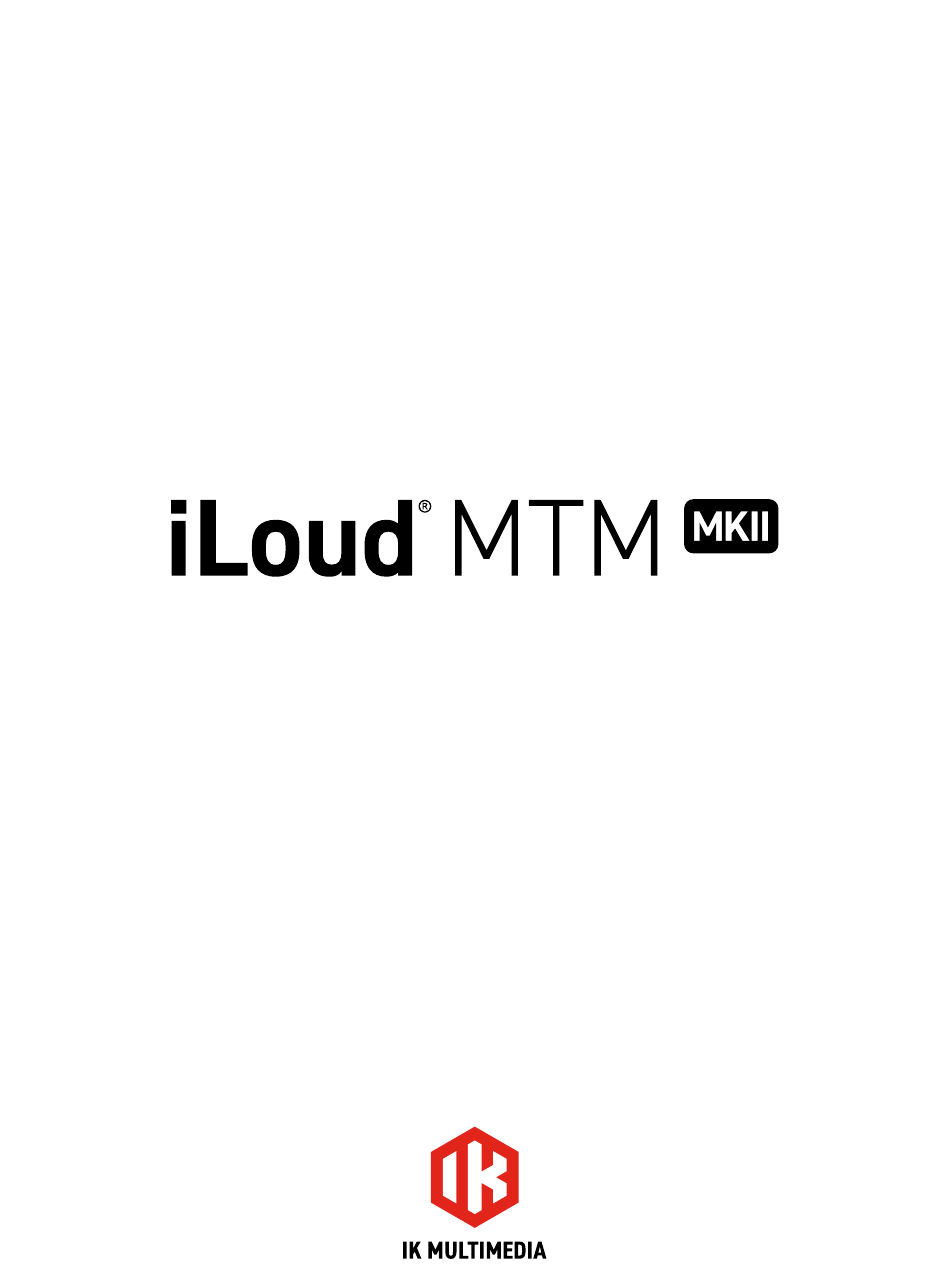

  • Page 1 USER MANUAL...

  • Page 2: Table Of Contents

    MTM MKII Table of Contents Contents iLoud MTM MKII Register your iLoud MTM MKII Safety Instructions Overview Installation and setup Control panel Audio inputs Combo XLR-1/4" balanced line input ARC Mic input USB port Power Rear controls LF extension...
  • Page 3 MTM MKII Specifications Support IK Product Manager Regulatory Contents...

  • Page 4: Iloud Mtm Mkii

    • TPU base for horizontal positioning • Registration card iLoud MTM MKII’s innovative features and smart design re-invent studio monitoring for any kind of setup, from professional studios looking for transparent, revealing nearfields, to musicians in home and small studios looking for absolute precision from their workhorse monitors.

  • Page 5: Register Your Iloud Mtm Mkii

    MTM MKII Register your iLoud MTM MKII By registering, you can access technical support, activate your warranty and receive free JamPoints™ which will be added to your account. JamPoints™ allow you to obtain discounts on future IK purchases! Registering also keeps you informed of all the latest software updates and IK products.

  • Page 6: Safety Instructions

    MTM MKII Safety Instructions • Read these instructions. • Keep these instructions. • Heed all warnings. • Follow all instructions. • Do not use this apparatus near water. • Clean only with dry cloth. • Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
  • Page 7 MTM MKII • The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’ s enclosure that may be of sufficient magnitude to constitute a risk of electrical shock to persons.

  • Page 8: Overview

    MTM MKII Overview 1. 2 x 3,5" woofers 7. Volume control 2. 1" back-chamber loaded tweeter 8. 1/4" / XLR combo input 3. Multi-color indication LED 9. 1/8" ARC mic input 4. Integrated tilting isolation stand 10. USB port 5.

  • Page 9: Installation And Setup

    Note that the loudspeakers will need a few days of use to achieve optimum sonic performance. 1. Make sure that the volume control of iLoud MTM MKII is set to minimum. Make sure that the ON/OFF switch on the rear panel is set to OFF.
  • Page 10 MTM MKII 3. Adjust the vertical alignment of the speaker. This step is crucial to fully benefit from the MTM design (for more information refer to the dedicated paragraph in this manual). 4. Connect the power cord. Installation and setup...
  • Page 11 MTM MKII 5. Connect the audio input source to the input connector of iLoud MTM MKII. 6. Switch ON the ON/OFF switch on the rear panel. The front LED will become steady white after a short delay. Installation and setup...
  • Page 12 MTM MKII. When powering down, turn your iLoud MTM MKII off first and then your mixer/interface and outboard gear.

  • Page 13: Control Panel

    The back panel features a type B USB port, designed to allow firmware updates. Power Power button: this pushbutton allows you to power on and off your iLoud MTM MKII. Power AC: connect the (included) power cord to this AC socket.

  • Page 14: Rear Controls

    MTM MKII Rear controls The pushbuttons on the back panel will help you to perfectly match iLoud MTM MKII to every acoustic environment. LF extension The LF extension button is a high-pass filter that can be set to filter out frequencies below 80 (LFE), 60 Hz, 50 Hz (default) or 40 Hz.

  • Page 15: Hf Filter

    MTM MKII HF filter This pushbutton controls the high frequency level using a shelf-type EQ. The level can be set to 0 dB (FLAT), +2 dB or -2 dB, from 8 kHz up. LF filter This pushbutton controls the low frequency level using a shelf-type EQ. The level can be set to 0 dB (FLAT), +2 dB or -3 dB, from 100 Hz down.

  • Page 16: Cal/Preset

    When connecting iLoud MTM MKII to consumer equipment (as for example Hi-Fi components, smartphones, tablets, Laptop computers and so on), set the level to the -10dBV setting. To determine the nominal output level of the connected equipment, consult the documentation supplied with the connected equipment.

  • Page 17: Custom Arc Calibration

    IMPORTANT: An ARC MEMS calibration microphone (sold separately) is necessary to proceed with the calibration. 1. Connect the ARC MEMS microphone to the ARC INPUT on the back of iLoud MTM MKII with the XLR/TS cable provided with the ARC MIC.
  • Page 18 MTM MKII 3. Keep the CAL/PRESET button pressed for three seconds to enable iLoud MTM MKII’s calibration mode. The CAL LED on the back and the front LED will start blinking. 4. Press the CAL/PRESET button to begin measurement on the current point.

  • Page 19: Front Led

    MTM MKII Front LED The front LED will show important information about iLoud MTM MKII’s status. Operating status • White, steady: The unit is operating in normal mode. At power-on, the front LED will blink blue for a short time while the unit is powering on.

  • Page 20: X-Monitor

    MTM MKII X-MONITOR iLoud MTM MKII is compatible with X-MONITOR, an advanced control software for iLoud family speakers that gives the user complete control over all the features of the speaker in a friendly and intuitive interface. Follow this link for detailed information on X-MONITOR software: ikmultimedia.com/xmonitor...

  • Page 21: Mtm Design

    Make sure that no obstacles are present between the monitors and your ears. You should be able to see the speakers completely. iLoud MTM MKII has been designed for both vertical and horizontal set up. The speakers must be positioned on a firm surface or a stand.

  • Page 22: Desktop Positioning

    MTM MKII Desktop positioning The center of the tweeter should be positioned approximately at the height of your ears. In case you need to position the speakers in a significant lower or higher position, the monitors should be angled accordingly. If the speakers are placed lower than the ear line, you can tilt them using the adjustable foot that also improves the acoustic decoupling of the speakers from the surface.

  • Page 23: Listening Position

    Listening position When you use iLoud MTM MKII for stereo applications, the optimum listening position should be located in the middle of an imaginary triangle. This means that your listening point (sweet spot) will be located at the top of an equilateral triangle and the two loudspeakers should be placed at the other two corners of this triangle.

  • Page 24: Room Acoustics

    Microphone stand mounting Thanks to the thread adapter on the bottom of the speaker, iLoud MTM MKII can be mounted on any standard 3/8" microphone stand. This allows you to place the speakers at the perfect height and, most important, helps to reduce the typical reflections of the desktop (or shell) and, consequently, improves the frequency response/ linearity of the speaker.

  • Page 25: Dfu Mode

    (please refer to X-MONITOR app manual for detailed information on firmware recovery procedure). To boot iLoud MTM MKII in DFU mode, hold the LF EXT button and plug the power cord to the unit. The front LED will turn steady blue to indicate DFU mode is active.

  • Page 26: Factory Reset

    MTM MKII Factory Reset To perform a factory reset, keep pressed both the CAL/PRESET and SENS buttons for more than 5 seconds. After this time all the LED’s will flash for 3 seconds and all the controls will be returned to the factory status, the voicing will be reset to default and any custom Calibration will be erased.

  • Page 27: Troubleshooting

    MTM MKII Troubleshooting I have connected my device to iLoud MTM MKII but no sound comes out Make sure to set up the volume with the volume control on iLoud MTM MKII and/or with your device’s volume control. Sound is distorted When noticeable distortion occurs, please turn down the level of the speakers, or of the connected audio source.
  • Page 28 MTM MKII Specifications • Type: 2-Way/3-speakers bi-amped, digitally controlled studio monitor • LF drivers: 2 x 3.5" composite cellulose fiber, custom-made mid-woofers • HF drivers: 1" low distortion, back chambered silk dome tweeter • Acoustic design: DSP tuned bass reflex • Number of amps per speaker: 2...
  • Page 29 IK Product Manager The IK Product Manager gives you one central location to manage all the latest IK Multimedia products. It’s your central command for registration, downloads, installation, authorization, checking for updates, and much more. • Register hardware and software in one location • Download, install, and authorize software...
  • Page 30 MTM MKII Regulatory Studio Monitor - IK000100 Model: iLoud MTM MKII U.S.A. EUROPE FCC statement This device complies with Part 15.107 and 15.109 AUSTRALIA/NEW ZEALAND Class B of the FCC Rules CFR47: October 2010. Operation is subject to the following two conditions: 1.
  • Page 31 All other product names and images, trademarks and artists names are the property of their respective owners, which are in no way associated or affiliated with IK Multimedia. Product names are used solely for the purpose of identifying the specific products that were studied during IK Multimedia’s sound model development and for describing certain types of tones produced with IK Multimedia’s digital modeling technology.
