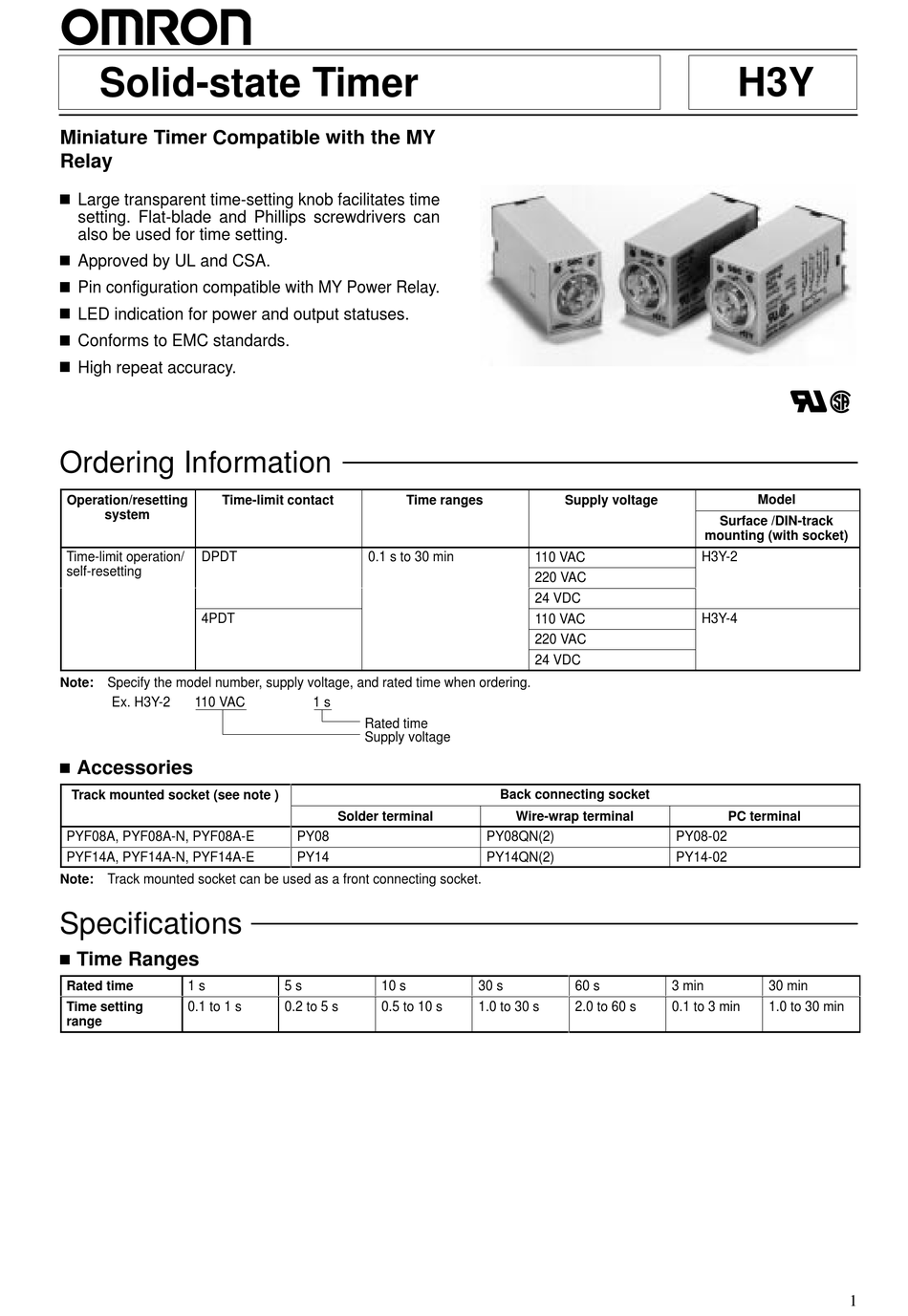

220 VAC 24 VDC 4PDT 110 VAC H3Y-4 220 VAC 24 VDC Note: Specify the model number, supply voltage, and rated time when ordering. Ex. H3Y-2 110 VAC Rated time Supply voltage Accessories Back connecting socket Track mounted socket (see note )
Page 2
2,000 VAC, 50/60 Hz for 1 min (between current-carrying terminals and exposed non-current-carrying metal parts) (see note) 2,000 VAC, 50/60 Hz for 1 min (between operating power circuit and control output) (see note) 2,000 VAC, 50/60 Hz for 1 min (between different pole contacts; 2-pole model) (see note) 1,500 VAC, 50/60 Hz for 1 min (between different pole contacts;...
250 VAC, cos = 0.4 24 VDC, cos = 1 24 VDC, L/R = 7 ms Reference: A maximum current of 0.6 A can be switched at 125 VDC (cos = 1). Maximum current of 0.2 A can be switched if L/R is 7 ms. In both cases, a life of 100,000 operations can be expected.
Page 4
(63.0) (63.0) Accessories (Order Separately) Use the PYF A, PY , PY -02, or PY QN(2) to mount the H3Y. When ordering any one of these sockets, replace “ ” with “08” or “14.” Track Mounting/Front Connecting Sockets PYF08A Two, 4.2...
Limited issue for Southeast Asian countries ALL DIMENSIONS SHOWN ARE IN MILLIMETERS. To convert millimeters into inches, multiply by 0.03937. To convert grams into ounces, multiply by 0.03527. Cat. No. L097-E1-1 In the interest of product improvement, specifications are subject to change without notice.
