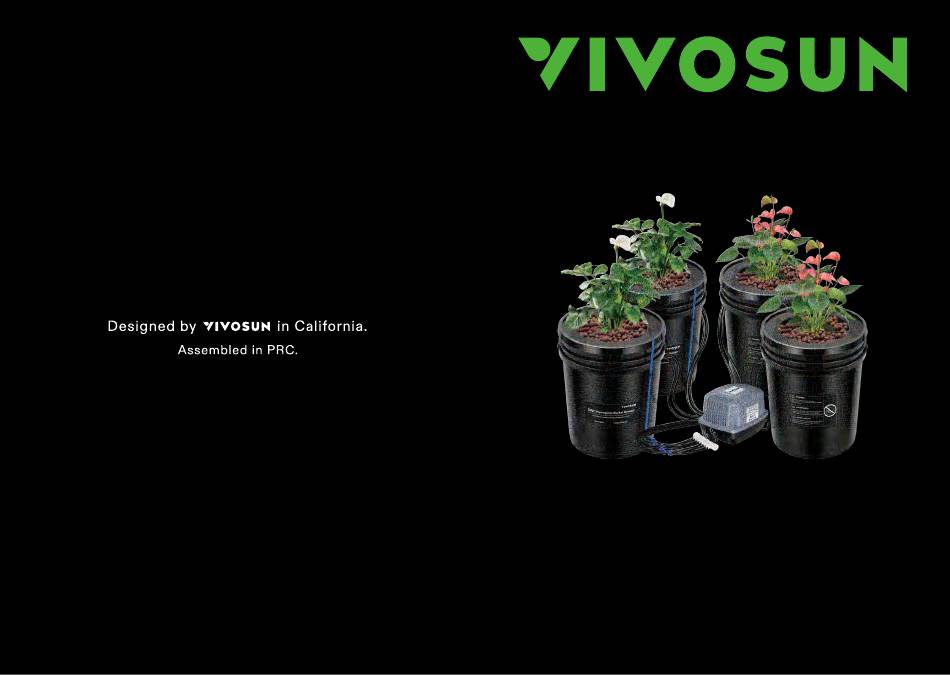

- Page 1 DWC Recirculating Drip Hydroponic System Kit (4-bucket) USER MANUAL...
-
Page 2: Table Of Contents
CONTENTS Product Description Structural Diagram Product Data Installation Planting Steps Gardening Tips Cautions Warnings Warranty Terms Problems & Solutions... -
Page 3: Product Description
PRODUCT DESCRIPTION STRUCTURAL DIAGRAM This four-bucket system is an updated version of the Deep Water Culture (DWC) system. Description Picture Quantity We've added a Top Feed drip function to the classic DWC bucket system. Each bucket operates independently with an air pump, which allows oxygen-rich nutrient water to recir- Lid with 8’’... -
Page 4: Product Data
PRODUCT DATA INSTALLATION STEP 2 Install the drip irrigation assembly. First, cut the round hole at the bottom of the Bucket size/color 5 gallon(φ30cm x 38cm)x4, Black basket in Bucket Lid #A, as shown in figure. Basket size/color 8 inch, Black Irrigation method DWC+Drip ring Water level indicator... - Page 5 INSTALLATION INSTALLATION STEP 4 STEP 6 Insert Sealing Ring #G into the 2 holes at the upper part of Grow Bucket Connect all the air tubes to the 8-outlet diffuser. Then cut the tubes near the Black Tubing #E into two sections of equal length. Insert one through diffuser and add the Inline Check Valve #C.
-
Page 6: Planting Steps
If you start with works normally. You may need to move some of the clay seeds or cuttings, we recommend using VIVOSUN Germinations Kits to start rooting before pebbles to check. Move the clay pebbles back to cover the transplanting to this system. -
Page 7: Gardening Tips
GARDENING TIPS GARDENING TIPS (1) NUTRIENT AND WATER MANAGEMENT DRAINAGE 1. Prepare something to catch water (e.g., a bowl or bucket) and place it under the bucket. Then, remove the top of the water pipe from the upper buckle, as shown in Figure 1. Regularly check the water level and replenish the water or nutrient solution in time. - Page 8 GARDENING TIPS GARDENING TIPS Regularly monitor the pH of nutrient solution. Please keep the pH range of nutrient Regularly monitor the electrical conductivity (EC) of the nutrient solution. The EC is solution between 5.8 and 6.5. If the pH is too high or too low, please adjust it with a used to measure the overall nutrient concentration.
- Page 9 GARDENING TIPS GARDENING TIPS For indoor growth, humidity plays an important role in controlling diseases and maintain plant health. You may need extra equipment such as a dehumidifier to control the humidity of your garden. OPTIMAL RELATIVE HUMIDTY FOR PLANT HEALTH HEALTH RISK OPTIMUM ZONE Bacteria...
-
Page 10: Cautions
Do not sit, stand, or place heavy objects on the product. ● It is recommended to use VIVOSUN approved supporting parts (e.g., timer, air pump, and others.). Product problems caused by the unauthorized use of non-recommended acces- sories or components are not covered by the warranty. -
Page 11: Problems & Solutions
PROBLEMS & SOLUTIONS PROBLEMS & SOLUTIONS The air pump does not work after it’s powered on. After filling the bucket with water, I found that the elbow connector at the lower end of the water pipe was overflowing with water. (1) Confirm whether it’s connected to the correct voltage (110-120V). - Page 12 PROBLEMS & SOLUTIONS Slow rooting of cuttings or failure to root. ● It is not recommended to put the cuttings into this product directly to root. Please put the cuttings into this product after they have roots to accelerate the root growth. When using this product, please use a suitable nutrient solution and keep the water temperature, pH, and EC within the appropriate range to promote healthy growth.
