- Page 1 RADIANTE 846 2V INSTALLATION & USER MANUAL WARMTH FROM FRANCE BY WIGNELLS OF MELBOURNE The Original Home Of Cheminées Philippe Australia since 1982...
- Page 2 We thank and appreciate your trust in welcoming our Cheminées Philippe Radiante 846 2V cast iron foundry located in the Pas-de-Calis region of France, they adhere to strict Warmest regards, Rick Wignell Director of Cheminées Philippe Australia RADIANTE 846 2V...
-
Page 3: Table Of Contents
1.3 PRE-INSTALLATION GUIDELINES 1.4 GENERAL FLUE REQUIREMENTS 1.5 SUITABLE BASE & HEARTH MATERIALS 2. UNIT DIMENSIONS & SPECIFICATIONS 2.1 CHEMINÉES PHILIPPE RADIANTE 846 2V 3. FREESTANDING 3.1 STEP BY STEP INSTALL GUIDE 3.2 BASE & HEARTH DIMENSIONS 3.3 FREESTANDING CLEARANCES 3.4 SKAMOTEC WALL GUIDELINES... - Page 4 DOCUMENT REVISION 01 This document is valid for Australia & New Zealand as of Septemeber 9th 2022 for the installation, operation and maintenance of the Cheminées Philippe Radiante 846 2V DISCLAIMER bears no liability for installations that do not meet the criteria outlined in this manual, alongside the requirements of Australian &...
- Page 5 IN HAZARDOUS CONDITIONS. WHERE SUCH ACTION IS CONSIDERED THE MANUFACTURER SHOULD BE CONSULTED IN THE FIRST INSTANCE. CAUTION: CRACKED AND BROKEN COMPONENTS, FOR EXAMPLE GLASS PANELS, CAST IRON OR CERAMIC TILES, MAY RENDER THE INSTALLATION UNSAFE. RADIANTE 846 2V CHEMINÉES PHILIPPE...
- Page 6 If this occurs, the introduction of fresh air is recommended. This could take the form of a vent may also prove to cause downdraught conditions (AS/NZS 2918:2018 extract), RADIANTE 846 2V CHEMINÉES PHILIPPE...
- Page 7 No more than 2 x 45 degree bends are allowed » 90 degree bends are NOT to be used MINIMUM EXTERNAL FLUE HEIGHTS & COWL CLEARANCES - AS PER AS/NZS 2918:2018 *All dimensions in mm *Please keep these instructions for future reference. RADIANTE 846 2V CHEMINÉES PHILIPPE...
- Page 8 600 degrees of greater. properties only. It is the responsibility of the purchaser and the installer to ensure that any material componentry. DO NOT USE » » Thin pre-cast concrete » Timber or any combustible material » Glass RADIANTE 846 2V CHEMINÉES PHILIPPE...
-

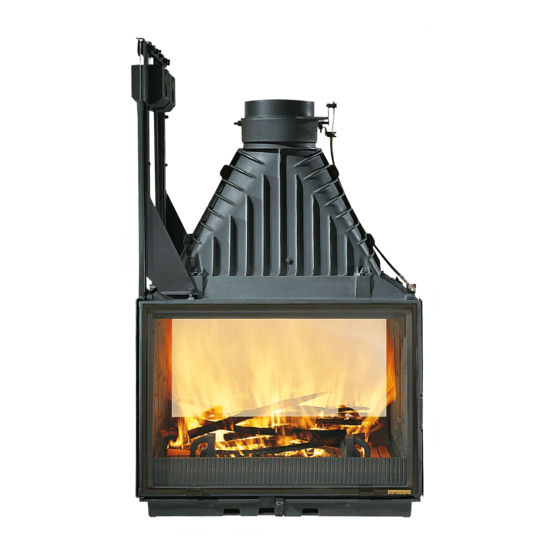

Page 9: Unit Dimensions & Specifications 2.1 Cheminées Philippe Radiante 846 2V
2. UNIT DIMENSIONS & SPECIFICATIONS 2.1 CHEMINÉES PHILIPPE RADIANTE 846 2V PLEASE NOTE: a slight variance factor of 1-2mm across all unit dimensions and .5kg in unit weight. - Page 10 (From top of spigot) FIREBOX WEIGHT 285kg OVERALL AVG. EFFICIENCY PARTICULATE EMISSIONS FACTOR 1.1g/kg TEST REPORTS ASFT18068-1 CERTIFICATE OF COMPLIANCE #ASFT19C020 atmospheric conditions. This unit has been tested and complies with Australian & New Zealand standards hardwood only. RADIANTE 846 2V CHEMINÉES PHILIPPE...
-
Page 11: Step By Step Install Guide
3. FREESTANDING 3.1 STEP BY STEP INSTALL GUIDE 3.2 BASE & HEARTH DIMENSIONS 3.3 FREESTANDING CLEARANCES 3.4 SKAMOTEC WALL GUIDELINES 3.5 SKAMTOEC WALL VENTILATION 3.6 FLUE COMPONENTS OVERVIEW 3.7 FLUE SYSTEM CONFIGURATIONS PLEASE NOTE: All diagrams in this manual are for illustration purposes only, DO NOT scale from any of these diagrams. - Page 12 » If the draw is adequate, complete the check list on page 41 and return this as well as this entire booklet » If the draw is inadequate please refer to the Balancing Air Pressure section on page 6 RADIANTE 846 2V CHEMINÉES PHILIPPE...
- Page 13 WIDTH:1170mm x DEPTH: 1120mm x THICKNESS: 100mm* *For a list of recommended materials and thicknesses refer to page 8 front of both fuel loading doors and 160mm either side directions, unless forming an abutment with a wall, refer to page 14 RADIANTE 846 2V CHEMINÉES PHILIPPE...
- Page 14 300mm* Hearth 300mm* 160mm 160mm* 100mm 150mm 160mm 160mm* 300mm* 300mm* Hearth Hearth 885mm 885mm Combustible A minimum 110mm solid brick/hebel thick wall should extend all the way to the ceiling from the hearth. Material RADIANTE 846 2V CHEMINÉES PHILIPPE...
- Page 15 » When applying any adhesive, mortar cement, drywall compound, paint, skim-coat or a scratch coat, all joining surfaces must be cleaned and moistened with water beforehand (Skamotec branded products are mandatory). This will prevent these products from drying out too quickly & adhering incorrectly. A SKAMOTEC COMPOSITION - PLAN VIEW RADIANTE 846 2V CHEMINÉES PHILIPPE...
- Page 16 OPTION B: CONCEALED EXTERNAL VENTS OPTION C: CONCEALED INTERNAL VENTS The minimum concealed surface area of vent is one 720cm2 top (9cm x 80cm) at the top and bottom or 2 x RADIANTE 846 2V CHEMINÉES PHILIPPE...
- Page 17 9” Flue Adaptor* (Charcoal) 2 x 9” Single Skin Flue 900mm* (Charcoal) 9” Anti Down Draught Cowl 9” Anti Down Draught Cowl FREESTANDING INSTALL OVERVIEW* *SINGLE SKIN FLUE KIT ILLUSTRATION (Will vary depending on roof) RADIANTE 846 2V CHEMINÉES PHILIPPE...
- Page 18 FREESTANDING FLUE CONFIGURATIONS Flat ceiling with Cathedral ceiling roof space roof space 8. Double storey Flat ceiling with Freestanding with External wall roof space and chimney & offset penetration with single storey offset penetration RADIANTE 846 2V CHEMINÉES PHILIPPE...
-
Page 19: Flue Components Overview
4. INBUILT 4.1 STEP BY STEP INSTALL GUIDE 4.2 BASE, HEARTH & MANTEL SHELF DIMENSIONS 4.3 INBUILT CAVITY DIMENSIONS 4.4 DEFLECTOR PLATE & GRILLS 4.5 FLUE COMPONENTS OVERVIEW PLEASE NOTE: All diagrams in this manual are for illustration purposes only, DO NOT scale from any of these diagrams. All measurements are in millimetres unless otherwise stated. - Page 20 » If the draw is adequate, complete the check list on page 41 and return this as well as this entire booklet » If the draw is inadequate please refer to the Balancing Air Pressure section on page 6 RADIANTE 846 2V CHEMINÉES PHILIPPE...
- Page 21 *For a list of recommended materials and thicknesses refer to page 8 front of both fuel loading doors and 160mm either side HEAT SENSITIVE MATERIALS EXCLUSION ZONES: directions, unless forming an abutment with a wall, refer to page 14 RADIANTE 846 2V CHEMINÉES PHILIPPE...
- Page 22 EXISTING MASONRY CHIMNEY: achieved then it is recommended to use the optional mesh vents to assist with adequate gap on the sides is recommended. All dimensions are in millimetres. *Refer to pages 8 & 21 RADIANTE 846 2V CHEMINÉES PHILIPPE...
-
Page 23: Deflector Plate & Grills
» All vent material must be non-combustible, metal vents are strongly recommended » » Air Inlet Clearance: Ensure there is nothing obstructing the front of the vent » Air Outlet Clearance: Allow a 600mm clearance in front and 500mm above the vent RADIANTE 846 2V CHEMINÉES PHILIPPE... - Page 24 4 x 9” Stainless Steel Flues 900mm 9” Anti Down Draught Cowl 9” Anti Down Draught Cowl PARTIAL MASONRY INSTALL OVERVIEW FULL MASONRY INSTALL OVERVIEW *ALL ILLUSTRATIONS ON THIS PAGE REFERENCE A SINGLE SIDED MODEL ONLY RADIANTE 846 2V CHEMINÉES PHILIPPE...
-
Page 25: Mechanisms & Unit Assembly 5.1 Mechanism Guide
5. MECHANISMS & UNIT ASSEMBLY 5.1 MECHANISM GUIDE 5.2 PARTS & ASSEMBLY 27 & 28... - Page 26 (starting position) *It is not recommended to use the unit with the damper and primary air fully closed for extended periods of time OPENING MECHANISMS SWING DOOR OPEN closing of the door for ease of use RADIANTE 846 2V CHEMINÉES PHILIPPE...
- Page 27 10: For correct use of damper, ensure that the damper cable makes regular wide curves gently and avoid bending it Caution: Cheminees Philippe Australia Pty Ltd accept no liability for damage to the cast iron or brass through the use of acids or other chemicals RADIANTE 846 2V...
- Page 28 3. Turn the damper towards the right hand side IMPORTANT: MAKE SURE THE BOLTS ARE CORRECTLY TIGHTENED. IF THE UNIT HAS A DAMPER CABLE THEN IT MUST MAKE REGULAR WIDE CURVES, AVOID BENDING IT AT ALL TIMES. LOCATION OF ADJUSTMENTS (IF NECESSARY) CHEMINÉES PHILIPPE RADIANTE 846 2V...
-
Page 29: Operation
6. OPERATION 6.1 BEFORE FIRST IGNITION 6.2 RECOMMENDED FIRE WOOD 6.3 HOW TO LIGHT & BURN SAFELY 32 & 33 6.4 WARNINGS LABELS... - Page 30 » Do not burn domestic waste, plastic (eg bottles) or plastic derivatives, rubber, oily products (eg oil soaked rags) etc which not only give off an unpleasant odour but will also pollute the environment and RADIANTE 846 2V CHEMINÉES PHILIPPE...
- Page 31 VOL. GREY BOX Many RED IRON BARK Excellent RED BOX Excellent YELLOW BOX Excellent RED GUM Excellent BLUE GUM Fair Good STRINGY BARK Good Good NARROW LEAF Good Good PEPPERMINT Good Good PINE Fair Poor RADIANTE 846 2V CHEMINÉES PHILIPPE...
- Page 32 3.Firestarters should then be evenly positioned between the two layers of kindling on the back, middle and front 4. Once the kindling and hard wood has caught properly close the door adjust the primary and secondary air vents accordingly RADIANTE 846 2V CHEMINÉES PHILIPPE...
- Page 33 » Always have two pieces of wood burning off each other as one log on its own will struggle to stay » recommended, especially at the start and end of winter and when the temperature rises as this can » » retainers and over all cast iron internal elements RADIANTE 846 2V CHEMINÉES PHILIPPE...
- Page 34 WARNING: DO NOT BURN WOOD THAT IS PAINTED; OR IS COATED WITH PLASTIC; OR HAS BEEN TREATED WITH ANY CHEMICAL CAUTION: DO NOT OPERATE THIS APPLIANCE IF GLASS IS CRACKED OR BROKEN. CAUTION: THIS APPLIANCE SHOULD BE MAINTAINED AND OPERATED AT ALL TIMES IN ACCORDANCE WITH THESE INSTRUCTIONS. RADIANTE 846 2V CHEMINÉES PHILIPPE...
-
Page 35: Maintenance
7. MAINTENANCE 7.1 SERVICING GUIDE 7.2 TROUBLE SHOOTING 7.3 SPARE PARTS... - Page 36 Simply spray onto the glass window (ensure the glass is cold), wait thirty seconds to a minute and wipe off with a paper towel or newspaper. For particularly baked on creosote, repeat process. *Reminder to AVOID spraying the cast iron elements RADIANTE 846 2V CHEMINÉES PHILIPPE...
- Page 37 28 for location of adjustments - Ensure the right wood is being used, refer to pages The window becomes dirty very quickly - Using a moisture meter check the moisture - Check the secondary air in-take is not blocked RADIANTE 846 2V CHEMINÉES PHILIPPE...
- Page 38 » Only use spare parts, in particular the replacement of glass should only be sourced and supplied by Cheminées Philippe Australia » Please refer to common parts list on page 29, for all other parts refer to diagram below RADIANTE 846 2V CHEMINÉES PHILIPPE...
-
Page 39: Warranty Policy & Extended Warranty
8. WARRANTY 8.1 WARRANTY POLICY & EXTENDED WARRANTY 8.2 INSTALLER CHECKLIST FORM... - Page 40 14 days of installation. This can be done online at https://chemphilaust.com.au/product-registration/ In the event of a claim, you must email a copy of your invoice and the installer checklist RADIANTE 846 2V CHEMINÉES PHILIPPE...
- Page 41 The user has been shown the Mechanisms, Operation & Maintenance guide FIRST & LAST NAME OF INSTALLER: COMPANY NAME (IF APPLICABLE) CONTACT NUMBER COMPLIANCE CERTIFICATE # SERIAL NUMBER OF UNIT (located inside the base of the ashpan chamber) RADIANTE 846 2V CHEMINÉES PHILIPPE...
- Page 42 CHEMINÉES PHILIPPE AUSTRALIA BY WIGNELLS OF MELBOURNE 430 Johnston St, Abbotsford VIC 3067 180 Whitehorse Rd, Blackburn VIC 3130 (03) 9417 3315 WWW.CHEMPHILAUST.COM.AU...
