FN2523HOS-01
HOSE REEL
INST-FN2523HOS_ISSUE1_2024
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the Retracta FN2523HOS-01 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Macnaught Retracta FN2523HOS-01

Summary of Contents for Macnaught Retracta FN2523HOS-01

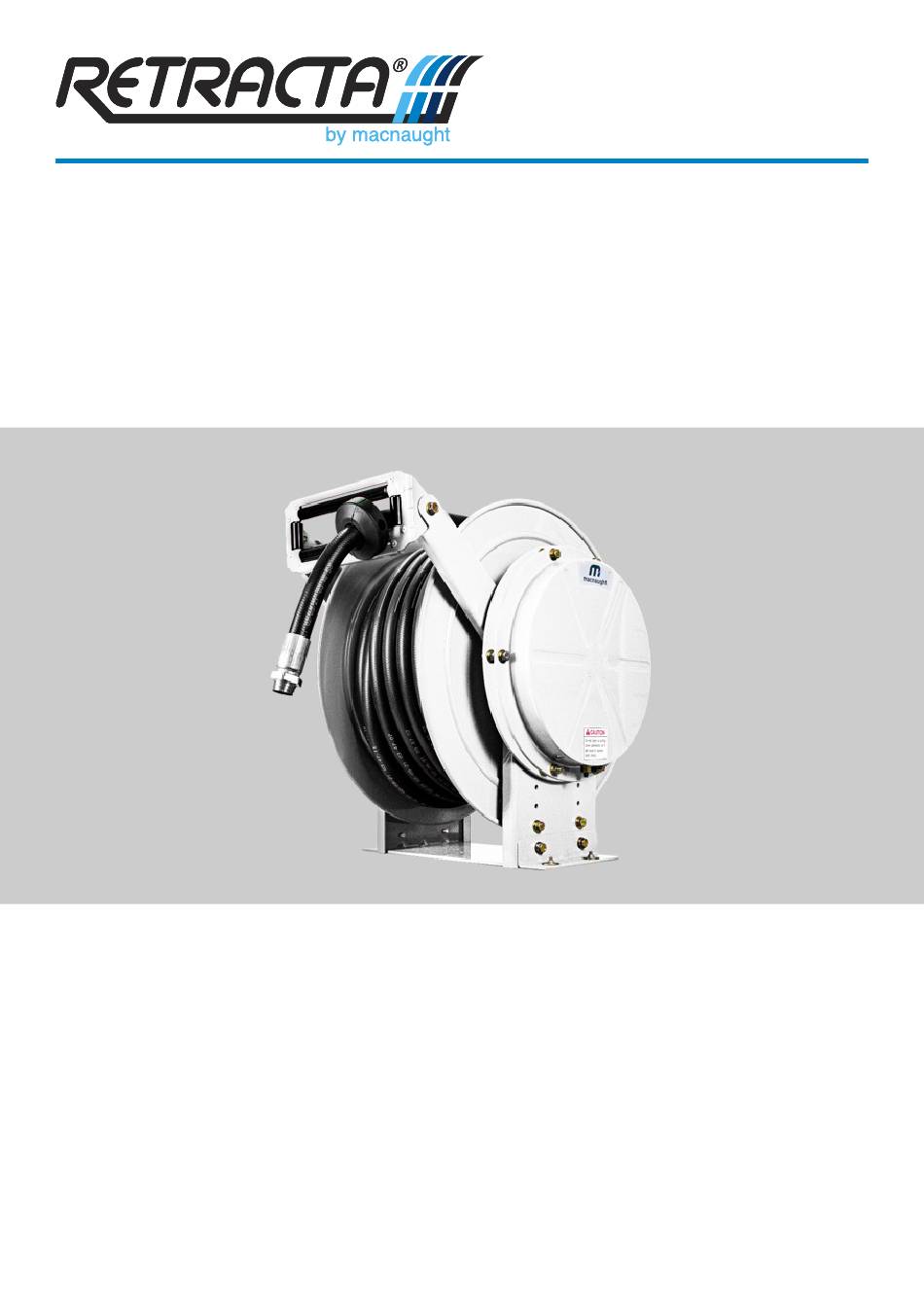

  • Page 1 FN2523HOS-01 HOSE REEL INST-FN2523HOS_ISSUE1_2024...
  • Page 2 WARNING: Read carefully and understand all INSTRUCTIONS before operating. Failure to follow the safety rules and other basic safety precautions may result in serious personal injury. Save these instructions in a safe place and on hand so that they can be read when required. WARNING: The warnings, cautions, and instructions discussed in this instruction manual cannot cover all possible conditions or situations that could occur.

  • Page 3: General Safety

    GENERAL SAFETY The following general warnings should be observed when installing, operating or maintaining hose reel equipment. Keep the work area clean and dry. Damp or wet work areas can result in injury. Keep children away from work area. Do not allow children to handle this product. The operator should wear appropriate protection equipment to protect against personal injury.

  • Page 4: Technical Details

    TECHNICAL DETAILS SPECIFICATIONS Part Number FN2523HOS-01 Colour White Compatible Fluids Air / Water / Oil Hose Size (ID) 1” (25mm) Hose Length 23 m Hose Material Steel Wire Braided Synthetic Rubber Working Pressure 1000 psi Maximum Temperature Feed Hose Inlet Reel Inlet 1”...

  • Page 5: Spare Parts Diagram

    SPARE PARTS DIAGRAM FN2523HOS-01 HOSE REEL SPARE PARTS Item No. Description Part Number Roller Guide Set SKFG2520 Swivel Assembly RHA49S Swivel Seal Set (not shown) RHA50S Spring Drum Assembly SKSP2523 Latch Set SK130S Hose Assembly HPA71S Hose Stopper (not shown) RHA52S...

  • Page 6: Operation

    GENERAL SAFETY Using the four holes in the base, mount the reel in the desired location. Be sure to use appropriate hardware and tighten securely. Apply Teflon tape or pipe sealant to supply line threads, attach to reel inlet and tighten.

  • Page 7: Maintenance

    MAINTENANCE ADJUSTING SPRING TENSION Pull out approximately 2m (6ft) of hose and allow the drum to latch. Remove hose stopper from hose, and feed hose back through the guide. Wrap the hose one time around the drum to increase tension or un-wrap hose one time from drum to decrease tension.
  • Page 8 HOSE REPLACEMENT Turn off and disconnect the supply to reel and release hose line pressure. Pull out approximately 2m (6ft) of hose and allow the drum to latch. Remove the outlet nozzle, gun or tool and hose stopper. Unlatch the reel and carefully allow the hose to slowly rewind until there is no spring tension remaining.
  • Page 9 SPRING CANISTER REPLACEMENT Slide the flat inner plate over the shaft on the reel. Check the correct orientation of the spring locating boss. Remove the boss from the middle of the spring canister and slide the boss onto the shaft on the reel. Carefully hold the centre of the spring up in the middle of the drum, at the same time slide the drum assembly over the centre boss on the shaft.

  • Page 10: Troubleshooting

    Replace the latch assembly. Replace swivel seals. (See Fluid leaks from the Swivel seals are worn. “Replacement of Swivel swivel. Seals”). LIMITED WARRANTY For Warranty Terms and Conditions see macnaught.com.au / macnaughtusa.com. For a list of Australian Service Centres see macnaught.com.au.
  • Page 11 Macnaught 1800 185 102 | sales@macnaught.com.au Macnaught Americas (813) 628-5506 | info@macnaughtusa.com This product should be disposed of according to all applicable local and national government environment regulations and guidelines.
