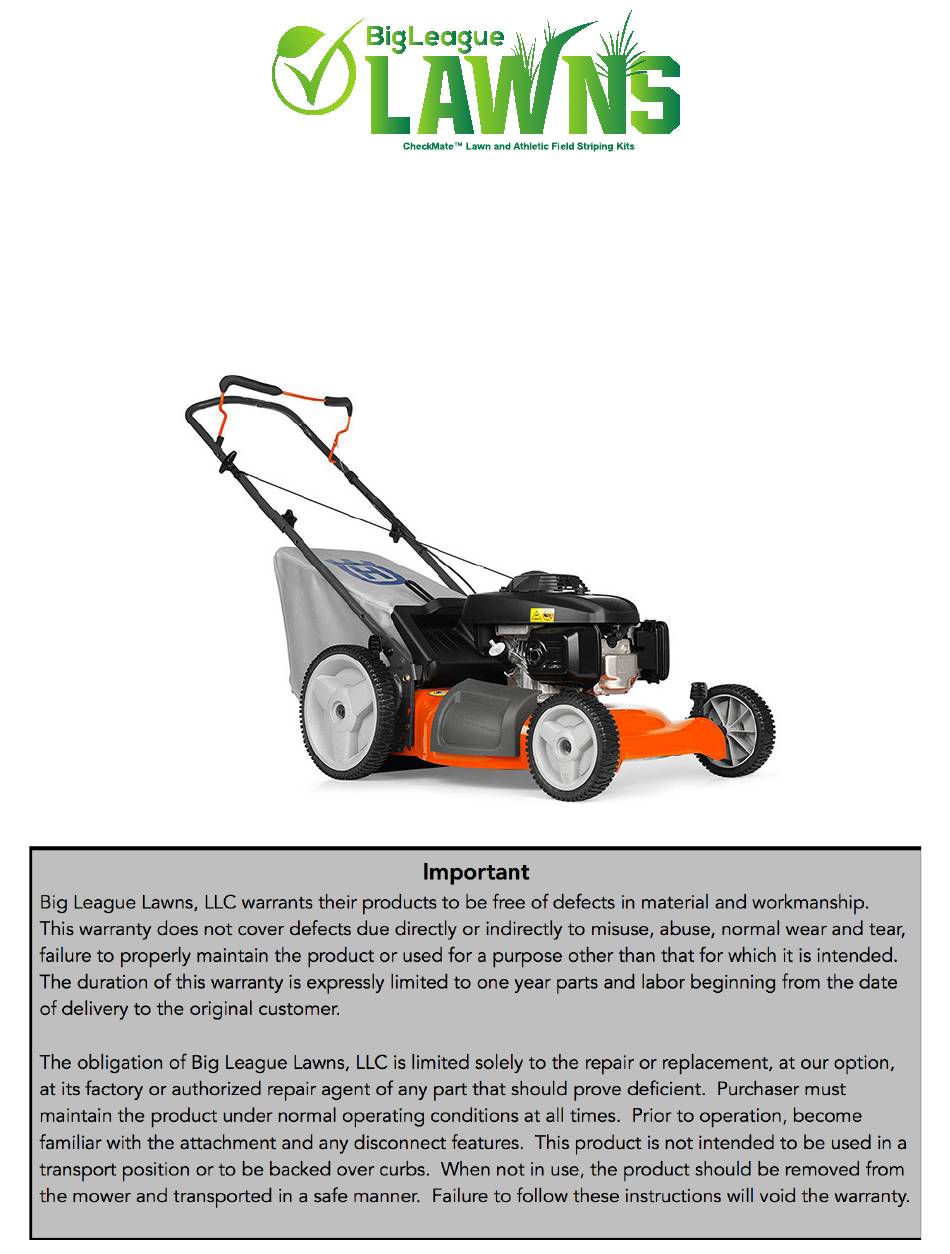

- Page 1 US Patent 6,962,039 B2, US Patent 6,993,894 B2 Mounting Instructions Husqvarna 7021P Mower...
- Page 2 Page 2 Step 1: Safely prop up your mower and remove bagger Using a block of wood or other method safely prop the rear end of the mower up, then remove your bagger (if installed) to gain access to the mounting location. Step 2: Remove the rear wheels Using a 9/16 wrench or socket remove the rear wheel nuts by turning them counter clockwise.
- Page 3 Page 3 Step 3: Remove rear skirt Using a 3/8 wrench or socket remove the bolt securing your rear skirt, the skirt should be able to be slid off of the second bolt once released. Step 4: Prepare the mounting arms to connect Partially disassemble the supplied mounting arms by unscrewing the spinning lock nut from the joint connector bolt while keeping the joint connector bolt and nylon washers in their original location.
- Page 4 Page 4 Step 5: Connect the mounting arms Take the now disassembled spinning lock nut, and thread it through the existing rear skirt holes from the inside out. Once threaded through, connect to joint connector while keeping the nylon washers in place. Tighten securely. Step 6: Install kit Connect the bottom of the mounting arms to the kit using the supplied bolts, lock washers and channel nuts.
- Page 5 Page 5 Step 7: Reinstall wheels Secure the wheels to the mower again (reverse Step 2) Step 8: (Optional) Reinstall bagger...
- Page 6 Page 6 Step 9: Finished installation ______________________________________________________________________________ Enjoy striping with your new CheckMate™ Striping Kit!
