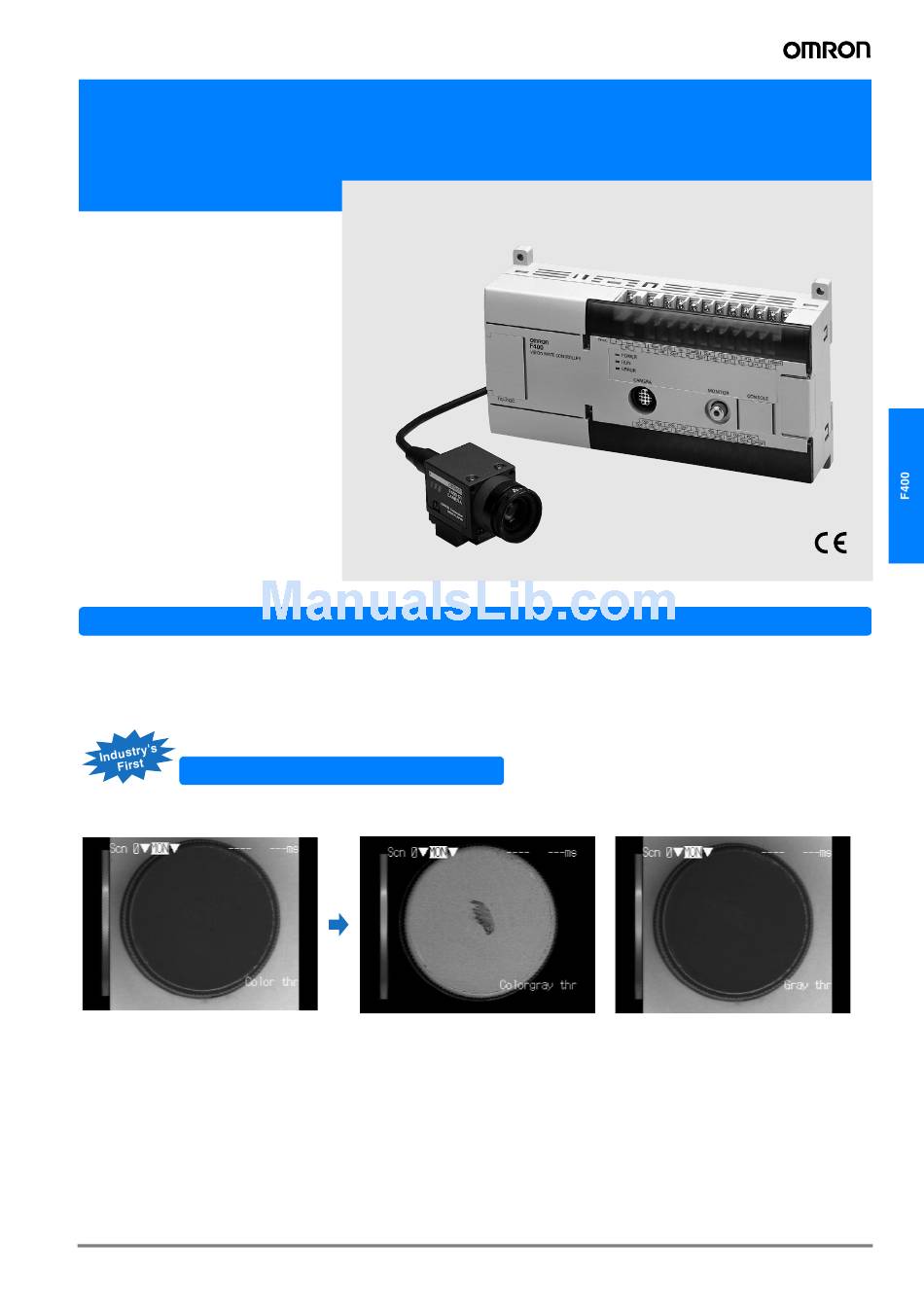

In addition to regular color extraction, the F400 color-graying sensor features the world's first color-graying filter. This is a com-
pletely new type of sensor that enables easy and inexpensive detection of subtle color differences that could not be discriminated
by monochrome processing or color extraction.
Incluses a color-grayed filter
A Good discrimination of subtle color differences (example: inspection for cap damage)
Original image
F400
Detects subtle color differences
Features
Color-grayed image
Defects barely visible in the original image
stand out clearly.
Monochrome image
The defects are barely visible.
C-25

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the F400 and is the answer not in the manual?

Questions and answers

Related Manuals for Omron F400

Summary of Contents for Omron F400

  • Page 1 Features In addition to regular color extraction, the F400 color-graying sensor features the world's first color-graying filter. This is a com- pletely new type of sensor that enables easy and inexpensive detection of subtle color differences that could not be discriminated by monochrome processing or color extraction.
  • Page 2 Features B Handles lighting changes well. (Example: inspection of colored pencil arrangement when the color is set to red) Original image Color-grayed image Even if the illumination is dark- ened, a stable color-grayed im- age can be obtained. Original image...

  • Page 3: Other Functions

    Other functions RGB filters In addition to the color-graying filter, the sensor is equipped with R (red), G (green), and B (blue) filters. • Use the filter most suitable to the color of the object and the purpose of the inspection.
  • Page 4 The contrast between the cap color and dirt can be increased. Presence inspection of mustard for beans Original image Filtered image Presence inspection is possible regardless of the position of the mustard for the beans. Adhesive coating inspection Original image...

  • Page 5: System Configuration

    Monitor Cable F150-VS(3m) F150-VM (2 m) * Camera F400-S1 BNC connector (provided) LCD Monitor F150-M05L (pin jack) Note: Please refer to Lens Details (C-94) about selection of a lens. Ordering Information Name Model Controller F400-C15E Camera F400-S1 Console F150-KP LCD monitor...
  • Page 6 256 levels (per measurement area) Correction directions: X, Y, Position correction function Inspection modes: binary center of gravity / main axis angle, search (1 model / 2 models), edge position (1 area / 2 areas) Number of measurement areas 16 areas/scene...

  • Page 7: Function Menu

    (10)RUN indicator (11) RS-232C connector Function menu Measurement method Five measurement modes are available. Selections will vary depending on the selected scene mode. Common to both color extraction and color filter mode. Color filter mode only Dirt and damage Search...
  • Page 8 Menu structure diagram The menu structure differs in color extraction mode and color filter mode. The menu structure for each scene mode is as follows: Color extraction mode Scene 0 Scene 15 Color filter mode Scene 0 Scene 15 C-32...

  • Page 9: Dimensions (Unit: Mm)

    15.5 (40) 14.5 30.5 2-M3 31.25 16.75 12 dia. 12.5 Two M4 holes with depth of 8 mm 2000 1/4-20UNC with depth of 8 mm 21.25 6.75 LCD monitor Panel cut diagram Mounting plate thickness: 1.6 to 4.8 F150-M05L (46max)
  • Page 10 ALL DIMENSIONS SHOWN ARE IN MILLIMETERS. To convert millimeters into inches, multiply by 0.03937. To convert grams into ounces, multiply by 0.03527. Cat. No. Q08E-EN-01 In the interest of product improvement, specifications are subject to change without notice. C-34 Vision Sensors...
