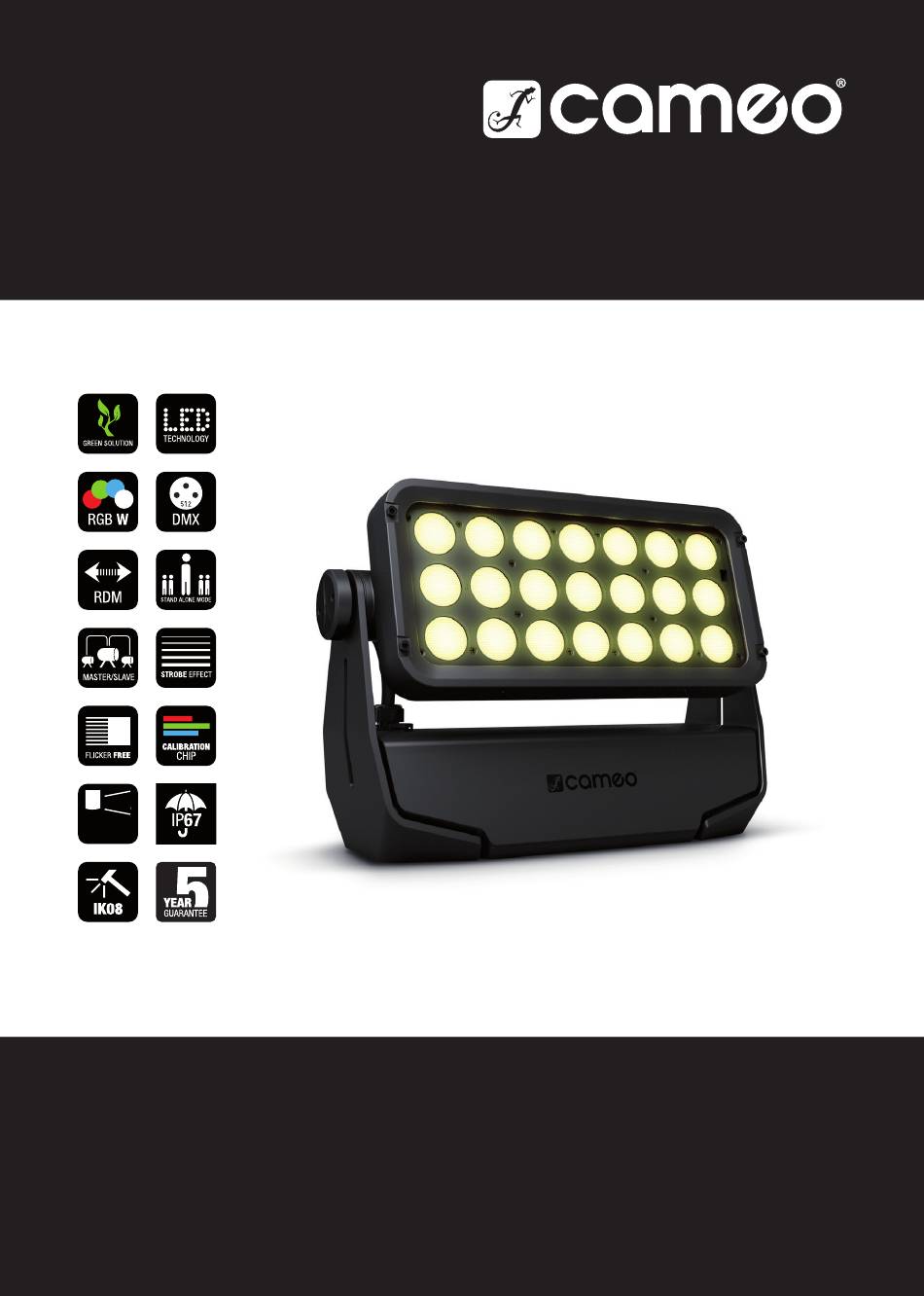

- Page 1 USER´S MANUAL BEDIENUNGSANLEITUNG MANUEL D´UTILISATION MANUAL DE USUARIO INSTRUKCJA OBSŁUGI MANUALE D´USO MULTIPLE ANGLES ZENIT W300i ® OUTDOOR LED WASH LIGHT FOR FIXED INSTALLATION CLZW300i...
-
Page 2: Table Of Contents
CONTENTS / INHALTSVERZEICHNIS / TABLE DES MATIÈRES / CONTENIDO / SPIS TREŚCI / CONTENUTO ENGLISH INFORMATION ON THIS USER MANUAL INTENDED USE DEFINITIONS AND SYMBOL EXPLANATIONS SAFETY INSTRUCTIONS INSTRUCTIONS FOR OUTDOOR INSTALLATION EQUIPMENT FEATURES CONNECTIONS, OPERATING AND DISPLAY ELEMENTS SIGNAL AND POWER CABLE OPERATION ADJUSTING LIGHT HEAD TILT INSTALLATION AND TRUSS MOUNTNG... - Page 3 CONTENTS / INHALTSVERZEICHNIS / TABLE DES MATIÈRES / CONTENIDO / SPIS TREŚCI / CONTENUTO ITALIANO INFORMAZIONI SUL PRESENTE MANUALE D'USO UTILIZZO CONFORME SPIEGAZIONE DI CONCETTI E SIMBOLI INDICAZIONI SULLA SICUREZZA NOTE PER I DISPOSITIVI DA INSTALLAZIONE ESTERNA CARATTERISTICHE CONNETTORI, ELEMENTI DI COMANDO E DI VISUALIZZAZIONE CAVI DI SEGNALE E DI ALIMENTAZIONE UTILIZZO REGOLAZIONE DELL'INCLINAZIONE DELLA LAMPADA...
-
Page 4: English
This device has been developed and manufactured to the highest quality standards to ensure many years of problem-free operation. Please read this user manual carefully to be able to use your new Cameo product quickly and optimally. Further information about Cameo Light is avail- able on our website CAMEOLIGHT.com. -
Page 5: Safety Instructions
This symbol identifies hazards that can cause electric shock. This symbol identifies hazardous areas or hazardous situations. This symbol indicates hazards caused by hot surfaces. This symbol indicates hazards caused by intense light sources. This symbol indicates a device in which there are no user-replaceable parts. This symbol indicates additional information on the operation of the product. - Page 6 CAUTION: 1. Do not switch on the device if it has been exposed to extreme temperature fluctu- ations (for example, following transport). Moisture and condensation can damage the device. Switch on the device only when it has reached room temperature. 2.
- Page 7 CAUTION: 1. Moving components such as mounting brackets may become jammed. 2. In the case of devices with motor-driven components, there is a risk of injury due to the movement of the device. Sudden movement of the device can cause shock reactions.
-
Page 8: Instructions For Outdoor Installation Equipment
3. Stroboscopic effects may cause epileptic seizures in susceptible individuals! 4. Permanently installed lamps are built into these lighting units. These may not be replaced by the user. The lamps contained in this lighting unit may only be replaced by the manufacturer, its service partner, or a similarly qualified person. INSTRUCTIONS FOR OUTDOOR INSTALLATION EQUIPMENT 1. -
Page 9: Features
FEATURES IP67 protection rating. Impact resistance rating IK08. 21 x 15 W high-power RGBW LEDs. DMX- 512. Strobe. 16-bit dimmer. 4 dimmer curves. Colour temperature correction. Adjustable LED PWM frequency. Fast Access Feature. Plastic feet. 1 x Omega mounting bracket included. Operat- ing voltage 100-240 V AC. - Page 10 DISPLAY MODULE A special external module with display and touch-sensitive controls is optionally available for configuring the spotlight (product number CLZIEXDISP). The module is connected to the spotlight using a special connecting cable. Ensure that the connections are tightly sealed and that moisture cannot penetrate into the spotlight housing and the housing of the display module.
-
Page 11: Signal And Power Cable
SIGNAL AND POWER CABLE There are no plugs or sockets at the cable ends of the DMX signal cable and the cable for the spotlight’s power supply. Therefore, the spotlight may only be wired by trained specialist personnel. Extensive knowledge of handling data and power cables, as well as the creation of waterproof connections and junctions according to protection class IP67, is required. - Page 12 • When the spotlight is supplied with mains voltage, the start-up process begins and the following are displayed in succession: "Welcome to Cameo", the model name and the software version. During the start-up process, the previously selected operating mode is activated and the spot- light is operational after a short time.
-
Page 13: Operation
OPERATION MAIN DISPLAY The main display shows the currently activated operating mode (in the example: DMX operating mode with start address 001). DMX Address CONFIGURING DMX START ADDRESS (DMX Address) Press MODE to access the main menu (--- Menu ---). Using the UP and DOWN controls, select the menu item DMX address (observe arrow) and confirm with ENTER. - Page 14 CONFIGURE STANDALONE MODE Press MODE to access the main menu (--- Menu ---). Use UP and DOWN to select the menu item Stand Alone (observe arrow) and confirm with ENTER. In the sub-menu you can now use UP and DOWN to select from the standalone modes Auto, Color Macro, Static, Tunable White, and User Color and the timer feature Timer.
- Page 15 COLOUR MACROS (Color Macro) 15 different preset colour macros are available. Select Color Macro as described above under CONFIGURE STANDALONE MODE and confirm with ENTER. Using the UP and DOWN controls, now select the desired colour preset (observe arrow) and confirm with ENTER (Color Off = blackout). A three-digit figure is shown on the display, and you can set the desired brightness on a scale from 000 to 100 using UP and DOWN.
- Page 16 COLOUR TEMPERATURE (Tunable White) The colour temperature mode enables you to configure the colour temperature from cold white to warm white (CCT) and the brightness (Dim) of the light directly on the device. Select the colour temperature mode as per the procedure previously described in SETTING STAND ALONE MODE and confirm with ENTER.
- Page 17 TIMER FUNCTION (Timer) The timer function allows the standalone modes “Colour Macro”, “Static”, “Tunable White” and “User Colour” to be timer controlled in such a way that the fade-in time can be set from 0 to 60 minutes, the dwell time from 1 to 24 hours and the fade-out time from 0 to 60 minutes. Time control starts immediately after activating the timer function in the previously activated stand- alone mode and remains active even if the spotlight is switched off and restarted.
- Page 18 DEVICE SETTINGS (Settings) Press MODE to access the main menu (--- Menu ---). Using the UP and DOWN controls, select the menu item Settings (observe arrow) and confirm with ENTER. ---------------- Menu ---------------- DMX Address DMX Mode Stand Alone Slave Settings System Info This will take you to the submenu for setting the following submenu items (see table, select with...
- Page 19 Color = Colour calibration R, G, B and W with maximum value Calibration (If one of the facto- ry-calibrated DMX User Cali- Individual adaptation of R, G, B, and modes is activated, no bration W with values of 000 to 255 each other calibration can (across all modes) be selected and “no...
- Page 20 Dimmer curves linear exponential logarithmic S-curve DMX value DMX value DMX value DMX value SYSTEM INFORMATION (System Info) Press MODE to access the main menu (--- Menu ---). Using the UP and DOWN controls, select System Info(observe arrow) and confirm with ENTER. ---------------- Menu ---------------- DMX Address DMX Mode...
-
Page 21: Adjusting Light Head Tilt
ADJUSTING LIGHT HEAD TILT The light head tilt is adjusted using the supplied face spanner (A). Loosen the two-hole screws on both sides of the retaining bracket (B) only so far that the light head moves freely, adjust to the desired light head tilt and re-tighten the two-hole screws. Be careful not to over-tighten the two-hole screws. -
Page 22: Installation And Truss Mountng
INSTALLATION AND TRUSS MOUNTNG Thanks to its integrated plastic feet, the light can be positioned in a suitable location on a level surface. Installation on a truss is carried out with the help of an Omega bracket which is mounted on the underside of the device base with a suitable tool (A). -
Page 23: Installation Of Optional Accessories
INSTALLATION OF OPTIONAL ACCESSORIES DIFFUSER AND GLARE SHIELD To mount accessories such as the diffuser and glare shield, loosen the 4 socket screws (see markings) using a suitable tool. Install the desired glare shield and, if required, a diffuser in the frame of the glare shield, then screw both to the spotlight using the previously loosened screws. - Page 24 MOUNTING PLATE Position the mounting plate on the underside of the spotlight base so that the holes in the base plate and the corresponding screw threads in the base are precisely aligned. Now fix the mount- ing plate to the base using the 4 supplied M4 screws and then secure the mounting plate to the spotlight base using the 2 M8 socket screws supplied with the spotlight.
-
Page 25: Install Spotlight With Optional Mounting Plate
INSTALL SPOTLIGHT WITH OPTIONAL MOUNTING PLATE When attaching the spotlight to a surface, make sure that the surface is suitable for this purpose and provides sufficient support. Ensure that the installation materials, such as screws and plugs, etc., are suitable for mounting the spotlight and the surface material. Ensure that all screw con- nections are firmly secured. -
Page 26: Care, Maintenance And Repair
CARE, MAINTENANCE AND REPAIR In order to ensure the long-term, proper functioning of the device, it must be regularly cleaned and, if necessary, maintained. The maintenance requirement depends on the intensity of use and the environment in which it is used. We generally recommend a visual inspection before each operation. - Page 27 MAINTENANCE AND REPAIR (by qualified personnel only) HAZARD! There are live components in the device. Even after disconnecting the mains connection, there may still be residual voltage in the device, e.g. due to charged capacitors. PLEASE NOTE! There are no user-serviceable assemblies in the device. PLEASE NOTE! Maintenance and repair work may only be carried out by sufficiently qualified specialist personnel.
-
Page 28: Optional Accessories
OPTIONAL ACCESSORIES Diffusers Product number CLZW300IMP Product number Diffusion angle CLZW300ISMLD20 25° CLZW300ISMLD40 45° CLZW300ISMLD100 100° CLZW300ISMLD6010 60° x 10° Mounting plate Glare shield (half top hat) Glare shield (full top hat) Product number CLZW300IHALFGS Product number CLZW300IFULLGS Display module with controls including 2 m connecting cable Product number CLZIEXDISP... -
Page 29: Technical Data
TECHNICAL DATA Product number: CLZW300i Product type: LED wash light Type: Outdoor spotlight LED colour spectrum: RGBW Number of LEDs: LED type: 15 W 4-in-1 LED PWM frequency: 800 Hz, 1200 Hz, 2000 Hz, 3600 Hz, 12 kHz, 25 kHz (adjustable) Beam angle: 21°... - Page 30 Housing material: Die-cast aluminium Housing colour: Black Corrosion resistance: C5-M powder coating Housing cooling: IP67 fan Protection class: IP67 Cable glands: Protection class IP68 Impact resistance rating: IK08 Maximum mounting height: Unlimited Projected area EPA: 0.082 m² (0.084 m² with glare shield “half top hat” and mount- ing plate) Use position: As required...
-
Page 31: Explanation Of Ip Protection Class
EXPLANATION OF IP PROTECTION CLASS 1. An IP rating only reflects protection from solid objects and water. It does not describe general weather resistance, such as protection from UV radiation and temperature, etc. 2. The first identification digit indicates protection from dust, solid objects and contact: IP2X Protected against solid foreign bodies ≥... -
Page 32: Explanatory Notes On Ik Impact Resistance Rating
EXPLANATORY NOTES ON IK IMPACT RESISTANCE RATING The IK impact resistance rating is a measure of the resistance of a housing (in the case of electri- cal equipment) to impact stress. It is standardised according to CEI EN 50102 and describes how much impact energy (in Joules) the housing can withstand without breaking. -
Page 33: Disposal
DISPOSAL Packaging: 1. Packaging can be fed into the reusable material cycle using the usual disposal meth- ods. 2. Please separate the packaging in accordance with the disposal laws and recycling regulations in your country. Device: 1. This device is subject to the European Directive on Waste Electrical and Electronic Equipment, as amended. -
Page 34: Manufacturer's Declarations
MANUFACTURER’S DECLARATIONS MANUFACTURER’S WARRANTY & LIMITATION OF LIABILITY Adam Hall GmbH, Adam-Hall-Str. 1, D-61267 Neu Anspach / E-mail Info@adamhall.com / +49 (0)6081 / 9419-0. Our current warranty conditions and limitation of liability can be found at: https://cdn-shop.adamhall.com/media/pdf/Manufacturers-Declarations-CAMEO_DE_EN_ES_ FR.pdf. Contact your sales partner for service. UKCA- CONFORMITY Hereby, Adam Hall Ltd. - Page 35 DMX CONTROL / DMX STEUERUNG / PILOTAGE DMX / CONTROL DMX / STEROWANIE DMX / CONTROLLO DMX 15 CH Full Access 16 Bit Function Values Sub-Group Dimmer 0% to 100% Dimmer Dimmer fine 0% to 100% Strobe open Strobe closed Pulse random slow ->...
- Page 36 ColorTemperature Color Temperature Correction (affects Correction Cold -> warm RGBW & Color Macros) No function Linear dimmer curve Set dimmer curve Exponential dimmer curve Set dimmer curve Logarithmic dimmer curve S-Curve dimmer curve No function Dimmer response LED (hold 1,5 s) Dimmer response halogen (hold 1,5s) No function Silent fan (hold 3s)
- Page 37 Color off Amber Yellow warm Yellow Green Turquoise Cyan Blue Lavender Color Macros Color Macros Mauve (override RGBW) Magenta Pink Warm White White Cold White Color Jumping stop Color Jumping speed slow -> fast / color 1 -> 12 Color Fading speed slow -> fast / color 1 ->...
- Page 38 8 CH 8 Bit Function Values Sub-Group Dimmer 0% to 100% Dimmer Strobe open Strobe closed Pulse random, slow -> fast Ramp up random, slow -> fast Ramp down random, slow -> fast Multifunctional Strobe functions Strobe Random Strobe effect, slow -> fast Strobe Break effect, 5s…..1s (short burst with break) Strobe slow ->...
- Page 39 no function Dimmer response LED (hold 1,5 s) Dimmer response halogen (hold 1,5s) No function Silent fan (hold 3s) Auto fan (hold 3s) No function PWM 1 (800 Hz) (hold 3s) PWM 2 (1200 Hz) (hold 3s) PWM 3 (2000 Hz) (hold 3s) Device Settings PWM 4 (3600 Hz) (hold 3s) Control...
- Page 40 3 CH Factory-Calibrated 8 Bit Function Values Sub-Group 0% to 100% Green 0% to 100% Green Blue 0% to 100% Blue 3 CH Color Macros Function Values Sub-Group Dimmer 0% to 100% Dimmer Strobe open Strobe closed Pulse random slow -> fast Ramp up random slow ->...
- Page 41 EN: (1*) After the adjustments have been made, set the value to 000 to avoid disturbance by endless function call. DE: (1*) Nachdem die Einstellungen vorgenommen wurden, stellen Sie den Wert auf 000 ein, um Störungen durch endlosen Funktionsaufruf zu vermeiden. FR: (1*) Une fois les ajustements effectués, réglez la valeur sur 000 pour éviter les perturbations par appel de fonction sans fin.
- Page 43 CAMEOLIGHT.COM Adam Hall GmbH Adam-Hall-Str. 1 | 61267 Neu-Anspach | Germany Phone: +49 6081 9419-0 | adamhall.com Adam Hall Ltd. | The Seedbed Business Centre | SS3 9QY Essex | United Kingdom REV: 01...
