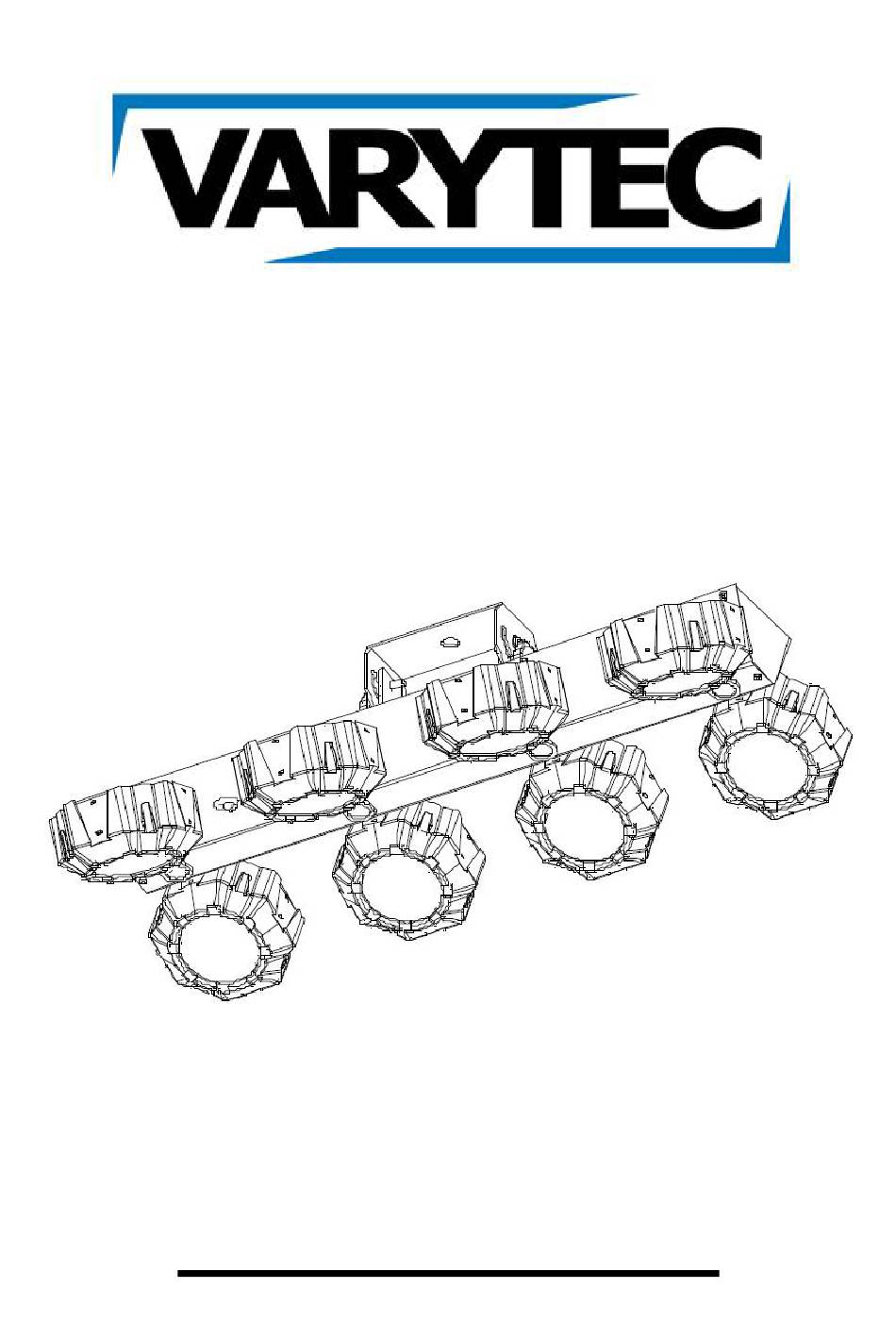

  • Page 1 Manual LED Spider Beam...

  • Page 2: Table Of Contents

    Table of contents Safety instructions ..........................3 1.1. FOR SAFE AND EFFICIENT OPERATION ................3 Designated use ..........................4 2.1. Overhead installation ....................... 5 Introduction ............................7 3.1. Product overview ........................7 Connections ............................. 8 4.1. Electrical connections ......................8 4.2.

  • Page 3: Safety Instructions

    1. Safety instructions  This device is suitable for indoor use (not outdoors) only.  All modifications to the device will void the warranty.  Repairs are to carry out by skilled personnel only.  Use only fuses of the same type and original parts as spare parts. ...

  • Page 4: Designated Use

    2. Designated use This device was developed for professional use on stages, in discos, theatres etc. The device is only approved for a connection up to 230V 50/60 Hz AC voltage and only for indoor use. Regular breaks during operation increase the lifetime of your device. Avoid convulsions or any form of forceful impact during the installation or the start-up of the device.

  • Page 5: Overhead Installation

    2.1. Overhead installation Danger of life! You have to observe the regulations of BGV C1 (formerly VBG 70) and EN60598-2-17 Installations are to carry out by skilled personnel only. The suspension devices have to be build and measured so they can withstand for an hour the tenfold of the payload without suffering a permanent detrimental deformation.
  • Page 6 The maximum drop exceed must not exceed 20cm. A safety rope once exposed to failing load or damaged may not be used furthermore. Adjust the desired inclination angle via the mounting bracket and tighten the screw. 6 / 16...

  • Page 7: Introduction

    3. Introduction Thank you for buying the LED Spider Beam. It is a powerful device. The device is designed so that not more than one color can be output simultaneously. For a successful installation and operation, please read this manual carefully.

  • Page 8: Connections

    4. Connections 4.1. Electrical connections If you wish to change the power supply settings, see the chapter Appendix. Connect the fixture to the mains with the enclosed power cable and plug. The earth has to be connected. Cable (EU) Cable (US) International Brown Black...

  • Page 9: Control

    5. Control Press MODE to reach the first menu and use UP/DOWN to get to submenu. To open submenu you have to press ENTER, here you can also reach other menu items with UP/DOWN buttons, confirm with ENTER. Press MODE to store your settings. 5.1.

  • Page 10: Dmx Chart

    6. DMX chart 6.1. DMX mode 1(3 channels) Channel Value from Value to Function No function Activates an automatic program of channel 2 Activates a strobe program of channel 2. Activates the shows of channel 2. Activates an automatic program in Sound-to-Light mode of channel 2 Activates a strobe program in Sound-to-Light mode of channel 2.
  • Page 11 Strobe program 6 Strobe program 7 Strobe program 8 Strobe program 9 Strobe program 10 You have to activate the shows with channel 1. Show 1 Show 2 Show 3 You have to activate the automatic programs in Sound-to-Light mode with channel 1. Automatic program 1 Automatic program 2 Automatic program 3...

  • Page 12: Dmx Mode 2 (9 Channels)

    You have to activate the shows in Sound-to-Light mode with channel 1. Show 1 Show 2 Show 3 Setting the speed slow - fast 6.2. DMX mode 2 (9 channels) Channel Value from Value to Function Dimmer red 0-100% LED 1 Dimmer green 0-100% LED 1 Dimmer blue 0-100% LED 1 Dimmer red 0-100% LED 2...
  • Page 13 Dimmer blue 0-100% LED 3 Dimmer red 0-100% LED 4 Dimmer green 0-100% LED 4 Dimmer blue 0-100% LED 4 Dimmer red 0-100% LED 5 Dimmer green 0-100% LED 5 Dimmer blue 0-100% LED 5 Dimmer red 0-100% LED 6 Dimmer green 0-100% LED 6 Dimmer blue 0-100% LED 6 Dimmer red 0-100% LED 7...

  • Page 14: Technical Data

    7. Technical data Power supply Voltage AC 100-240 V; 50/60 Hz Power consumption max. 30 W Light source LM type LED 3in1 and strobe LED white Color spectrum RGBW (You can only use single colors) Number / Power 8 x 9W (each 3W for red, green and blue) 4 x 1W (Strobe LED) Connections Power in...
  • Page 15 15 / 16...
  • Page 16 Importer: B & K Braun GmbH Industriestraße 2 D-76307 Karlsbad www.bkbraun.com info@bkbraun.com 16 / 16...
