Carrier 39CS Installation, Operation And Maintenance Instructions

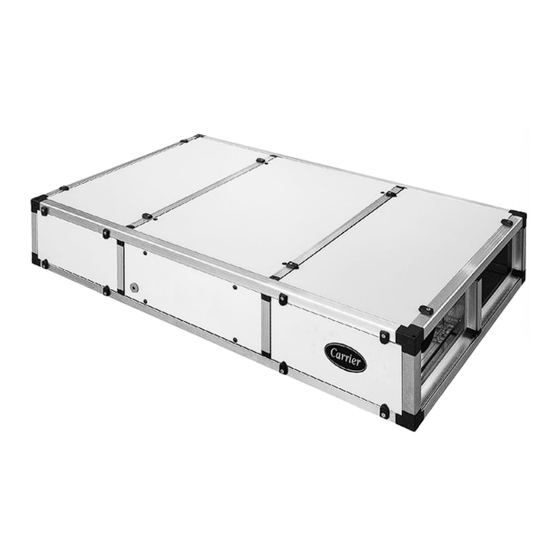

Ventilation unit with heat recovery for vertical and horizontal indoor and outdoor installation
Hide thumbs Also See for 39CS:
Table of Contents

Advertisement

Quick Links

Download this manual
I N S T A L L A T I O N ,
O P E R A T I O N
AND MAINTENANCE INSTRUCTIONS

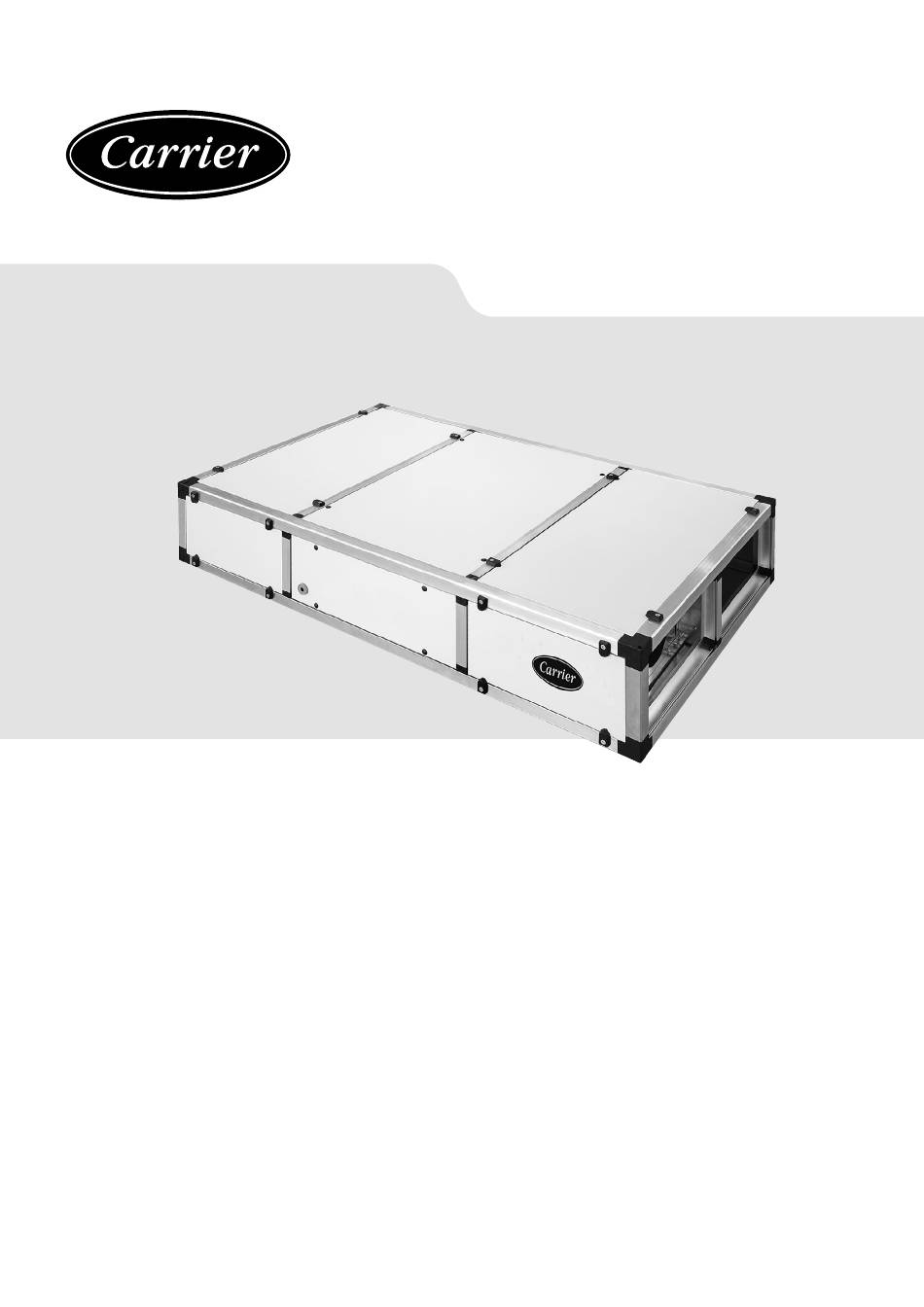

Ventilation unit with heat recovery for vertical
and horizontal indoor and outdoor installation
39CS
Very high-efficiency heat recovery unit
Original document
