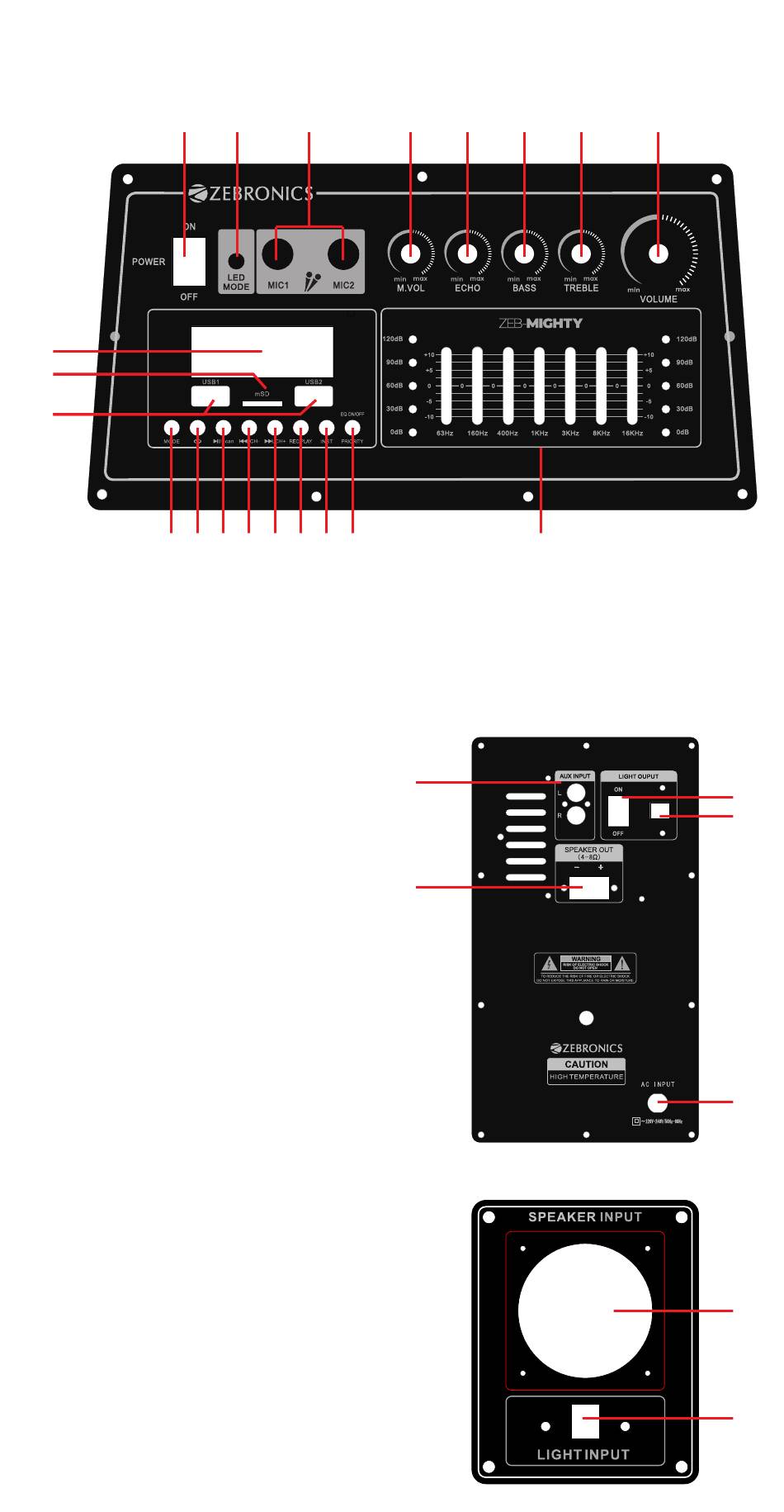

Control Description

9
11
10
12
1. Power ON/OFF Switch
2. LED Mode
3. Dual Microphone Inputs
4. Microphone Volume Control
5. Echo Control Knob
6. BASS Control Knob
7. Treble Control Knob
8. Master Volume Control
9. LED Display
10. Dual USB Inputs
11. mSD Input
12. INPUT Mode Button
13. Repeat Button
14. PLAY / PAUSE / SCAN
15. Previous / Channel -
16. Next / Channel +
17. Record / Record Play
18. INST Button - This Button is used for
muting vocals from the audio output
which is played from the audio source.
19. (Equalizer ON/ OFF) /
Microphone Priority
20. Equalizer Control Panel
21. AUX Input
22. Speaker Output
23. LED On/Off Switch
24. LED Output for Passive
25. AC Input
26. Speaker Input on Passive
27. Light Input on Passive
1 2 3
13 14 15 16 17 18 19
4 5 6
20
21
22
7 8
23
24
25
26
27
