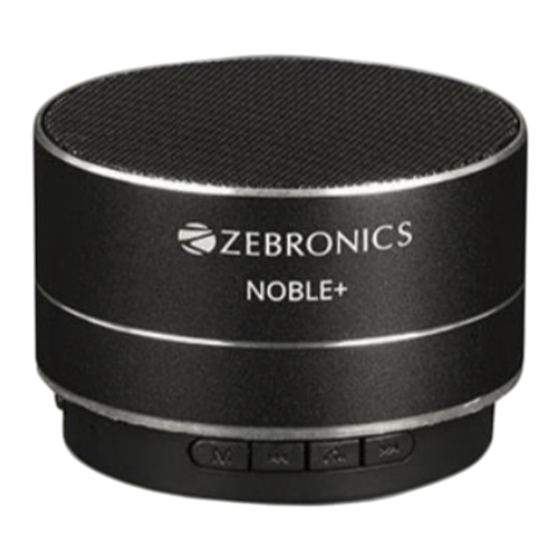

- Page 2 Product Demo ZEB-NOBLE+ Portable BT Speaker...
- Page 3 ZEB-NOBLE+ • Compact & Portable • Built-in Rechargeable Battery • Call Function • Metal Body • Dedicated On/Off Switch • Earphone Compatible • Volume/Media Control • Available in two vibrant colors (Black & Rose Gold)
- Page 4 ZEB-NOBLE+ Connectivity • • FM Radio • • • Micro SD Card...
- Page 5 Keys & Ports ZEB-NOBLE+ Play/Pause Mode Button Earphone Jack Charging & Call Function key USB Slot Aux Port Previous Track & Next Track & Volume - key Volume + key...
- Page 6 Basic Operations & Controls BT Connectivity • Turn on the speaker. • Make sure that the speaker is in BT mode. • Search for nearby BT devices in your mobile. • Tap on BT Name “ZEB-NOBLE+” to connect. •Short Press: Previous Song •Short Press: Next Song •Long Press: Volume - •Long Press: Volume +...
- Page 7 Basic Operations & Controls (Contd.) FM Radio • Switch the Speaker to FM Mode by pressing the Mode button. • Connect the charging cable to the speaker and leave the other end free (This cable will act as an antenna). •...
- Page 8 Basic Operations & Controls (Contd.) AUX Mode • Once the speaker is in AUX Mode, connect the charging cable to the speaker & connect the 3.5mm jack to a audio source (Eg. Computer, mobile). • Now the songs played by the audio source can be heard through the speaker. •Press once: Change Mode •Press &...
- Page 9 Basic Operations & Controls (Contd.) USB/Micro SD Card Mode • When the speaker is on, insert the USB/Micro SD card to the speaker. • The speaker will detect the USB/Micro SD card automatically & play the songs from the USB/Micro SD card. •Press once: Change Mode •Press once: Previous Song •Press &...
- Page 10 Basic Operations & Controls (Contd.) Call Function • When the speaker is connected to a mobile via BT. • Press the play-pause key to answer/hung up a call. • Double Press the Play/Pause key to redial the last number dialed. •...
-
Page 11: Specifications
Specifications ZEB-NOBLE+ • Output Power (RMS): 3W • BT Version: 4.2 • Driver Size: 54mm • Max Supported USB/mSD Memory Size: 32GB • Playback Time: 1 hrs • Product Dimension (Dia X H): 70 x 48 mm • Net. Weight: 160g Package Contents •...
