Summary of Contents for Zebronics ZEB-SAMBA PLUS

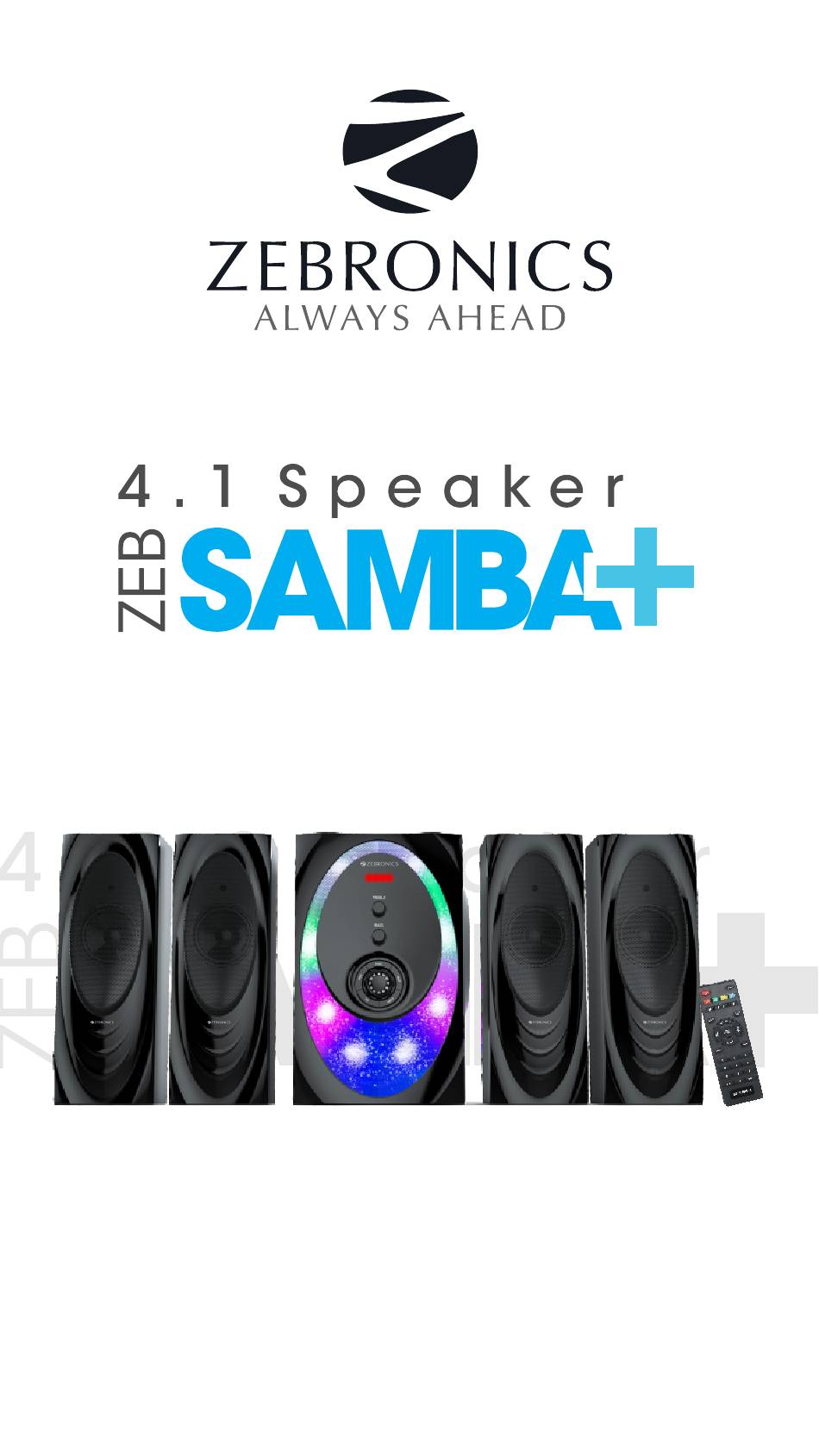

- Page 1 User Manual www.zebronics.com...

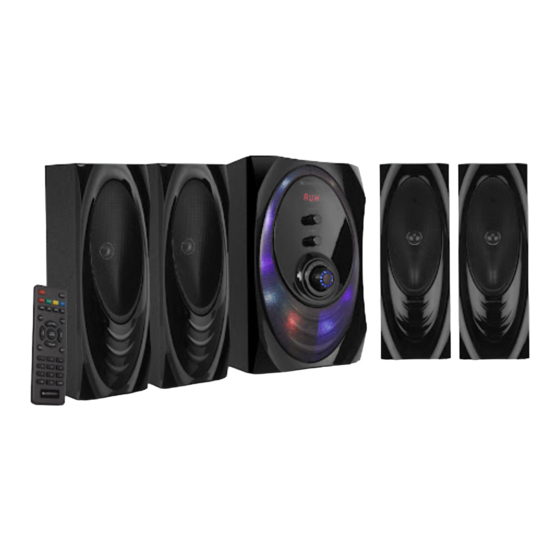

- Page 2 Dear Consumer, Thank you for purchasing ZEB-SAMBA PLUS 4.1 Speaker. Please read the user manual carefully before usage & save it for future reference. Note : • Avoid the usage of this product at the high temperature and high humidity environment.
- Page 3 : 2ch RCA Max. supported memory size (USB/SD) : 32GB FM frequency range : 87MHz-108 Mhz BT name : ZEB-SAMBA PLUS BT version : 5.0 Product dimension (W x D x H) Subwoofer : 20 x 34 x 32.5 cm Satellite :11.5 x 10.5 x 32.3 cm...
- Page 4 Front panel description 1. SD CARD: SD/MMC Card Slot 2. USB: USB Port for the pen drive 3. TREBLE: Treble +/- control 4. BASS: Bass +/- control 5. PREV: In USB/SD mode: Press to go to previous track. In FM mode: Press to go to previous pre-saved FM channel.
- Page 5 6. PLAY: In USB/SD mode: Press to Play the track. Press again to Pause the playing track. Press to Play again. In FM mode: Long Press to search and save the FM Channels. Short Press will Mute the audio in Aux & FM Modes. Press again to release it from Mute.
-
Page 6: Rear Panel Description
4 . 1 S p e a k e r SAMBA R-41171719 Input Voltage : AC 220 - 240V 50/60Hz Output Power (RMS) : 105W (45W +15W x 4) www.bis.gov.in www.zebronics.com SATELLITE SUBWOOFER SATELLITE CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN The lightning flash with arrowhead... -
Page 7: Remote Control
Remote Control POWER MUTE / UNMUTE MUTE BUTTON AUX MODE BT MODE USB MODE SD MODE INPUT MODE INPUT PLAY VOLUME + NEXT PLAY PREVIOUS PA USE PLAY/PAUSE/SCAN VOLUME - PREV NEXT NUMERIC BUTTONS 100+ EQUALIZER 100+ Power : standby ON/OFF Numeric Pad (0-9) : To select direct tracks from SD Card / USB drive select two digits by consecutively pressing... - Page 8 Mode” button to switch to BT Mode. Switch ON BT on your phone or tablet and search for nearby BT devices, Search for the BT name “ZEB-SAMBA PLUS” and tap to connect it. USB/SD Mode: The speaker automatically switches to USB/SD input mode with the LED display when a USB flash drive/SD Card is inserted (this...
- Page 9 RCA to 3.5mm. Connect the one end of the cable to the speaker and the other end to an audio source. The songs from the audio source can be heard through the speaker. ISO 9001:2015 Certified Company www.zebronics.com...
