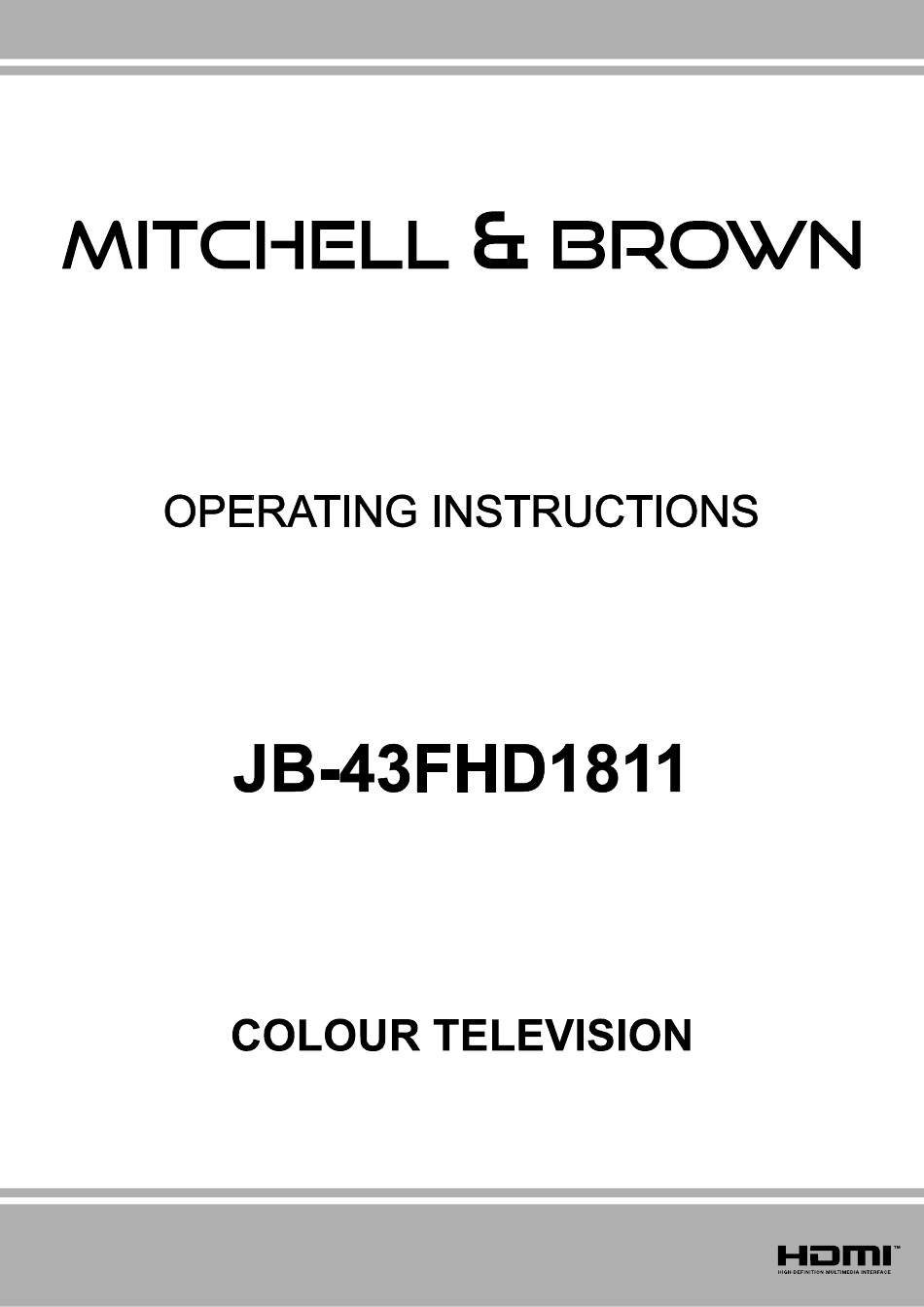

Mitchell & Brown JB-43FHD1811 Operating Instructions Manual

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the JB-43FHD1811 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Mitchell & Brown JB-43FHD1811

  • Page 2: Table Of Contents

    Wireless Connectivity ..........25 Contents Networked Standby Mode ........26 Safety Information ........... 2 Wireless Display ............ 27 Markings on the Product.......... 2 Connecting Other Wireless Devices ...... 27 Environmental Information........3 Connectivity Troubleshooting ........ 28 Features ..............4 Using Audio Video Sharing Network Service ..28 High Dynamic Range (HDR) / Hybrid Log-Gamma (HLG) ...............
  • Page 3: Safety Information

    � Do not place any heat sources such as electric Safety Information heaters, radiators, etc. near the TV set. � Do not place the TV on the floor or inclined surfaces. � To avoid danger of suffocation, keep plastic bags CAUTION out of the reach of babies, children and domestic RISK OF ELECTRIC SHOCK...
  • Page 4: Environmental Information

    Using the special functions to change the size of the WARNING displayed image (i.e. changing the height/width ratio) for the purposes of public display or commercial gain Do not ingest the battery, Chemical Burn Hazard. may infringe on copyright laws. This product or the accessories supplied with the pro- duct may contain a coin/button cell battery.
  • Page 5: Features

    Features Standby Mode Picture � Remote controlled colour TV You can use your TV as a digital picture frame using the Standby Mode Picture feature. In order to do this � Fully integrated digital terrestrial TV (DVB-T-T2) follow the steps below. �...
  • Page 6: Tv Control Button & Operation

    The Auto Power Down option (in the Settings>System 2 seconds to activate this option. The icon colour of the option changes when activated. Then press the >More menu) could have been set to a value between button once again to turn the TV off. 1 and 8 hours by default.
  • Page 7: Using Main Tv Menu

    3.2. Guide Using Main TV Menu You can access the electronic programme guide menu When the Home button is pressed, the main TV menu using this option. Refer to Electronic Programme will appear on the screen. You can navigate through Guide section for more information.
  • Page 8: Inserting The Batteries Into The Remote

    You can reset your customisations on the Home menu Antenna Connection to defaults using the Reset Apps option (availability Connect the aerial TV plug to the aerial input (ANT) depends on TV model and its features). Highlight and socket located on the rear side of the TV. press OK.
  • Page 9: Disposal Information

    The “CI Plus” Logo is a trademark of CI Plus LLP. Specification This product is protected by certain intellectual property rights of Microsoft Corporation. Use or distribution of Fully �ntegrated d�g�tal such technology outside of this product is prohibited Digital Reception terrestr�al TV (DVB-T) (DVB-T2 compl�ant) without a licence from Microsoft or an authorised...
  • Page 10: Remote Control

    Standby (*): Standby / On (press briefly) Remote Control Reset / Power Off (press and hold) Numeric buttons: Switches the channel, enters a number or a letter in the text box on the screen Language: Displays and changes audio/subtitle language and turns subtitles on or off (digital TV, where available) Mute: Completely turns off the volume of the TV �.
  • Page 11: Connections

    Connections Connector Type Cables Device When using the wall mounting kit (available from a third party HDMI in the market, if not supplied), Connection we recommend that you plug all (side&back) your cables into the back of the TV before mounting on the wall. SPDIF SPDIF Insert or remove the CI module...
  • Page 12: Switching On/Off

    energy and be more environmentally friendly select Switching On/Off Natural and press OK to continue. You can change To Switch the TV On your selection later using the Mode option in the Connect the power cord to a power source such as a Settings>Picture menu.
  • Page 13: Media Playback Via Usb Input

    On next screen you can set broadcast types to be You can use USB hubs with your TV’s USB input. searched, set your encrypted channel searching External power supplied USB hubs are recommended and time zone (depending on the country selection) in such a case.
  • Page 14: Followme Tv

    FollowMe TV E-Manual You can find instructions for your TV’s features in the With your mobile device you can stream the current E-Manual. broadcast from your smart TV using the FollowMe To access the E-Manual, enter Settings menu, select TV feature. Install the appropriate Smart Center Manuals and press OK.
  • Page 15: Settings Menu Content

    Settings Menu Content Devices Menu Content Press OK to open the Audio Link menu screen. Using this screen you can discover and Audio Link connect the sound devices to your TV wirelessly. Press OK to open the Input Device menu screen. Using this screen you can discover and connect keyboards and mice to your TV wirelessly.
  • Page 16 Low, Medium, High and Off options are available. While Micro Dimming is active, it Micro Dimming will enhance contrast locally for each defined zone. Low, Medium, High and Off options are available. If the signal is weak and the picture Noise Reduction is noisy, use the Noise Reduction setting to reduce the amount of noise.
  • Page 17 Sound Menu Content Smart, Movie, Music, News and Off options will be available. Set as Off to disable. Dolby Audio Note: Some items in Sound menu will be greyed out and unavailable if set to an option other than Off. Surround Sound Surround Sound mode can be changed as On or Off.
  • Page 18 Network Menu Content Network Type Disable the network connection or change the connection type. Scan Wireless Start a search for wireless networks. This option will be available if the Network Type Networks is set as Wireless Device. To disconnect from a wireless network and delete your saved wireless network profile (if previously saved), highlight this option and press OK.
  • Page 19 System Menu Content Accessibility Displays accessibility options of the TV. Increase the contrast of the menu options and texts to make them easier to read. White High Contrast Text, Yellow Text and Off options will be available. Hard of Hearing Enables any special feature sent from the broadcaster.
  • Page 20 Date/Time Sets date and time. Sources Edit the names, enable or disable selected source options. If this feature is supported by your TV, you can view your ESN(*) number and deactivate Netflix Netflix. (*) ESN number is an unique ID number for Netflix, created especially to identify your TV. Samba Interactive TV powers recommendations and other apps by gathering data regarding consumption of specific on-screen content to enhance your viewing experience.
  • Page 21: General Tv Operation

    Note: If the country option in the First Time Installation General TV Operation is set as France, Italy or Austria, Maturity Lock’s value will be set to 18 as default. Using the Channel List Child Lock: If this option is set to On, the TV can only The TV sorts all stored stations in the channel list.
  • Page 22: Teletext Services (Where Available)

    Highlight Extras tab and press OK to access below requirements for Freeview Play services refer to the options. Connectivity and Freeview Play Platform sections. Highlight Genre: Displays Highlight Genre menu. Teletext Services (where available) Select a genre and press OK. The events in the Press the Text button to enter.
  • Page 23: Troubleshooting & Tips

    If a new upgrade is found, it starts to download the AV and HDMI Signal Compatibility upgrade. After the download is completed, a warning will be displayed, press OK button to complete software Source Supported Signals Available upgrade process and restart TV. 3 AM search and upgrade mode SECAM Your TV will search for new upgrades at 3:00 o’clock...
  • Page 24: Supported File Formats For Usb Mode

    Supported File Formats for USB Mode Video File Formats Extension Video Codec Max. Resolution & Frame Rate & Bit Rate .mpg, .mpeg, .dat, .vob MPEG1/2, H.264, VC1 .ts, .trp, .m2ts .avi MPEG1/2, MPEG4, H.264, MJPEG .mp4, .m4a, .m4v, .mov, .qt, MPEG1/2, H.263, MPEG4, H.264 .3gp, .3g2, .3gpp .mkv...
  • Page 25: Subtitle File Formats

    Subtitle File Formats External Subtitles Extension Specification .ssa SubStation Alpha .ass Advanced SubStation Alpha .srt Subripper .sub Micro DVD / SubViewer .sub + .idx VOBSub .txt Micro DVD / TMPlayer / MPL2 .mpl MPL2 .smi Sami .jss JACOSUB .ttml TTML .txt / .sub DVDSUBTITLE .lrc...
  • Page 26: Connectivity

    Internet Speed Test Connectivity Highlight Internet Speed Test and press the OK Wired Connectivity button. The TV will check the internet connection To Connect to a Wired Network bandwidth and display the result when complete. � You must have a modem/router connected to an Advanced Settings act�ve broadband connect�on.
  • Page 27: Networked Standby Mode

    � The locat�on where the transm�ss�on �s most effect�ve Advanced Sett�ngs and press the OK button to d�ffers depend�ng on the usage env�ronment. open the advanced sett�ng menu. �se d�rect�onal and numer�c buttons to set. H�ghl�ght Save and press the �...
  • Page 28: Wireless Display

    The performance of some devices in the market, Start the device discovery. A list of available wireless may vary due to the software architecture. In order to devices will be displayed. Select the device you want use Networked Standby Mode feature with a better to connect from the list and press the OK button to performance, please make sure that your device has connect.
  • Page 29: Connectivity Troubleshooting

    Connectivity Troubleshooting Using Audio Video Sharing Network Service Wireless Network Not Available Aud�o V�deo Shar�ng feature uses a standard that eases the v�ew�ng process of d�g�tal electron�cs and � Ensure that any firewalls of your network allow the makes them more conven�ent to use on a home TV wireless connection.
  • Page 30: Freeview Play Platform

    Navigate to Filter Type and press OK. Set to Children You can also access the application market from within the More Apps menu. and press OK to activate the filter. You can set it to None to deactivate. You can reset your customisations on the Home menu, including app-related ones, to defaults using the Requirements Reset Apps option in the Settings menu (availability...
  • Page 31: Hbbtv System

    Enter keyword/s into the search/address bar and both ways or one of them. If the platform does not have highlight the Enter button on the virtual keyboard an operational broadband connection, the platform and press the OK button to start a search for the can still launch applications transmitted on broadcast.
  • Page 32 The application retrieves actual channel list from TV Detail Page first when it starts. To open detail page tap on a programme. On the MY CHANNELS: The programmes of first four detail page screen you can get detailed information channels from the channel list retrieved from the TV of the programmes you select.
  • Page 33: Google Assistant

    Keyboard Page � You will be asked to determine a name for your TV on the next screen, called ‘Friendly Name’ (FN). A The keyboard page can be opened in two ways; by ‘Friendly Name’ is a name that reminds you of your pressing the Keyboard( ) widget on the application TV, such as ‘Living Room TV’, ‘Kitchen TV’, ‘Dining...
  • Page 34: Dvb Functionality Information

    DVB functionality information This DVB receiver is only suitable for use in the country which it was designed to be used in. Although this DVB receiver conforms to the latest DVB specifications at the time of manufacture, we cannot guarantee compatibility with future DVB transmissions due to changes that may be implemented in broadcast signals and technologies.
  • Page 35: Important Instructions

    Important Instructions For your own safety read the following instructions carefully before attempting to connect this unit to the mains supply. MAINS (AC) OPERATION The wires in the mains lead are coloured in accordance with the following code : GREEN &...
  • Page 36 VESA WALL MOUNT MEASUREMENTS H��e ���e�� Sizes (mm) S��e� Sizes min. (mm) Le���� (�) max. (mm) T��e�� (�) �ereby� VE�TE� Elektronik �anayi ve Ticaret �.�.� declares that the radio e�uipment type TFT IDTV is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: doc.vosshub.com Mitchell &...
