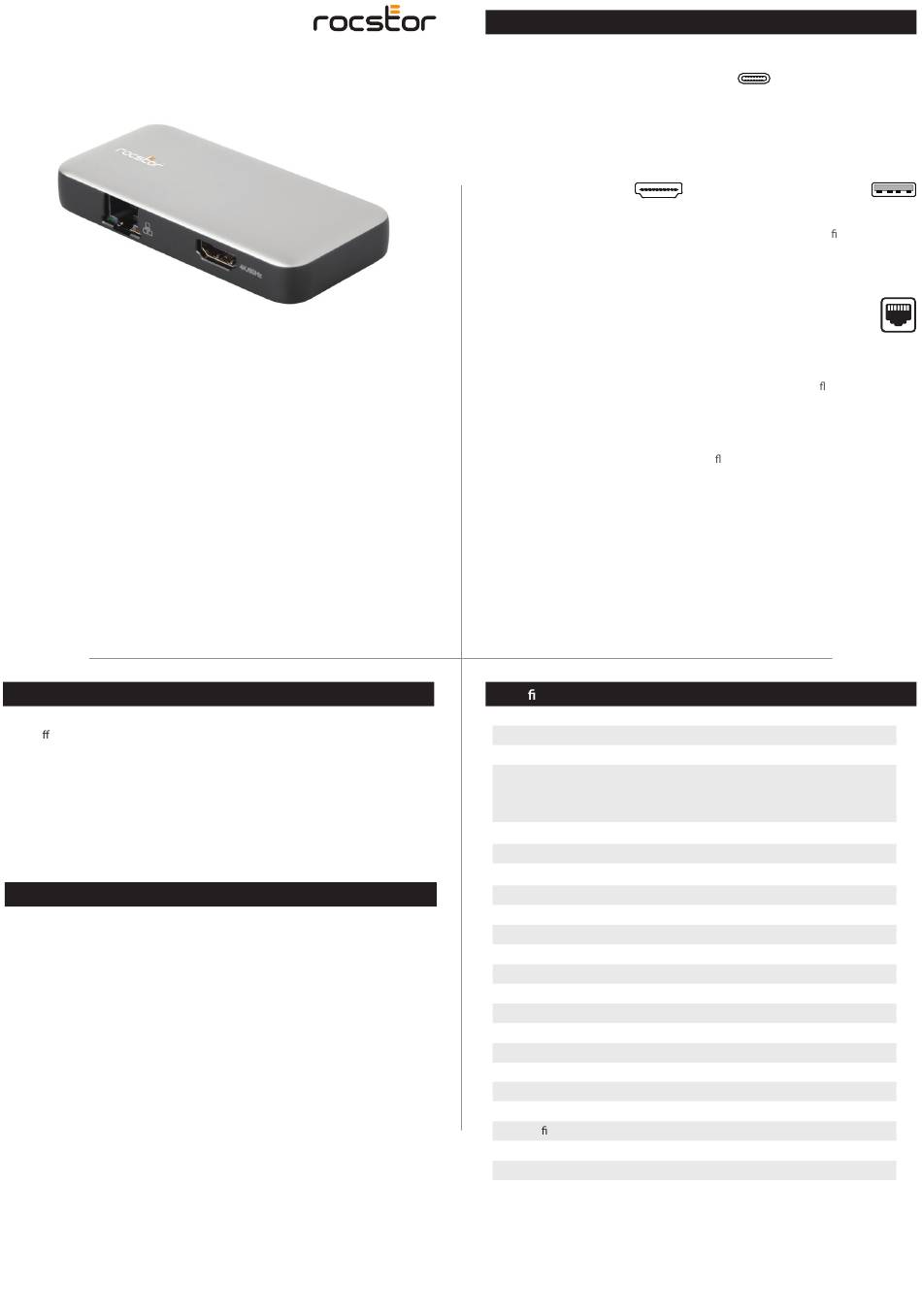

Rocstor Y10A304-B1 User Manual

Type-C to HDMI/USB-AX2/RJ45
with DP1.4 Alt mode
Congratulations
Thank you for purchasing this premium Rocstor product. For optimum performance and
safety, please read these instructions carefully before connecting, operating or using this
product. Please keep this manual for future reference.
Introduction
Rocstor introduces a Type-C 4-in-1 hub featuring HDMI, USB-A, and Gigabit Ethernet
ports, o ering an optimal solution for expanding the port options of Type-C/Thunder-
bolt 3 hosts, especially those with a single Type-C port. With its integrated captive
cable that can be conveniently wrapped at the bottom, this hub enhances user
experience and convenience. Utilizing the DP1.4 Alt mode supported IC, it enables
HDMI video output at a maximum resolution of 4k/60Hz while simultaneously
transferring USB 3.1 data at up to 5Gbps. Additionally, the Gigabit Ethernet port
ensures super-fast Ethernet connectivity. Compatible with all DP Alt mode supported
Type-C hosts, this hub provides versatile compatibility and seamless operation.
Package Contents
Before attempting to use this unit, please check the packaging and make sure the
following items are contained in the packaging:
• Main Unit x1
• User Manual
User Manual
Y10A304-B1
®
Features
Upstream:
USB Type-C Male (Connect to a host computer)
• Support DP1.4 Alt mode, with bandwidth max 2 lanes 16.2Gbps (8.1Gbps per lane),
downward compatible with DP1.2 Alt mode
Note: To get max bandwidth, the host should support DP1.4 Alt mode
Downstream:
HDMI （DP Alt Mode Only）
• Supports max 4K/60Hz output with
18Gbps Bandwidth
• Supports 8/10 bit color depth output
• Supports output pixel format RGB /
YCbCr4:4:4/ YCbCr4:2:2/ YCbCr4:2:0
• Supports HDR ,HPD
• Supports HDCP 2.2&HDCP1.4
Note: When connecting a DP1.4 Alt mode
supported host, the max resolution of
HDMI is 4k/60Hz; When connecting a
DP1.2 Alt mode supported host, the max
resolution of HDMI is 4k/30Hz due to
bandwidth limitation
Speci cation
Input / Output Connector
Input
Output
Mechanical
Weight Operating Temperature
Size
Warranty
Limited Warranty
Environmental
Operating Temperature Operating Temperature
Operating Humidity
Storage Temperature
Storage Humidity
Electronic Parameter
Working Voltage
Working Current
Power Consumption
Regulatory Approvals
Certi cations
Accessory Adapter
User Manual
USB-A X2
• Max 5Gbps data transmission per port
• Supports USB 3.0 Speci cation
• Supports short-circuit, over-current,
over-voltage protection
RJ45
• Supports Gigabit
Ethernet,10M/100M/1000M
• Supports Wake-On-LAN
• Supports full duplex ow control
• Light indicates the state, no
light when no Internet connected,
orange light turns on when network
connection is established, yellow light
ashes when transmitting data
USB-C Male x1
HDMI Female x1
USB-A Female x2
RJ45 x1
0°C to 45°C (32°F to 113°F) g
mm
3 Years
0°C to 45°C (32°F to 113°F)
10% to 90% RH (no condensation)
-10°C to 70°C (14°F to 158°F)
10% to 90 % RH (no condensation)
4.75-5.3V
400mA-2700mA
2W
FCC, CE
