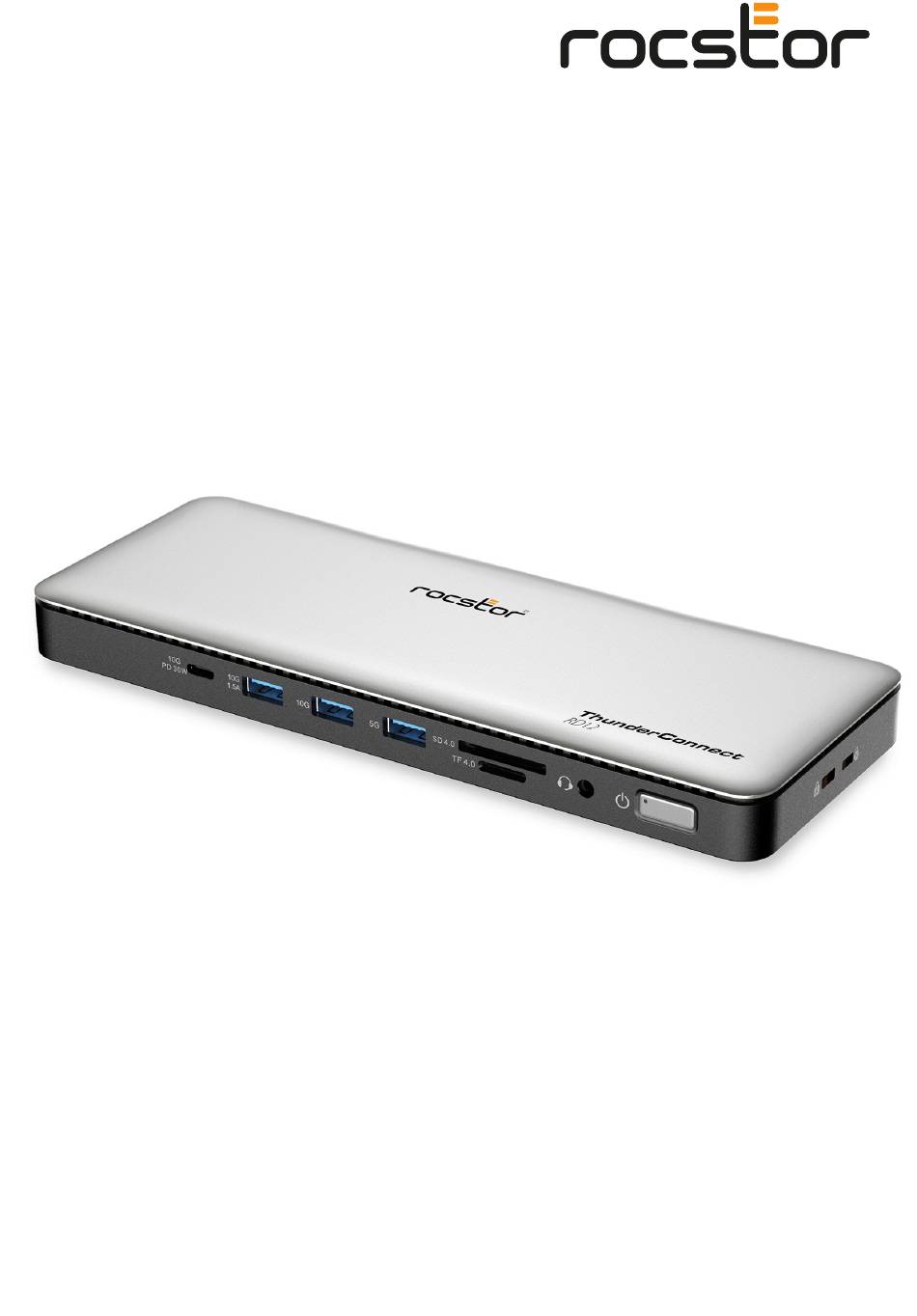

- Page 1 ® Rocstor ThunderConnect RD12 Thunderbolt 4 Multi-Display Docking Station User Manual Y10P036-S1...
-
Page 2: Important Safety Notice
Never connect or disconnect the device with wet hands. Introduction Rocstor introduces the most powerful Thunderbolt™ 4 dock, o ering an advanced, e cient, and versatile I/O solution with speeds of up to 40Gb/s for data and video transmission. The Thunderbolt 4 port enables cascading Thunderbolt devices up to 6 levels, supporting one 8K monitor or two 4K/60Hz monitors. - Page 3 Features • Adopting Goshen Ridge solution. • Slim, compact design. • Designed for TBT4/USB4-based PCs and compatible with TBT3/DP-Alt-mode PCs. • Supports Thunderbolt 4 max 40Gbps for high-speed data and outstanding video transfer, compatible with TBT3, USB4, DP Alt mode, and USB protocols. •...
-
Page 4: Panel Description
Panel Description Front Panel USB-C 10G or Max Output PD 30W SD/TF (Max 312Mbps) USB-A 10G 3.5mm Audio USB-A 5G LED/Power Switch Back Panel RJ45 Max 2.5G Stream1: HDMI (4K/60Hz) Stream3: DP2 (8K/30Hz) or HDMI2 (2K/60Hz) Thunderbolt 4 x2 (to device) Stream2: DP1 (8K/30Hz) 20V Power Supply... - Page 5 Panel Description Side Panels Kensington Anti-Theft Lock Thunderbolt 4 (to host) Standard Nano Anti-Theft Lock...
-
Page 6: Speci Cations
Speci cations Input/Output Connector Upstream Thunderbolt™ 4 Female (to host) x1 Downstream Thunderbolt™ 4 Female x2 DP x2 HDMI x2 USB-C(10G or PD 30W output) x1 USB-A (10G) x2 USB-A (5G) x1 SD/TF 4.0 x1 RJ45 (2.5G) x1 3.5mm Audio JACK (384KHz) x1 Power Jack (150W) x1 Physical Size (L-W-H) - Page 7 Port Specs Video Ports: Thunderbolt 4 Female (to host) • Stream1: HDMI 1 (close to Thunderbolt 4 • Adopting Goshen Ridge solution with max downstream port) 40Gbps for high speed data and outstanding • Stream2: DisplayPort1 video transfer • Stream3: HDMI 2 or DisplayPort 2 •...
- Page 8 Port Specs 3.5mm Audio JACK X1 RJ45 X1 • Supports 10M/100M/1000M/2.5G bandwidth • Supports 16/24/32-bit, 8/16/22.05/24/32/44.1/ • Complies with IEEE 802.3, IEEE 802.3u, IEEE 48/96/176.4/192/384KHz Sample Rate 802.3ab, IEEE 802.3bz. support IEEE • Supports Stereo output and microphone input 802.3az-2010(EEE), IEEE 802.1P, IEEE 802.1Q, •...
- Page 9 Connection Diagram (Front Panel) USB 10G Devices USB-C 10G Devices or Max Output PD 30W Standard Nano Anti-Theft Lock Kensington Anti-Theft Lock Power Switch Micro SD USB 5G Devices SD Card Max 312 Mbps Headset...
- Page 10 Connection Diagram (Back Panel) • Allow to cascade Thunderbolt devices up to 6 levels. • Allow to output dual videos simultaneously with di erent pictures. USB4/Thunderbolt Ethernet Source PC or Mac (Max 2.5G) 20V Power Adapter Stream3: Stream2: Stream1: TBT4/USB4/TBT3 PCs DP2 (8K/30Hz) or DP1 (8K/30Hz) HDMI1 (4K/60Hz)
-
Page 11: Contact Information
Disclaimer ©2024 Rocstor, Inc. All rights reserved. Rocstor is registered trademark of Rocstor, Inc. Apple®, the Apple logo, Mac®, MacBook®, MacBook Pro®, MacBook Air®, iPad®, iPad Air®, iPad mini®, iPad Air®, iPhone®, MacOS® are registered trademarks of Apple, Inc. Google® and Chromebook™ are registered trademarks of Google, LLC.
