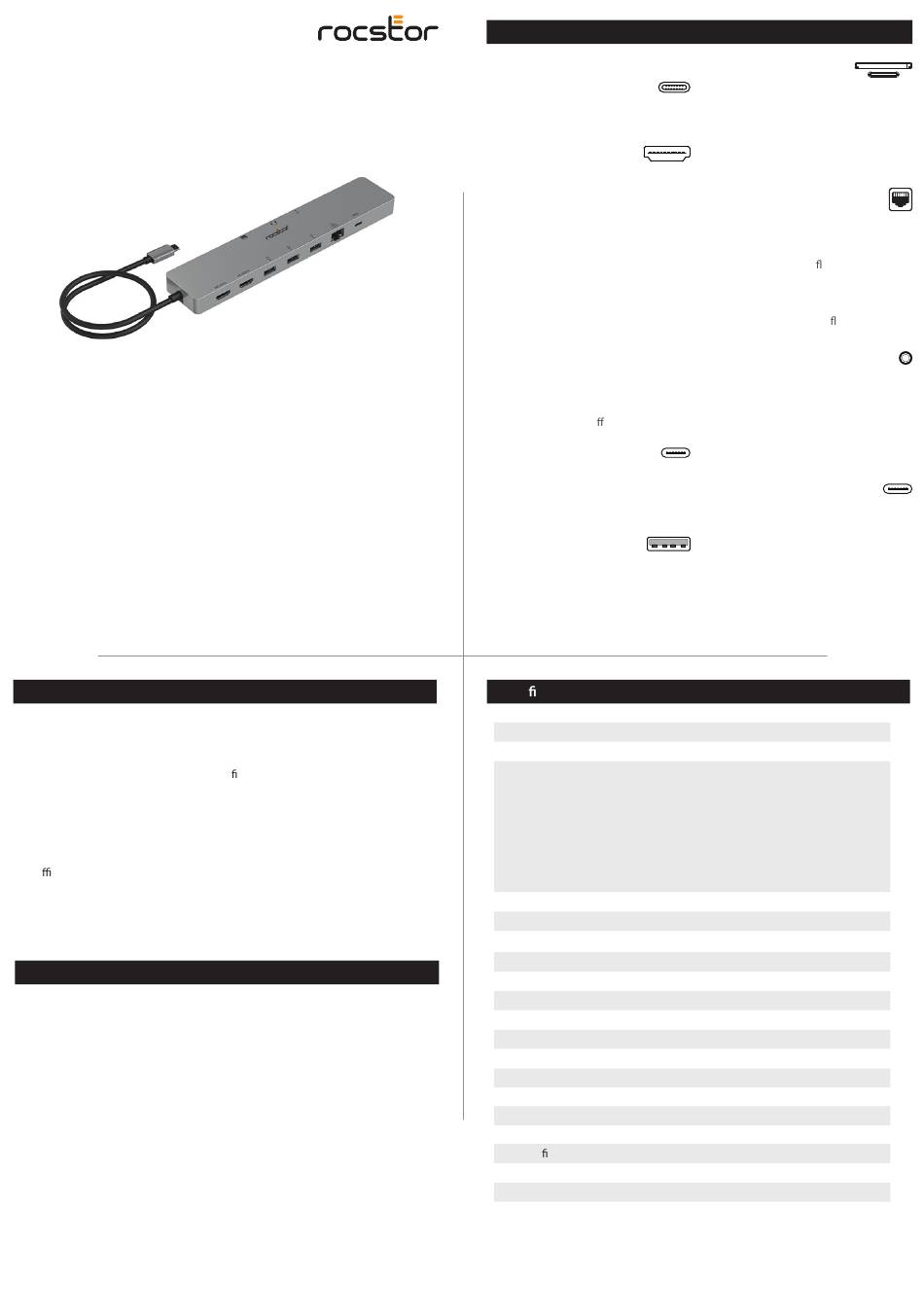

Rocstor Y10P028-S1 User Manual

User Manual
USB-C 11-in-1 Dual Display Portable Dock
with DP 1.4 Alt Mode
Congratulations
Thank you for purchasing this premium Rocstor product. For optimum performance and
safety, please read these instructions carefully before connecting, operating or using this
product. Please keep this manual for future reference.
Introduction
Rocstor introduces the Type-C 11-in-1 Portable Dock, a comprehensive solution
featuring 2 HDMI ports, 3 USB-A ports, SD/TF card slots, Ethernet connectivity, audio
support, Type-C data transfer, and Type-C PD charging capability. Designed to
seamlessly extend the port options of Type-C or Thunderbolt hosts such as PCs,
laptops, and mobile phones, especially bene cial for devices with a single Type-C port.
Equipped with DP1.4 Alt mode supported IC, enabling HDMI video output up to
8k/30Hz while simultaneously transferring USB 3.1 data at speeds of up to 5Gbps.
Connect up to 4 USB devices concurrently with the 3 USB-A and Type-C data ports.
Easily access data with the SD and TF card slots. Enjoy music through the 3.5mm audio
port. The Type-C PD Charging port supports PD3.0 with a maximum power supply of
100W. Compatible with all DP Alt mode supported Type-C hosts, ensuring versatility
and e ciency.
Package Contents
Before attempting to use this unit, please check the packaging and make sure the
following items are contained in the packaging:
• Main Unit x1
• User Manual
Y10P028-S1
®
Features
Upstream:
Type-C Male X1 Host Computer
• Support DP1.4 Alt mode
Downstream:
HDMI X2
• The HDMI port close to Type-C male
supports max 8K/30Hz, another one
supports max 4K/60Hz
• Supports Dual 4K/30Hz simultaneously
under MST mode
• Supports Dual 4K/60Hz simultaneously
under SST mode
• Supports High Dynamic Range(HDR)
• Supports multiple color formats: RGB;
YCbCr4:4:4; YCbCr4:2:2; YCbCr4:2:0
8/10/12bpc
•Supports HDCP2.3&1.4
Note: 1. The actual output resolution of
the product is determined by the host
and the display together. 2. The product
worked on some hosts that support
DP1.4&DSC can output dual 4K/60Hz
simultaneously with di erent pictures
Type-C Data X1 Close to USB-A
• Max 5Gbps data transmission
• Max 900mA downstream charging
• Supports short-circuit, over-current,
over-voltage protection
USB-A X3
• Max 5Gbps data transmission per port
• Max 900mA downstream charging per port
• Supports short-circuit, over-current,
over-voltage protection
• The Type-C data port and 3 USB-A Ports
share max 12W
Speci cation
Input / Output Connector
Input
Output
Physical
Weight Operating Temperature
Size
Warranty
Limited Warranty
Environmental
Operating Temperature Operating Temperature
Operating Humidity
Storage Temperature
Storage Humidity
Power Supply
Type-C PD Charging
Regulatory Approvals
Certi cations
Accessory Adapter
User Manual
SD4.0 / TF3.0 X1
• TF card slot supports UHS-I up to
104MBps data rate
• SD card slot supports UHS-II up to
312MBps data rate
• Allow 2 card slots to work simultaneously
• TF card slot is equipped with press
self-spring device
RJ45 X1
• Supports Gigabit Ethernet,
10M/100M/1000M
• Supports Wake-On-LAN
• Supports full duplex ow control
• Light indicates the state, no light when
no Internet connected, orange light
turns on when network connection is
established, green light ashes when
transmitting data.
3.5mm Audio Port X1
• DAC supports 44.1/48/96KHz Sample
Rate, 16/24-bit
• ADC input supports 44.1/48KHz Sample
Rate, 16bit
• Support CTIA&OMTP auto detection
• Support voice adjustment function
when connected to original headset
Type-C PD Charging X1
• Supports max 100W PD charging
• Supports PD3.0 Fast Role Swap, the
connected device will not get
disconnected while plugging in and out
PD Adapter
• Supports smart power which allows to
distribute power according to actual
consumption of the connected devices,
making full use of supplied power, the
host can get power ranging from 82w to 96w
Type-C Male x1
HDMI x2
Type-C Data x1
USB-A x3
SD/TF x1
RJ45 x1
3.5mm Audio port x1
Type-C PD Charging x1
0°C to 45°C (32°F to 113°F) 6.5lbs - (186g)
8.6x1.5x0.6in - (220x40x16mm)
3 Years
0°C to 45°C (32°F to 113°F)
10% to 90% RH (no condensation)
-10°C to 70°C (14°F to 158°F)
10% to 90 % RH (no condensation)
Max 100W
FCC, CE
