Summary of Contents for Reolink K50
- Page 1 K50 Smart Wi-Fi Doorbell Camera Scan the code to view the user manual User Manual 1.0 - USB Version...

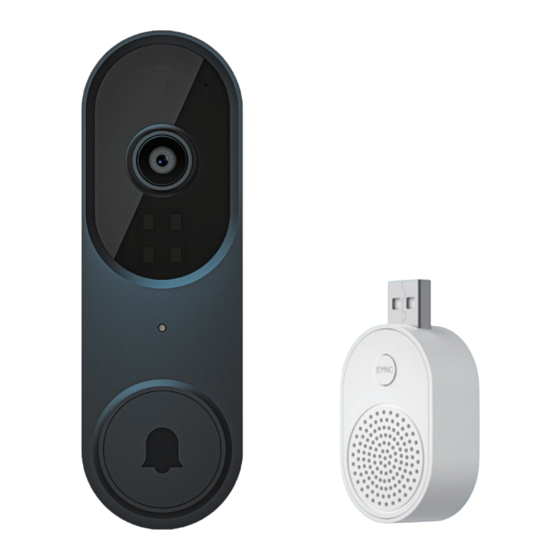

- Page 2 Features 1. Wide-angle Lens 4. Microphone 2. Indicator Light 5. Infrared Lights 3. Speaker 6. Doorbell Button In the box 1080p Doorbell Camera Mounting Bracket Removal Tool User Manual Wireless Chime...
-
Page 3: Indicator Light
Indicator light Indicator Light Flashing WHITE The device is disconnected from Wi-Fi. It will attempt to reconnect automatically. If it fails, please reset the device and pair it again in the app. Solid WHITE The device is recording. Setup requirement Standard doorbell system or transformer with 7-24 VAC, 40VA max, 50/60Hz or 7-24VDC, 0.5A, 12W... - Page 4 Install your doorbell Turn off power to your doorbell at the breaker. Remove your existing doorbell button. Remove the mounting bracket by inserting the mounting bracket removal tool into the hole at the top of the doorbell. Push in until the bracket slides off.
- Page 5 Position the mounting bracket on the wall, threading the wires through the hole in the center. If you’re installing your doorbell on a masonry surface like brick or concrete, you'll need to drill holes for the provided anchors. If you’re installing on wood or siding, you don’t need the anchors, so you can skip the step.
- Page 6 Connect the doorbell wires to your doorbell. Loosen both screws on the back of the doorbell. Wrap the wires behind the screws and then screw them tight. It doesn’t matter which wire connects to which screw as long as both wires have a secure connection and they aren't touching each other.
- Page 7 Snap the doorbell onto the mounting bracket by slotting it in at the bottom and then clicking it into locate. Turn the power back on at the breaker. You'll know the doorbell is properly wired when the indicator light turns on. Create an account in the app Scan the QR code provided or search for app in the Apple App Store or Google Play.
- Page 8 Enter your email address, set a password, and tap Sign up. Welcome Sign up Email Address Confirm Email Address Password Sign up Login After activating your account with the email link, log in to the app using your email and password. We have sent an email to xxxxxxxxx@xxx.com.Open you email and tap the link to verify.
- Page 9 Set up your Doorbell in the app Open the app and sign in to your account. To add your camera, tap the Add device icon (+). Choose Video Doorbell and then select the K50 model. Select Device Video Doorbell Press and hold the doorbell button until the red light starts flashing.
- Page 10 Set up your wireless chime Connect the doorbell camera to the wireless chime and receive an instant alert in your home when someone rings the doorbell. The chime plugs into any USB port, allowing you to position it anywhere in your home. Wireless Chime Pairing Button Plug the chime into a USB port and press the...
- Page 11 Set up your wireless chime Press the doorbell button to pair it with the chime. Press the doorbell button Press the doorbell button again to verify that the chime and doorbell are working properly. Please note that the volume of the chime is not adjustable.
-
Page 12: Frequently Asked Questions
Frequently asked questions 1. How can I share the device with family members? Open the app and tap on Settings. From there, you can share the device via QR code or email, and even transfer ownership of the device. The new user must first download the app and create their own account. - Page 13 6. Why is the device offline? The camera being offline means it is disconnected. There could be a few reasons for this: The camera has run out of power. You will need to recharge it. The Wi-Fi signal is weak, causing disconnection. Please improve your Wi-Fi signal and reconnect the device.
- Page 14 If the areas you're monitoring experience excessive or repetitive motions, like children playing in the yard, you may receive numerous alerts, which can rapidly deplete the battery of devices. The human detection accuracy settings are designed to help you receive the notifications you want while preserving battery life.
- Page 15 Contact us If you require further assistance, feel free to reach out to service@seeing.store our support team. Email us at or use the app's support feature. Please include your product's model and the retailer's name. Thank you. [图片]...
-
Page 16: Fcc Statement
FCC Statement Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
