Hardware
1/2" X 4" Flat Head Screw
1/2" Lock Nut
(Part# TZ28)

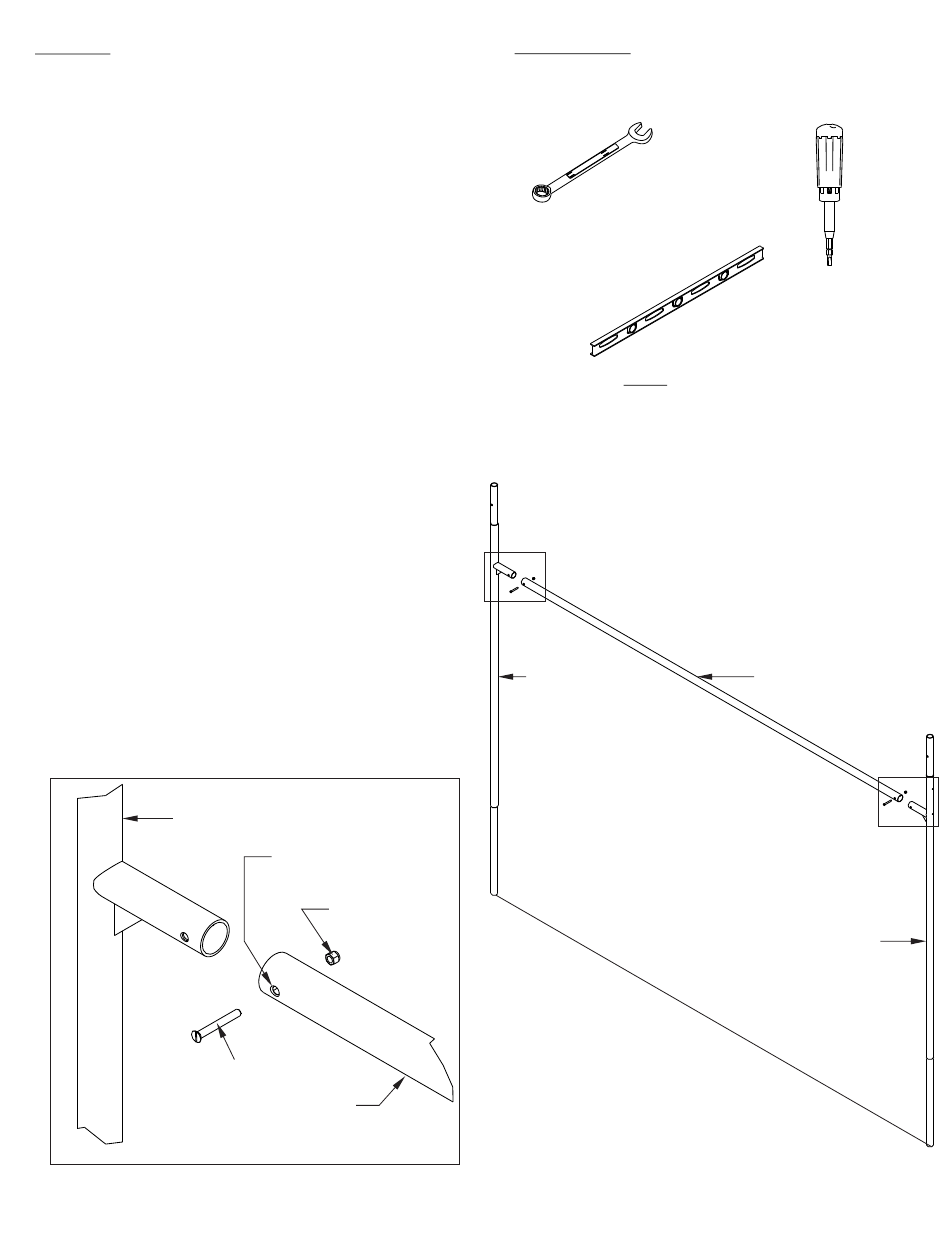

5. Assemble posts and crossbar, using 1/2" flat head screws and lock nuts. NOTE: countersunk holes in
crossbar indicate front face of crossbar. (This side must face playing field.)
Post
1/2" x 4" Flat Head Screw
4
(Part# TZ218)
4
Countersunk Hole
1/2" Lock Nut
Crossbar
Assembly Tools
3/4" Wrench
6' Level
Post
Playing Field
Flat Head Screwdriver
Crossbar
Post
