Summary of Contents for Ryobi RFN1830X

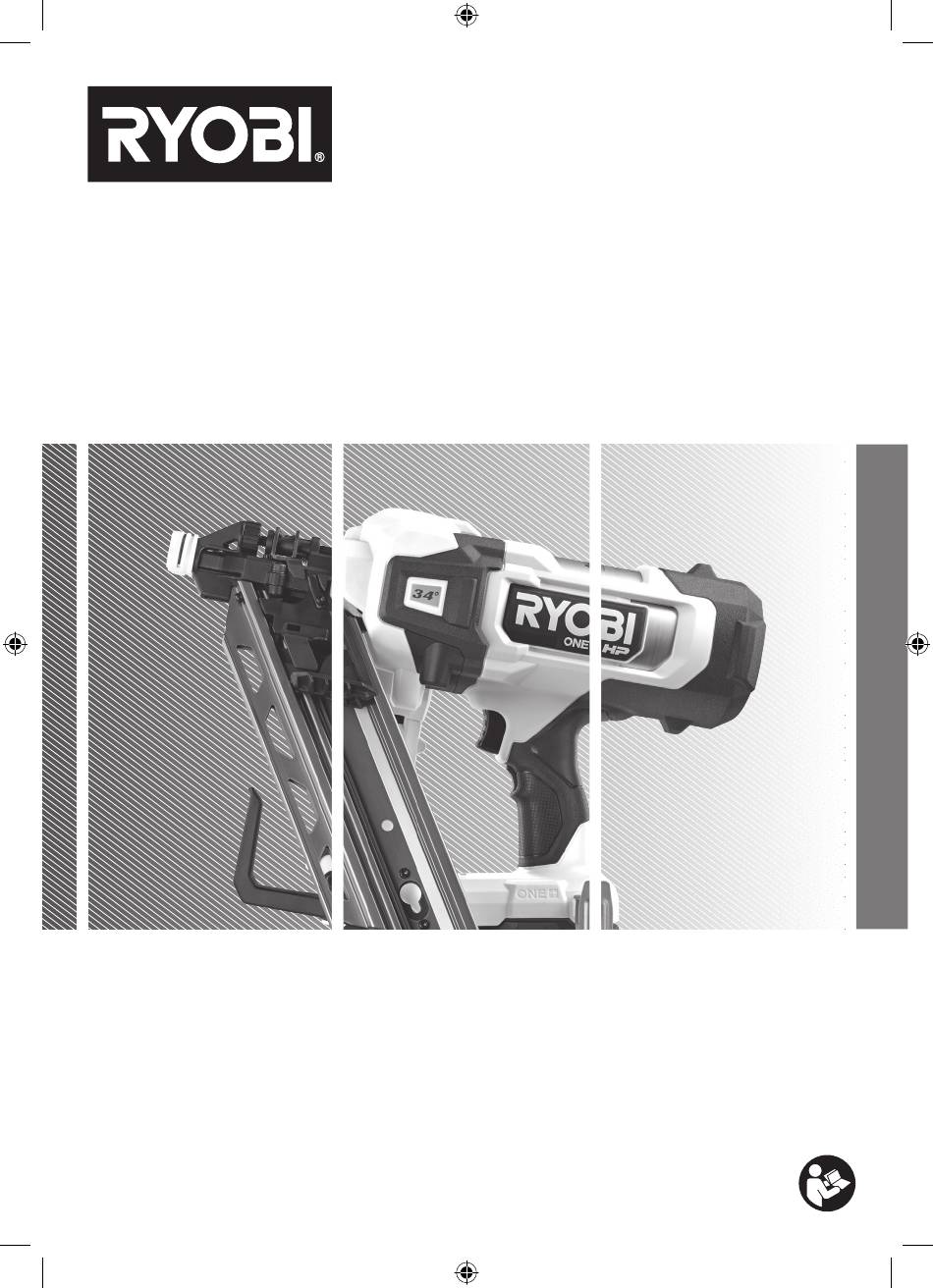

  • Page 1 FRONT PAGE RFN1830X...

  • Page 2: Intended Use

    cord suitable for outdoor use reduces the risk of electric IMPORTANT! shock. It is essential that you read the instructions in this manual If operating a power tool in a damp location is ■ before assembling, operating, and maintaining the product. unavoidable, use a residual current device (RCD) Subject to technical modifications.

  • Page 3: Nailer Safety Warnings

    users. NAILER SAFETY WARNINGS ■ Maintain power tools and accessories. Check for Always assume that the tool contains fasteners. ■ misalignment or binding of moving parts, breakage Careless handling of the nailer can result in unexpected of parts and any other condition that may affect the firing of fasteners and personal injury.

  • Page 4: Transporting Lithium Batteries

    fasteners which could cause injury. PRODUCT FEATURES ■ Always check the work area for hidden wiring, gas lines, water lines, etc., before using the product on such work AUTO SWITCHING OFF area. The nailer will automatically switch off after 10 seconds of ■...

  • Page 5: Periodic Inspection

    CLEANING THE PRODUCT Do not dispose of waste batteries, waste electrical and electronic equipment as Clean the nailer after driving 3000 nails, or refer to the unsorted municipal waste. following table for minimum cleaning intervals. Waste batteries and waste electrical and electronic equipment must be collected Environmental conditions Cleaning intervals...
  • Page 6 No-mar pad Toothed nose piece Depth-of-drive adjustment Jam-clearing mechanism LED light Pusher Switch trigger Grip switch Handle, insulated gripping surface Belt clip screw hole Battery port Rear loading magazine Hex key No-mar pad storage Rafter hook Nails Belt clip Belt clip screw Scan the QR codes for product support Operator’s manual and more information.
  • Page 7 Align belt clip and screw with the screw With the nose of the tool pointed away Release the pusher and allow it to push hole. Using a Torx head screwdriver from you, feed a strip of nails into the the nails up to the driving mechanism. (not included), tighten securely.

  • Page 8: Depth Of Drive Adjustment

    DEPTH OF DRIVE ADJUSTMENT 1. Remove the battery pack from the product. 2. Turn the depth selector left or right to change the driving depth. 3. Install the battery pack into the battery port. WARNING! Keep the product pointed away from yourself and others. Failure to do so could result in possible serious personal injury.
  • Page 9 USING THE NAILER WITH TOOTHED NOSE The toothed nose is used for toe nailing, where the nailer is angled to the surface. The teeth bite into the material to stop the nailer from slipping when driving a nail at an angle into the material.
  • Page 10 R18PI REFILLING THE AIR PRESSURE TANK The nailer may require refilling every 6-12 months or after firing 20000 nails. Use an inflator or air compressor. The required air pressure is 125 psi / 8.2 bar. 1. Remove the battery pack and fasteners from the product.

  • Page 11: Clearing A Jammed Fastener

    CLEARING A JAMMED FASTENER 1. If a jam occurs, the product will automatically enter a jam mode and reset the driver blade. The LED, located on the rear base of the nailer, will flash red. Remove the battery from the product. Check to ensure that the product is free from a jammed fastener.
  • Page 12 Maintenance...

  • Page 13: Storing The Product

    REMOVING FASTENERS 1. Slide the pusher all the way to the rear of the magazine. 2. Tip the product backward to slide the fasteners out from the magazine. STORING THE PRODUCT Remove the battery pack from the product. Store the product in a cool, dry place, out of the reach of children.

  • Page 14: Troubleshooting

    Take the product to the nearest authorised work lights flash slowly. repair centre. PRODUCT SPECIFICATIONS BATTERY Nailer Compatible battery pack (not included) RB18L13 RB18L25 RB18L60A RB1840X Model RFN1830X RB18L15 RB18L25A RB18L90A RB1850C Voltage 18 V RB18L15A RB18L40 RB1815C RB1850X RB18L15B...
  • Page 16 Techtronic Industries Australia Pty Ltd 31 Gilby Road, Mount Waverley, VIC 3149 Melbourne, Australia Techtronic Industries N.Z. Limited Unit C, 70 Business Parade South, Highbrook, Auckland 2013, New Zealand RYOBI is a trade mark of Ryobi Limited, and is used under license. 961001830-02...
