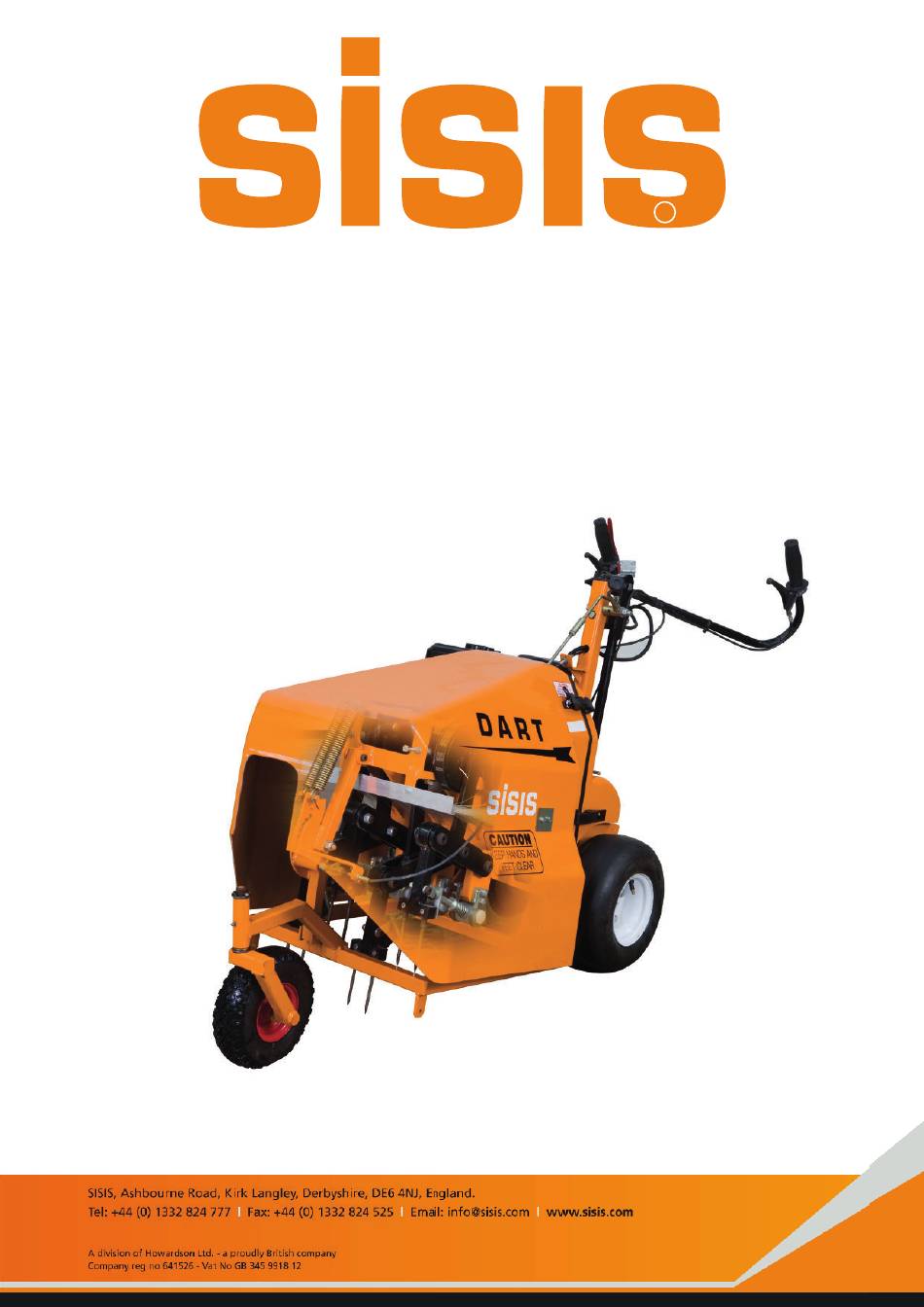

- Page 1 DART INSTRUCTION MANUAL SP20015_REV_0 10/12...
-
Page 2: Declaration Of Conformity
ENGINE SERIAL NUMBER Introduction The reliability and quality of performance of the SISIS DART depends upon some simple care maintenance carried out regularly. This manual has been prepared to allow the user to carry out all such work. It is advisable to read the instructions carefully. Proper care and attention will enable the machine to give a continuous, satisfactory, and reliable service. -
Page 3: Table Of Contents
Important Safety Instructions ............................3 - 4 Operating Instructions ................................5 Routine Maintenance................................6 Tines ..................................... 7 Parts Listings ................................. 8 - 12 Notes ....................................13 Technical Data Model DART Width (mm) Length (mm) 1550 Height (mm) 1180 Weight (Kg) Working Width (mm) 16”... -
Page 4: Important Safety Instructions
TRAINING READ THE INSTRUCTIONS CONTAINED IN THIS MANUAL WITH CARE. IF YOU ARE IN CAUTION ANY DOUBT PLEASE ASK YOUR EMPLOYER OR CONTACT US DIRECT AT SISIS. • Be familiar with the controls and the proper use of the equipment. -
Page 5: Operating Instructions
SISIS direct or your local SISIS Territory Manager or SISIS Dealer. OPERATING PRINCIPAL The SISIS DART is an engine driven vertical aerator for use on fine turf areas such as bowling greens, tennis courts and all areas of fine turf. -
Page 6: Routine Maintenance
Looking from the front of the machine, the right hand cam should be at 12 o’clock. The left hand cam should be at 15 minutes past the hour. (See Image below) 15 minutes past 12 o’clock FOR ENGINE MAINTENANCE SEE MANUFACTURERS HAND BOOK WHICH IS SUPPLIED WITH THE MACHINE DART SEPT ‘12... -
Page 7: Tines
NOTE TINE SPACING = 50MM The following Tines are available for use with the Dart. Maximum depth for all tines is 100mm CHISEL TINES - REF. 2109 These encourage new root growth and permit the entry of fertilisers and dressing. -
Page 8: Parts Listings
A.V. Mount F21928 Thrust Bearing F22019 Handle Grip F22281 Clutch Lever F22321 Clip F22432 Shoulder Bolt 12 x 20 M10 F36000 Name Plate SISIS F36320 Back Frame F36351 Washer F36369 Rear Guard F36474 Barrel Nut F36502 Bottom Brush F36669 Rear Guard Strip... - Page 9 Hex Set Screw M16 x 30 SP01045 Hex Set Screw M8 x 25 SP01119 Hex Bolt M10 x 75 (8.8 HT) SP01120 Cap Head M12 x 35 SP02004 Nut M6 Nyloc SP02006 Nut M8 Nyloc (T) SP02008 Nut M10 Nyloc (T) DART SEPT ‘12...
- Page 10 Oilite F21989 Pulley Assembly F33607 Wheel Hub F36340 Duel Sprocket F36345 Pully & Sprocket F36346 Spacer F36375 50T Plate Sprocket F36510 Drive Lever F37184 Top Mount F37284 Over Centre Rod F37285 J20406 Split Pin 3/32” x 1” DART SEPT ‘12...
- Page 11 Guard Front F37278 Guard Rear F36525 Guard Bracket F36526 Guard Washer E1/1096 Setscrew D8774 CSK Setscrew E1/1217 Nyloc Nut E1/1061 Spring Washer F36403 DART Decal LH F36412 DART Decal RH D4098 Union Jack Decal F36332 SISIS Decal DART SEPT ‘12...
- Page 12 Description Quantity D4098 Union Jack Decal 33384 Engine Caution Decal 36402 Depth Adjustment Decal 36405 Forward Arrow Decal F36412 DART Decal RH F36403 DART Decal LH 36404 Tine Drive Decal 36406 Depth Gauge Decal F36332 SISIS Decal DART SEPT ‘12...
-
Page 13: Notes
Notes DART SEPT ‘12...
