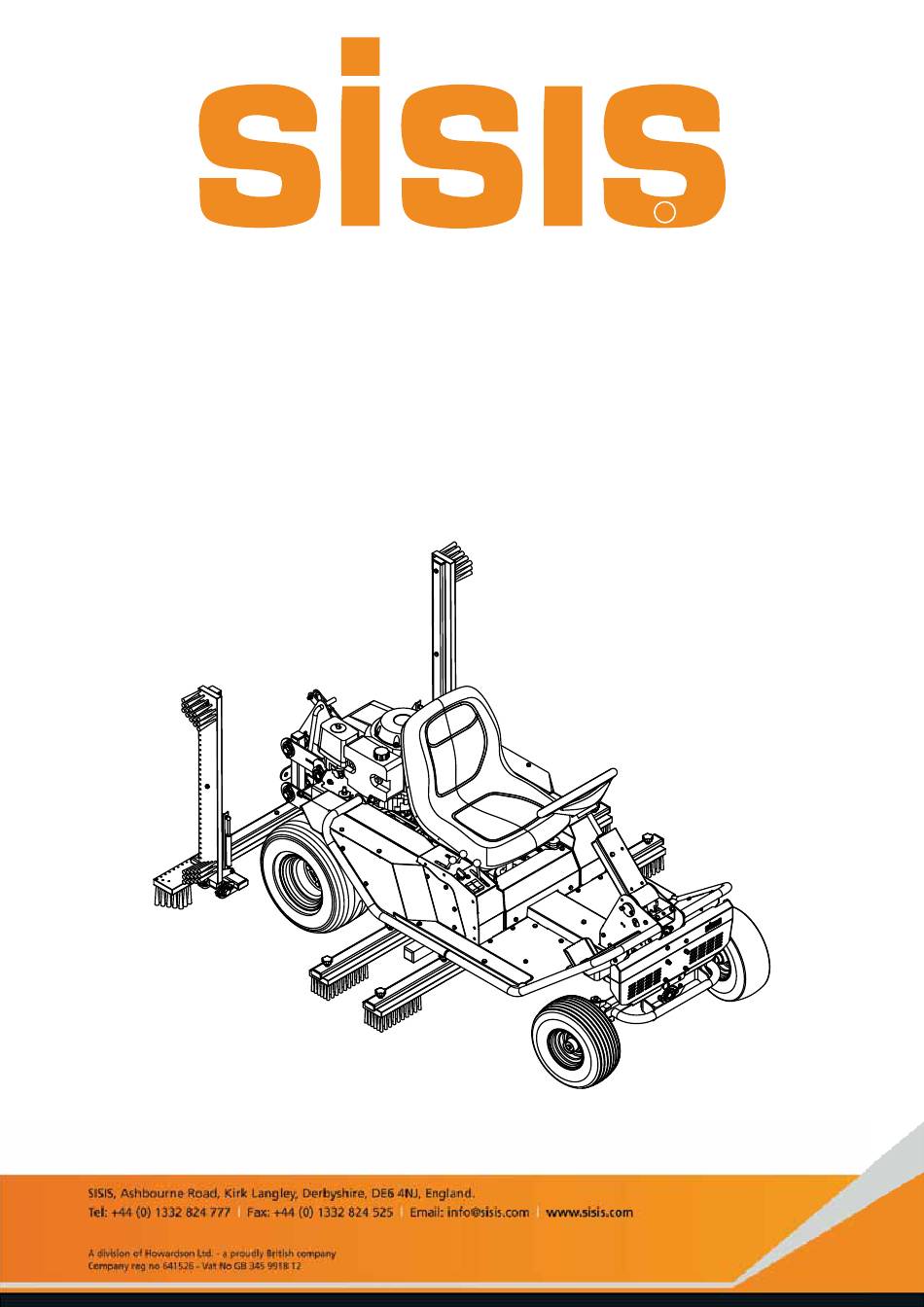

- Page 1 BRUSH-PRO RIDE-ON BRUSH SYSTEM INSTRUCTION MANUAL SP20017_REV_1 02/15...
-
Page 2: Certificate Of Conformity
For the BRUSH-PRO, this is to be found on a plate attached to the side frame. The engine number is stamped on either the crank case or the gear casing facing towards the front of the machine. We suggest you write the numbers on the front page of this book. -
Page 3: Table Of Contents
Important Safety Instructions ..............................5 Operating Instructions ..............................6 - 7 Parts Listings ................................. 8 - 13 Technical Data Model Brush-Pro A - Width (M) B - Length (M) C - Height (M) D - Width - Brushes Down (mm) -
Page 4: Machine Description
7.6 kW (10.2 Hp) air cooled 4-stroke single cylinder engine. The Brush-Pro has 2 mid mounted oscillating brushes and a rear drag brush, both sets are lifted and lowered by electrically operated rams and which also allow for any increase in ground clearance. The centre brushes oscillate to loosen the infill and the rear drag brushes follow to settle and finish the infill. -
Page 5: Important Safety Instructions
• Be familiar with the controls and the proper use of the equipment. • Never allow children or people unfamiliar with these instructions to use the Brush-Pro. Local regulations or insurance may restrict the age of the operator. • Keep in mind that the operator or user is responsible for accidents or hazards occurring to other people or their property. -
Page 6: Operating Instructions
OPERATING INSTRUCTIONS Figure 6 Before operating the Brush-Pro ensure the drive enage lever is pushed in fully to disenage the rear drive axle (See Figure 1). This allows safe starting of the motor whether the user is seated or standing at the side of the machine. The engine will not start if the operator is unseated with the drive engage lever in the enaged position, fully out. - Page 7 Figure 8 BELT TENSIONING The Brush-Pro uses two tensioning cables for the engagement of the belt drive and rear hydrostatic axle brake. Remove the right side cover to get access to the tensioning nuts for tension adjustment (See Figure 8).
-
Page 8: Parts Listings
SP01028 Hex Set Screw M6 x 20 SP01129 Cap Head M12 x 65 SP01122 Rod M10 x 50 SP02004 Nut M6 Nyloc SP02006 Nut M8 Nyloc (T) SP02008 Nut M10 Nyloc (T) SP02010 Nut M12 Nyloc (T) BRUSH-PRO FEB ‘15... - Page 9 Belt Tensioner Cable Brush Pro 401362 Side Panel Angled LH SP14016 Clamp Throttle Cable 401363 Side Panel Cover SP18006 Decal Brush-Pro 401364 Side Panel Cover LH SP18007 Decal SISIS Black 401423 Panel Outer LH SP18008 Decal Brake Brush Brush Pro...
- Page 10 Bush Oilite Al1218 SP01009 Hex Set Screw M8 x 20 SP01045 Hex Set Screw M8 x 25 SP02006 Nut M8 Nyloc (T) SP02044 Rivnut Hex M8 (0.5-3.0) [No Head] SP03008 Washer M8 Form A SP03015 Washer M8 Form C BRUSH-PRO FEB ‘15...
- Page 11 Nut M8 Nyloc (T) SP02028 Nut M16 Nyloc (T) SP03008 Washer M8 Form A SP12032 Connector Bulgin Skt 2W SP12033 Chassis Connector Bulgin Pin 2W SP12034 Pin Contact 2W Bulgin Soldered SP12035 Socket Contact 2W Bulgin Soldered BRUSH-PRO FEB ‘15...
- Page 12 Caphead M8 x 25 F21706 Ball Joint F21739 Bobbin M8 Rubber F22396 Oilite Bush 25 x 30 x 25 Flanged J20052 Bearing 6204-2RS 3 SP01009 Hex Set Screw M8 x 20 SP01015 Hex Set Screw M6 x 25 BRUSH-PRO FEB ‘15...
- Page 13 Reservoir F21623 Jubilee Clip 1A F22358 Seat F21706 Ball Joint F20783 Wheel Assembly (Smooth) SP09004 Wheel Assembly (Treaded) F21774 Belt V 1EJ Cotton A50 1300 F21784 Key 8 x 7 x 30 F22269A Connector F21922 Vibration Mount BRUSH-PRO FEB ‘15...
