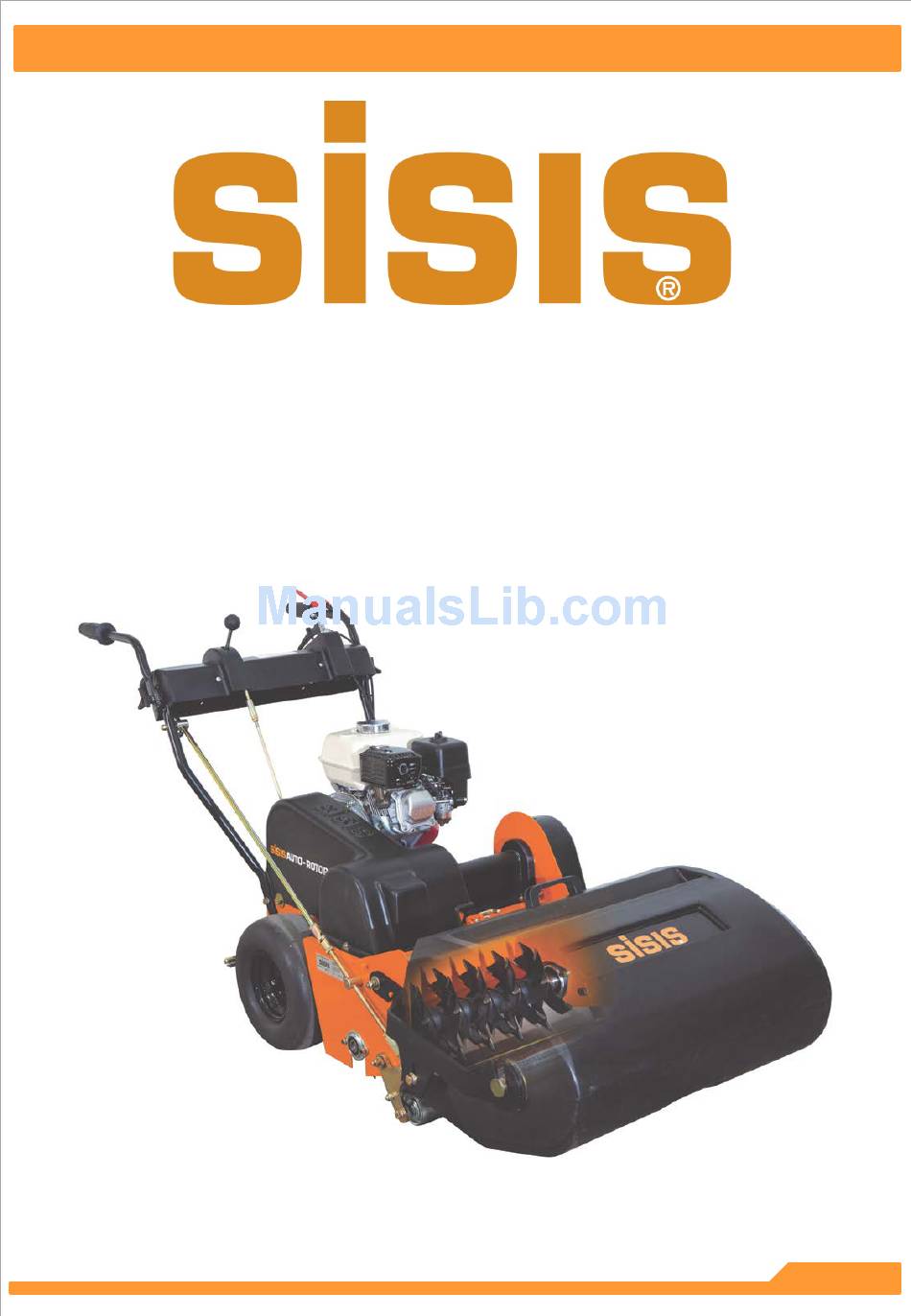

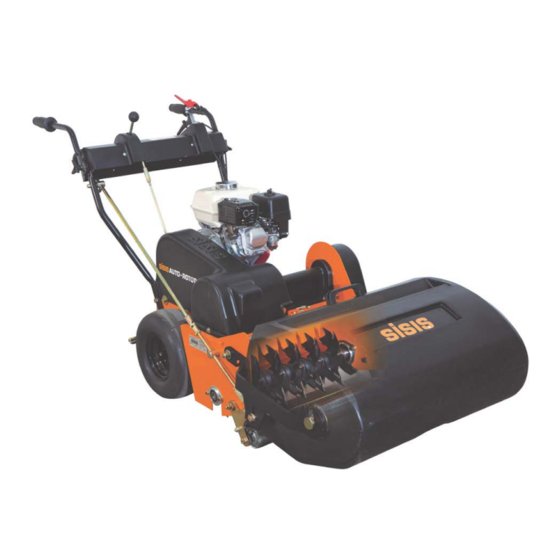

AUTO-ROTORAKE Mk.5
INSTRUCTION MANUAL
SP20008_REV3
MAY 2018

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AUTO-ROTORAKE Mk.5 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Sisis AUTO-ROTORAKE Mk.5

Summary of Contents for Sisis AUTO-ROTORAKE Mk.5

  • Page 1 AUTO-ROTORAKE Mk.5 INSTRUCTION MANUAL SP20008_REV3 MAY 2018...

  • Page 2: Serial Numbers

    ENGINE SERIAL NUMBER INTRODUCTION The reliability and quality of performance of the SISIS Auto-rotorake depends upon some simple care maintenance carried out regularly. This manual has been prepared to allow the user to carry out all such work. It is advisable to read the instructions carefully. Proper care and attention will enable the machine to give a continuous, satisfactory, and reliable service.

  • Page 3: Table Of Contents

    Operating Instructions............................... 5 - 6 Reels...................................... 7 Maintenance and Lubrication............................8 - 9 Oiling Points..................................10 Parts Listings................................P0 - P12 TECHNICAL DATA MODEL AUTO-ROTORAKE MK.5 WIDTH (mm) LENGTH WITH GRASS BOX (mm) 1850 LENGTH WITHOUT GRASS BOX (mm) 1450 HEIGHT (mm)

  • Page 4: Important Safety Instructions

    CAUTION READ THE INSTRUCTIONS CONTAINED IN THIS MANUAL WITH CARE. IF YOU ARE IN ANY DOUBT PLEASE ASK YOUR EMPLOYER OR CONTACT US DIRECT AT SISIS. CAUTION • Be familiar with the controls and the proper use of the equipment.

  • Page 5: Operating Instructions

    COMMENCING WORK. We want you to obtain the best performance from this machine. If you have any difficulty in carrying out the following instructions please contact SISIS direct or your local SISIS Territory Manager or SISIS Dealer. OPERATING PRINCIPAL Power from the engine is transmitted through a vee belt clutch mechanism. One belt powers the tine reel through a cross shaft with a final chain drive.

  • Page 6: Operating Instructions

    OPERATING INSTRUCTIONS SISIS CONTRA-ROTATION PRINCIPLE The Rotorake principle incorporates a series of blades rotating at high speed in the opposite direction to that of the conventional cylinder mower. The blades therefore cut upwards, continuously taking grass fibre away from the surface rather than pushing it into the surface of the turf.

  • Page 7: Reels

    REELS 1MM LIGHT SCARIFYING REEL – Order reference number: FS1098 1mm replaceable, wear resistant tungsten tipped blades (12mm spacing) can be used throughout the season. 1.6MM SCARIFYING/THATCH REMOVAL REEL – Order reference number: FS1093 1.6mm replaceable, wear resistant tungsten tipped blades (20mm spacing).

  • Page 8: Maintenance And Lubrication

    MAINTENANCE & LUBRICATION CAUTION ALWAYS SWITCH OFF THE ENGINE BEFORE ATTEMPTING ANY MACHINE MAINTENANCE WORK. REPLACING BLADES NOTE CARRY OUT THE PROCEDURE FOR REMOVING THE REELS. FOR CONVEINIENCE PLACE THE REEL ON A BENCH WHN WORKING ON IT. THATCH REMOVAL REEL reference ARR5/TR THATCH CONTROL REEL reference ARR5/TCR Remove the washer and split pin at the end of the reel (opposite end to which the bearing is fitted) and strip off the knives and rubber spacers.

  • Page 9: Maintenance And Lubrication

    MAINTENANCE & LUBRICATION CAUTION ALWAYS SWITCH OFF THE ENGINE BEFORE ATTEMPTING ANY MACHINE MAINTENANCE WORK. FITTING NEW REEL DRIVE V BELTS Ensure engine is switched off and key is removed. Remove covers(2 top and 1 side). Slacken engine bolts and move engine forward.

  • Page 10: Oiling Points

    OILING POINTS NOTE ENSURE THAT THE ENGINE IS FILLED TO THE CORRECT LEVEL WITH THE RECOMMENDED GRADE OF OIL. ALWAYS CHECK THE OIL WITH THE ENGINE LEVEL. = OIL EVERY 10 WORKING HOURS = OIL EVERY 40 WORKING HOURS = GREASE EVERY 40 WORKING HOURS SP20008_REV3 MAY 2018...
  • Page 11 AUTO ROTORAKE MK5 POWER UNIT - PARTS BOOK SP20008_REV3 MAY 2018...
  • Page 12 CHASSIS, ENGINE AND DRIVE SYSTEM REF: 2.01 REF: 3.01 P1.01 SP20008_REV3 MAY 2018...
  • Page 13 CHASSIS 15 21 2 22 SECTION VIEW 13 5 23 14 19 19 18 NOTE: SOME PARTS OMITTED FOR CLARITY ITEM NO. PART NUMBER DESCRIPTION CHASSIS/QTY. 400996_REV1 FLAP HINGE D1899_REV1 R-CLIP (REF S490009) D7982_REV1 GEAR COVER D8056_REV1 CIRCLIP D1400 - 015 E1-1060_REV0 M5 SPRING WASHER F22132_REV1...
  • Page 14 DRIVE SYSTEM 37 44 44 42 41 44 44 42 41 44 44 42 37 44 44 42 39 45 45 43 37 46 44 CONTINUED ON P3.02 P3.01 SP20008_REV3 MAY 2018...
  • Page 15 DRIVE SYSTEM 37 44 44 42 39 CONTINUED ON P3.03 P3.02 SP20008_REV3 MAY 2018...
  • Page 16 DRIVE SYSTEM ITEM NO. PART NUMBER DESCRIPTION DRIVE/QTY. 229829_REV1 CIRCLIP D1300 0280 229833_REV1 BUSH AL1622 - 20 D1558_REV1 CHAIN 77P X 1/2INCHESINCHES PITCH D1572_REV1 KEY PARRALLEL 3/16INCHESINCHES X 3/16INCHESINCHES X5/8I D1588_REV0 BEARING BPFL5-16 D1801_REV1 BELT 'V' A 42 1DB COTTON D1989_REV0 GRUB SCREW M6 X 10 D2924_REV2...
  • Page 17 ENGINE DETAIL ITEM NO. PART NUMBER DESCRIPTION ENGINE /QTY. F22464_REV1 ENGINE 5.5 HP HONDA GX160 L F37161_REV2 BELT GUIDE PEG J209050_REV1 FIXING PLATE ASSY SP01009_REV0 HEX SET SCREW M8 X 20 SP02006_REV0 NUT M8 NYLOC (T) SP03008_REV0 WASHER M8 FORM A SP03029_REV0 WASHER M8 SPRING LOCK P4.01...
  • Page 18 WHEELS 3 5 5 4 ITEM NO. PART NUMBER DESCRIPTION WHEELS/QTY. D5155_REV1 BUSH AI1618 - 3/4" F37135_REV3 WHEEL DETAIL SP01022_REV0 HEX SET SCREW M8 X 50 SP02006_REV0 NUT M8 NYLOC (T) SP03008_REV0 WASHER M8 FORM A P5.01 SP20008_REV3 MAY 2018...
  • Page 19 GUARDS AND COVERS 8 10 10 8 ITEM NO. PART NUMBER DESCRIPTION GUARDS/QTY. D3171-D7986_REV1 RUBBER GUARD SEAL D7986_REV2 CHAIN GUARD E1-5123_REV2 CHAIN GUARD STUD F33384_REV1 LABEL CAUTION F37047_REV3 BELT GUARD F37060_REV1 LABEL AUTO-ROTORAKE SP01009_REV0 HEX SET SCREW M8 X 20 SP02006_REV0 NUT M8 NYLOC (T) SP02045_REV0...
  • Page 20 GRASSBOX ARM L.H. 403078_REV0 GRASSBOX ARM R.H. 800519_REV0 ** GRASSBOX ASSEMBLY ROTORAKE E1-1065_REV0 SPRING WASHER M12 SQUARE SECTION F36332_REV0 DECAL SISIS WHITE 50MM HEIGHT SP01065_REV0 HEX SET SCREW M12 X 30 SP02007_REV0 NUT M10 STD SP02008_REV0 NUT M10 NYLOC (T) SP03012_REV0...
  • Page 21 PART NUMBER DESCRIPTION QTY. 290070_REV0 GRASS COLLECTOR 24" 290071_REV0 WASHER 16 X 100 X 3 290072_REV0 GRASSBOX PIVOT F36332_REV0 DECAL SISIS WHITE 50MM HEIGHT J209064_REV2 HANDLE PLATE GRASS BOX J209243_REV1 HANDLE GRASSBOX J249062_REV1 MESH J249063_REV1 24" GRASSBOX EDGING STRIP SP01028_REV0...
  • Page 22 FRONT ROLLER ASSEMBLY 19 24 22 23 20 17 24 22 ITEM NO. PART NUMBER DESCRIPTION FRONT ROLLER/QTY. 400971_REV0 FRAME ARM SPACER D1879_REV1 HANDWHEEL D7907_REV1 UNIVERSAL JOINT D7993_REV2 ADJUSTMENT ROD E1-1065_REV0 SPRING WASHER M12 SQUARE SECTION F21064_REV1 ROD END MJ-12-M-STS F32151_REV1 DEPTH ADJ SCREW F36680_REV3...
  • Page 23 LINKAGE 31 37 43 41 41 43 37 30 33 40 36 36 28 32 32 12 39 35 7 37 31 37 6 29 11 9 8 CONTINUED ON P9.02 P9.01 SP20008_REV3 MAY 2018...
  • Page 24 LINKAGE CONTINUED ITEM NO. PART NUMBER DESCRIPTION LINKAGE/QTY. 400998_REV0 SPACER ENGINE FLANGE 401874_REV0 PULLEY BODY 19MM D8068_REV0 GRUB SCREW M6 X 6 D8165_REV0 KEY PARALLEL 6 X 6 X 25 D8275_REV1 BUSH AM1519 - 30 D8485_REV1 ROD END R108-M8. E1-1131_REV1 HEX SET SCREW M10 X 70 F20431_REV1 NUT M4 NYLOC...
  • Page 25 HANDLE BAR ASSEMBLY 26 3 10 30 21 4 8 28 CONTINUED ON P10.02 P10.01 SP20008_REV3 MAY 2018...
  • Page 26 HANDLE BAR ASSEMBLY ITEM NO. PART NUMBER DESCRIPTION HANDLE BARS/QTY. 176457_REV1 BLACK KNOB M10 229754_REV0 CLUTCH LEVER D1040_REV0 SPLIT PIN 3/32" X 3/4"" D6619_REV1 OVER CENTRE ROD D6620_REV1 LEVER D8271_REV1 THROTTLE CONTROL E1-1114_REV0 HEX BOLT M8 X 65 E1-1119_REV0 HEX SET SCREW M10 X 35 F20714_REV1 WING SCREW F21063_REV1...
  • Page 27 CABLES AND ELECTRICAL (ITEMS NOT SHOWN) ITEM NO. PART NUMBER DESCRIPTION WIRES/QTY. F37118_REV1 HARNESS MICRO SWITCH TO NUTRAL F37119_REV1 HARNESS KEY TO NUTRAL F37120_REV1 HARNESS KEY TO ENGINE F37121_REV1 HARNESS DEADMANS HANDLE TO ENGINE F37122_REV1 HARNESS DEADMANS HANDLE TO MICRO SWITCH F37166_REV5 CLUTCH CABLE F37379_REV2...
  • Page 28 TINE COMPRESSION TOOL ASSEMBLY ITEM NO. PART NUMBER DESCRIPTION QTY. D8757_REV0 CAP HEAD M10 X 25 F21868_REV0 8MM ALLEN KEY F36305_REV1 TINE COMPRESSION TOOL SP01061_REV0 CAP HEAD M10 X 80 FULL THREAD P12.01 SP20008_REV3 MAY 2018...
  • Page 29 NOTES SP20008_REV3 MAY 2018...
  • Page 30 SISIS, Ashbourne Road, Kirk Langley, Derbyshire, DE6 4NJ, England Tel: +44 (0) 1332 824 777 Fax: +44 (0) 1332 824 525 Email: info@sisis.com www.sisis.com A division of Howardson Ltd – a proudly British company Company reg No: 641526 – Vat No GB 345 9918 12...
